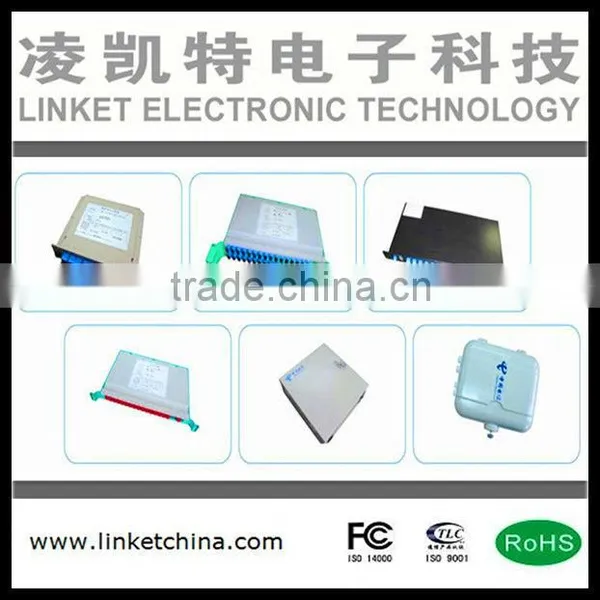

Passive Optical Splitter FTTH Solution With Different Packing
US$ 7 - 86
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LINKET
Model Number:
PLC Splitter Tray type
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzheng
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
LINKET
Model Number
PLC Splitter Tray type
Specifications
1 Low insertion loss, Low PDL and High reliability2 High return loss and Good repeatability
3 Wide wavelength range
1 Description
Planar Light wave Circuit (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and excellent channel-to-channel uniformity. As a result, it is widely used in PON networks to realize optical signal power splitting.
2 Applications:
---LAN, WAN and Metro Networks
---FTTH project & FTTX Deployments
---CATV System
---GPON, EPON
--- Fiber Optic Test Equipment
---Data-base Transmit Broadband Net
3 Technical Specs for PLC Splitter with Connector
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber Type | G.657.A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤23.8 |
| Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Fiber Type | G.657.A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.4 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.1 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤2.5 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB. | |||||||
4 Packaging Size for PLC Splitter Tray
| Item | Type of Connector | Length*Width*Height (mm) |
| 1×4 | SC | 130×100×25 |
| 1×8 | SC/LC | 130×100×25 |
| 1×16 | SC/LC | 130×100×50 |
| 1×32 | LC | 130×100×76 |
| Or 130×100×102 | ||
| 1×32 | SC | 130×100×102 |
| 1×64 | LC | 130×100×154 |
| Or 130×100×206 | ||
| 1×64 | SC | 130×100×206 |
| 1×128 | LC | 130×100×284 |
5 ISO 9001 Certificate and TLC Certificate for PLC Splitter

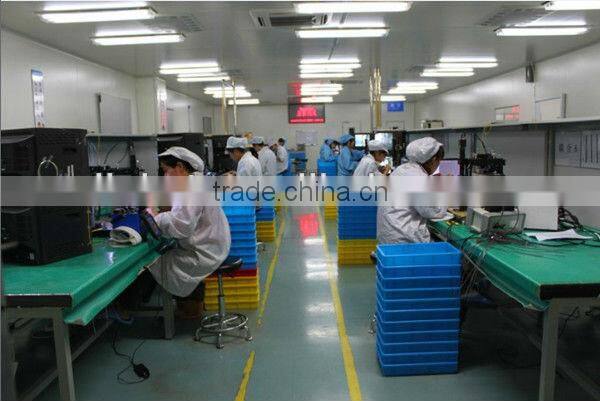

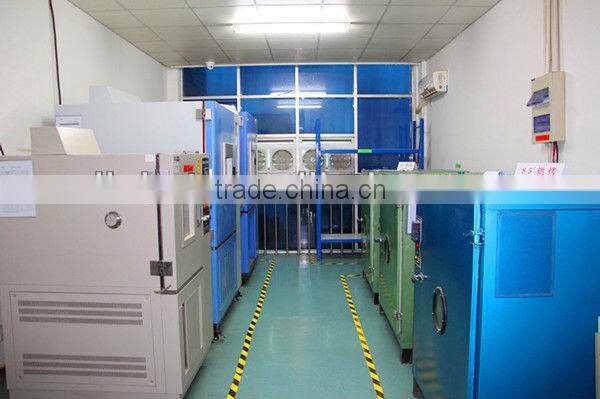

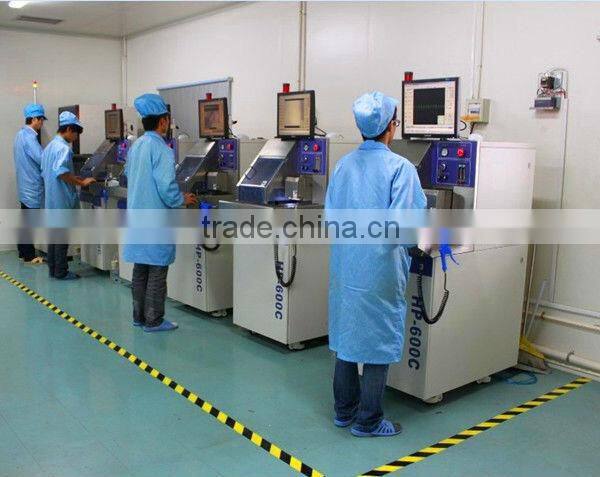

6 Workshop Overview
