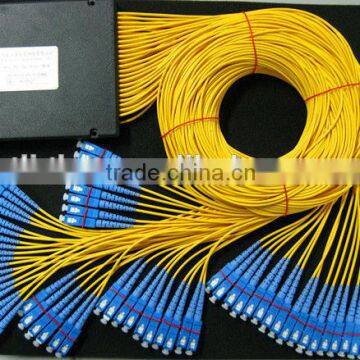

1. Features of 64 Way Passive Optical Splitter
-Low insertion loss, Low PDL and High reliability
-High return loss and Good repeatability
-Wide wavelength range
-Excellent channel-to-channel uniformity
2. Applications of 64 Way Passive Optical Splitter
-LAN,WAN and Metro Networks
-FTTH project & FTTX Deployments
-CATV System
-GPON,EPON
-Fiber Optic Test Equipment
-Data-base Transmit Broadband Net
3.Technical Specs for 64 Way Passive Optical Splitter
| Item | 1x64 |
| Fiber Type | G.657.A |
| Working Wavelength | 1260nm~1650nm |
| Standard Insertion Loss(dB) | ≤20.8 |
P-Grade Insertion Loss(dB) |
≤20.4 |
| Uniformity(dB) | ≤2.0 |
| PDL(dB) | ≤0.4 |
| Wavelength Dependent Loss(dB) | ≤2.0 |
| Return Loss(dB) | ≥50 |
| Directivity(dB) | ≥55 |
| Operating Temp.Gange | -40°C~+85°C |
4. Encapsulation Size for 64 Way Passive Optical Splitter
| Item | 1x64 |
| Length*Width*Height(mm) | 120x80x18 |
| Input | 2.0/3.0mm |
| Output | 2.0/3.0mm |
| Cable Length | 1m,1.5m,can be customized |
5.Different Models of Optical PLC Splitter
6.Other Products
7.Ordering Information
2. Our Advantage- Integrated Total Chain, Direct Factory Price
4. Workshop Overview of 64 Way Passive Optical Splitter
