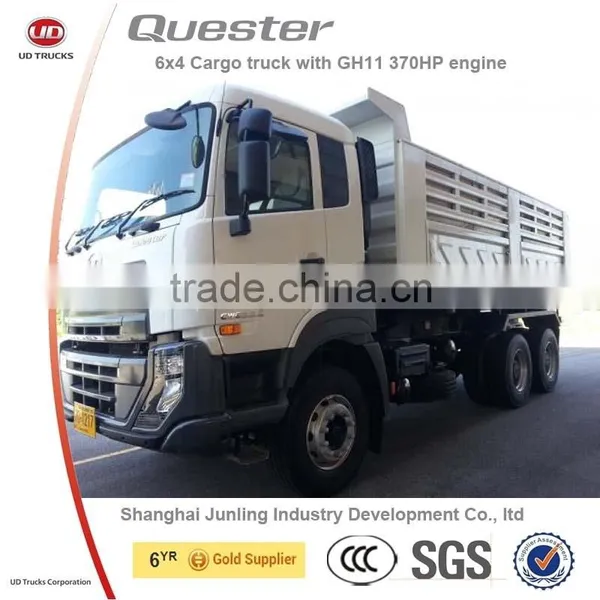

Nissan UD quester 6x4 heavy cargo truck for sale (Volvo group)

FOB Price

USD $60,000 - $80,000 / Unit

1 Unit(Min.Order)

Supply Ability 30 Unit / Units per Month
Port Shanghai
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Capacity (Load):	21 - 30t	Drive Wheel:	6x4
Horsepower:	351 - 450hp	Transmission Type:	Manual	Emission Standard:	Euro 4
Fuel Type:	Diesel	Size:	10304x2499x3228
Gross Vehicle Weight:	25000	Place of Origin:	Zhejiang, China	Brand Name:	UD
Model Number:	UD cargo

Packaging Details

Naked (roll to roll shipping, special container, bulk cargo)

Product Description

UD TRUCK

1.Cargo truck Specification

Basic information	Product name	Cargo rigid
	Type	6×4
	Length x Width x Height(mm)	10304×2499×3228
	Wheelbase(mm)	4600+1370
	Front overhang/Rear overhang(mm)	1460/2874
	Top speed(km/h)	117
	GVW(kg)	25000
	Rated load(kg)	-
	Kerb Weight(kg)	9410
	Approach/Departure angle(°)	15/9
Cab	Type	Cab-over-engine, Std. roof , single bunk
Cab	Passengers(person)	3
Engine	Model	GH1A
	Manufacturer	UD Trucks Corporation
	Displacement(L)	10.837
	Emission	CN4
	Type	Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
	Power rating(kw)	280
	Max net power(kw)	279
	Injection technology	Electric unit injector with max injection pressure 200MPa
	After treatment	SCR
Clutch	Type	Single disc, dry, pull-type diaphragm clutch
Clutch	Disc diameter(mm)	420
Gearbox	Model	F9R20A
Gearbox	Type	Mechanical, manual, 12 forward gears + 2 reverse gears
Steering gearbox	Type	Recirculating ball type hydraulic power-assisted steering system
Axle	Load capacity(kg)	Front: 8000/ Rear:26000(tandem)
Axle	Rear axle ratio	4.111
Frame	Type	One piece by roll forming
Frame	Max section area(mm)	300×90×(8+5)
Suspension	Type	Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
Suspension	Leaf Qty.	3/11
Tyre	Specification(either one)	12.00R20-14PR
		315/80R22.5-16PR
		295/80R22.5-16PR

2. Cargo truck Introduction

Cargo truck Dashboard with delicate layout

Well laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information

Cargo truck Multi view angle mirror

Considerately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather.

Cargo truck Front/Rear stabilizer

EU desig concept for higher driving safty

Cargo truck Axle&Hub reduction axle&Single reduction axle

High quality VOLVO designed axle with option of hub reduction for severe duty cycle

Cargo truck chassis Large cab tilting angle

Maximum tilting angle is 58 degrees and engine mounting & dismounting can be done when cab is tilted by 45 degree

Front lid designed for easy maintenance

Clutch fluid reservoir,wind shield washer tank, air conditioner filter behind front lid for easy daily check
