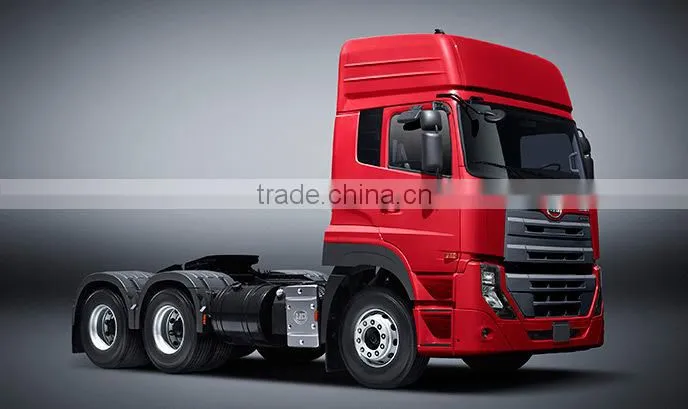

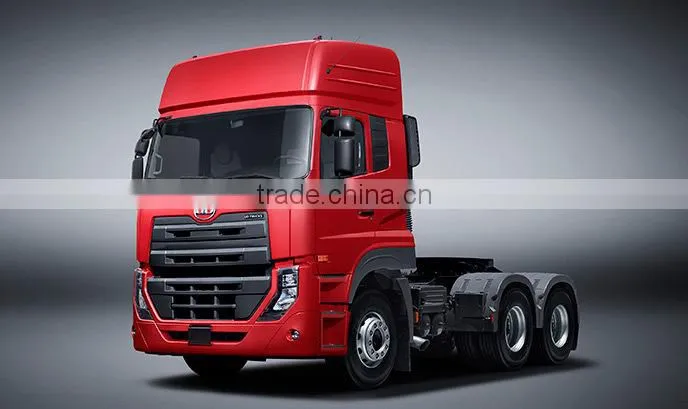

NISSAN UD Used Tow Truck 2014 Year 4x2 6x2 6x4 Tractor Truck 30ton 40ton 50ton

US$ 60,000 - 80,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Horsepower:

Other, 370, 390, 420

Drive Wheel:

Other, 4x2, 6x2, 6x4

Shanghai Junling Industry Development Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Main port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Horsepower Other, 370, 390, 420

Drive Wheel Other, 4x2, 6x2, 6x4

Transmission Type Manual

Emission Standard Euro 4

Fuel Type Diesel

Brand Name UD

Size 7035x2499x3750

Gross Vehicle Weight 26000

UD TRUCK

1.Used tow truck Specification

Basic information	Type	6×4
	Length x Width x Height(mm)	7035×2499×3730
	Wheelbase(mm)	3400+1370
	Front overhang/Rear overhang(mm)	1460/805
	Top speed(km/h)	109
	GVW(kg)	25000
	Kerb Weight(kg)	8805
	Gross trailer weight(kg)	40000
	5th wheel payload (kg)	16000
	Approach/Departure angle(°)	14/43
Cab	Type	Cab-over-engine, high roof , dual-bunk
Cab	Passengers(person)	3
Engine	Model	GH1B
	Manufacturer	UD Trucks Corporation
	Displacement(L)	10.837
	Emission	CN4
	Type	Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
	Power rating(kw)	294
	Max net power(kw)	293
	Injection technology	Electric unit injector with max injection pressure 200MPa
	After treatment	SCR
Clutch	Type	Single disc, dry, pull-type diaphragm clutch
Clutch	Disc diameter(mm)	420
Gearbox	Model	F2R20A
Gearbox	Type	Mechanical, manual, 12 forward gears + 2 reverse gears
Steering gearbox	Type	Recirculating ball type hydraulic power-assisted steering system
Axle	Load capacity(kg)	Front: 8000/ Rear:26000(tandem)
Axle	Rear axle ratio	4.111
Frame	Type	One piece by roll forming
Frame	Max section area(mm)	300×90×(7+5,8+5)
Suspension	Type	Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
Suspension	Leaf Qty.	3/9
Tyre	Specification(either one)	295/80R22.5-16PR
		315/80R22.5-16PR
