Home > Transportation > Truck > Dump Truck > 6x4 USED TRUCK/dump Truck for Sale (2014 Year Stocks NISSAN UD QUESTER)

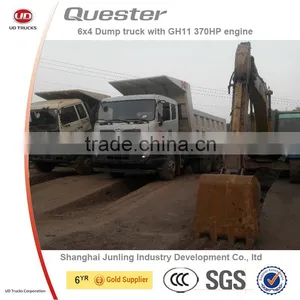

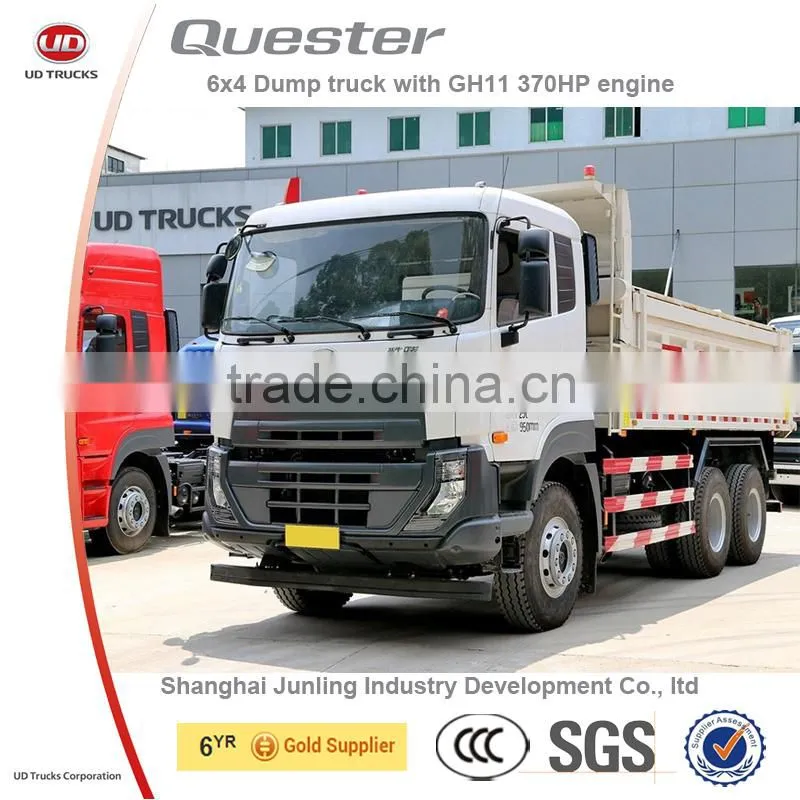

6x4 USED TRUCK/dump Truck for Sale (2014 Year Stocks NISSAN UD QUESTER)

US$ 60,000 - 78,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Drive Wheel:

6x4

Capacity (Load):

21 - 30t

Horsepower:

351 - 450hp

Contact Supplier Request Quote Chat Now

Shanghai Junling Industry Development Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Main port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Drive Wheel 6x4

Capacity (Load) 21 - 30t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Emission Standard Euro 4

Fuel Type Diesel

Gross Vehicle Weight 25000

Place of Origin Zhejiang, China

Brand Name UD

Model Number UD dump truck

Dimensions (L x W x H) (mm) 9180x2499x3860

UD TRUCK

1. Dump truck Specification

Basic information	Product name	Dump truck chassis	Dump truck
	Type	6×4
	Length x Width x Height(mm)	8304×2499×3228	9018×2499×3840	9180×2499×3860
	Wheelbase(mm)	3700+1370
	Front overhang/Rear overhang(mm)	1460/1774	1460/2488	1460/2650
	Top speed(km/h)	88
	GVW(kg)	25000
	Rated load(kg)	-	12100	11965
	Kerb Weight(kg)	8810	12705	12840
	Approach/Departure angle(°)	15/15
Cab	Type	Cab-over-engine, high roof, dual-bunk
	Passengers(person)	3
Engine	Model	GH1A
	Manufacturer	UD Trucks Corporation
	Displacement(L)	10.837
	Emission	CN4
	Type	Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
	Power rating(kw)	280
	Max net power(kw)	279
	Injection technology	Electric unit injector with max injection pressure 200MPa
	After treatment	SCR
Clutch	Type	Single disc, dry, pull-type diaphragm clutch
	Disc diameter(mm)	420
Gearbox	Model	F9R20A
	Type	Mechanical, manual, 12 forward gears + 2 reverse gears
Steering gearbox	Type	Recirculating ball type hydraulic power-assisted steering system
Axle	Load capacity(kg)	Front: 8000/ Rear:26000(tandem)
	Rear axle ratio	5.571
Frame	Type	One piece by roll forming
	Max section area(mm)	300×90×(8+5)
Suspension	Type	Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
	Leaf Qty.	3/11
Tyre	Specification(either one)	12.00-20-16PR
		12.00R20-14PR

2. Introduction

Dashboard with delicate layout

Well laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information

Multi view angle mirror

Considerately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather.
