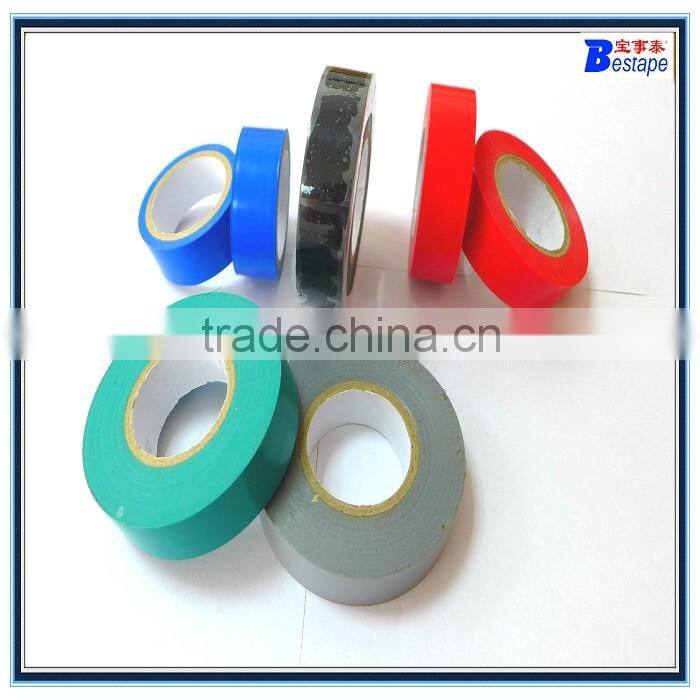

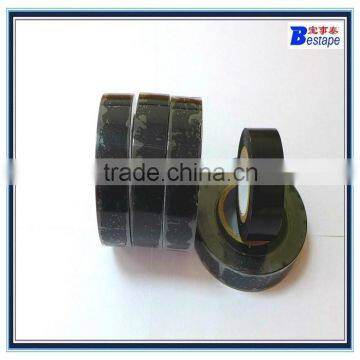

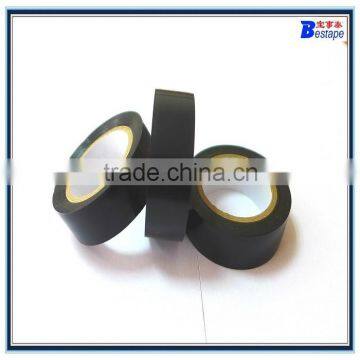

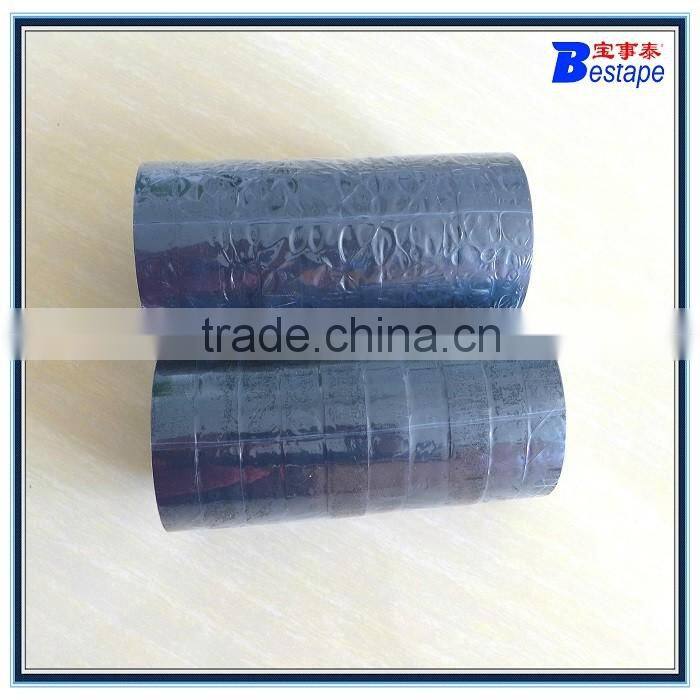

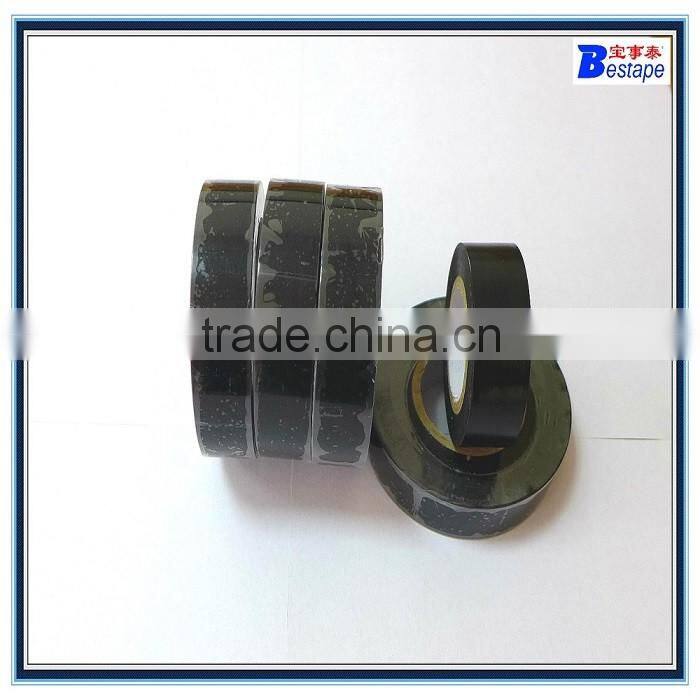

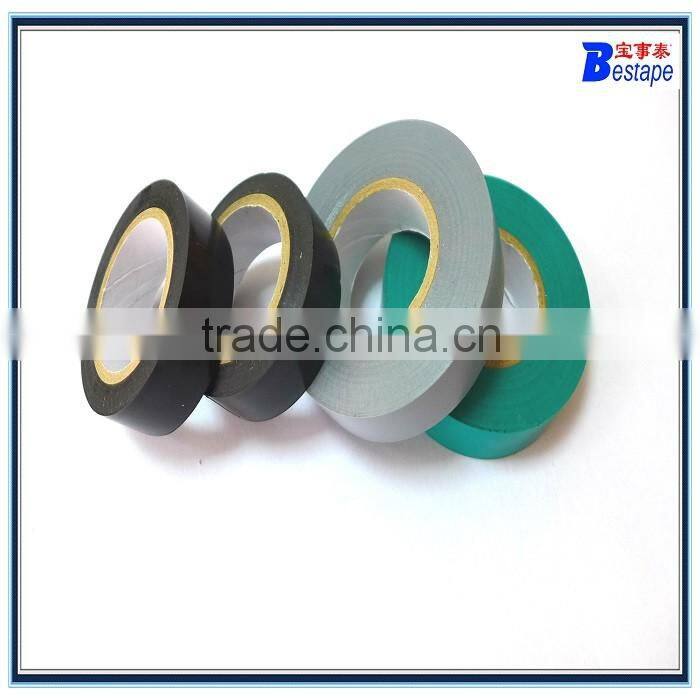

Excellent Grade Lead Free Vinyl Electrical Tape with Factory price
Description:
he lead free electrical tape is a thin premium grade plasticized polyvinyl chloride film coated with a super aggressive rubber adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture. Meet ROHS and Reach regulation,. It could prevent the gradually harm caused by lead and cadmium in the common tapes in order to protect the safety of users.
Application:
It is specifically designed for special wire insulation and other electrical insulating application. It is better to wrap wires with a half-lap , the last layer should be no tension to prevent flagging.
Technical Data:
Properties |
unit |
Typical Data |
Test Method |
|||||
WN110 |
WN130 |
WN150 |
WN165 |
WN180 |
WN200 |
|||
Total Thickness |
mm |
0.110 |
0.130 |
0.150 |
0.165 |
0.180 |
0.200 |
ASTM D1000 |
Width |
mm |
19 |
19 |
19 |
19 |
19 |
19 |
ASTM D1000 |
Tensile Strength |
N/cm |
20 |
22 |
25 |
28 |
30 |
30 |
ASTM D1000 |
Elongation |
% |
200 |
220 |
220 |
250 |
250 |
250 |
ASTM D1000 |
|
Adhesion Strength ·to steel ·to Backing |
N/cm N/cm |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
ASTM D1000 |
Dielectric breakdown |
V |
600 |
600 |
600 |
600 |
600 |
600 |
UL510 |
Temperature Resistance |
°C |
80 |
80 |
80 |
80 |
80 |
80 |
ASTM D1000 |
Other properties:
·Color : Black and other
·Surface Texture : Matt
·Shelf Life: 12 months when stored in original carton at 23℃×65%R.H.
Availability:
·Standard length: 10yd,20yd, 20m,30m
·Standard inner diameter of core: 32mm, 38mm, 42mm,76mm
·Standard width: 19mm, 25mm, 50mm, 1250mm
