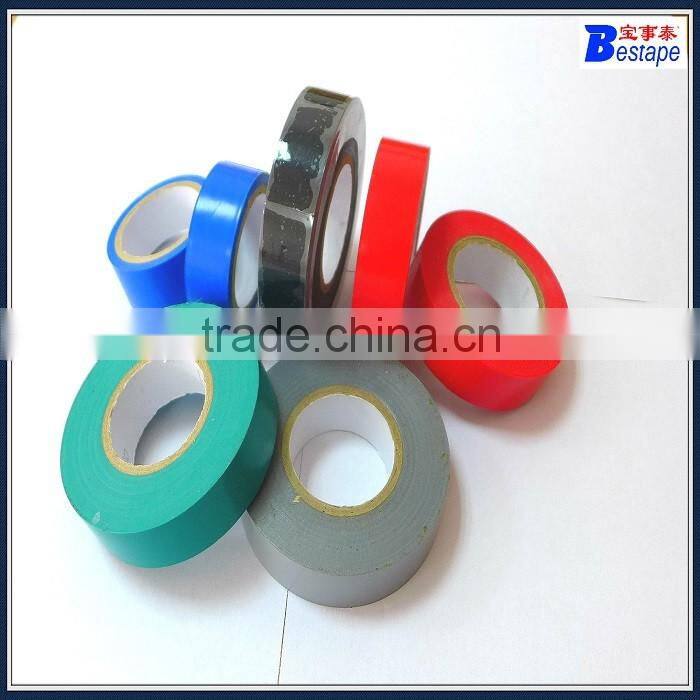

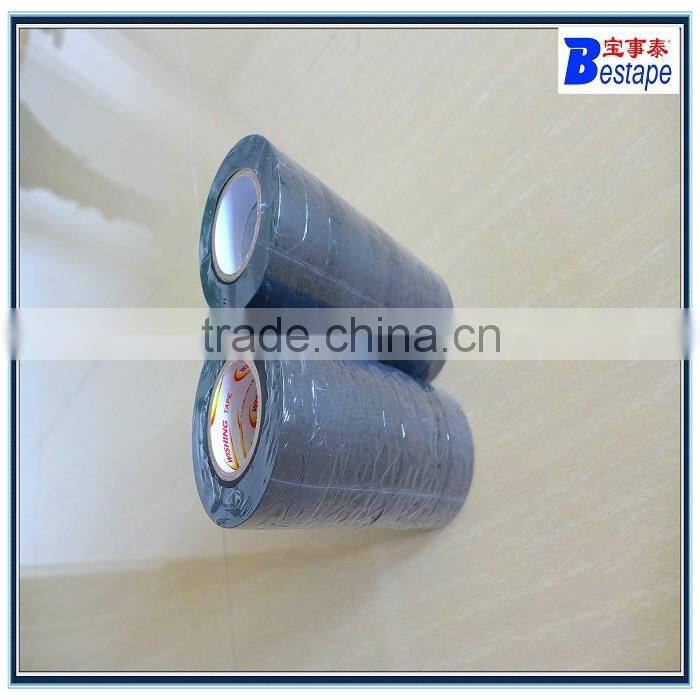

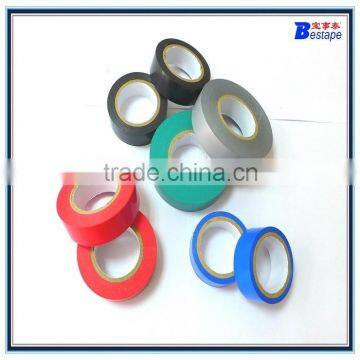

Vinyl insulation tape excellent grade with factory price
Description:
The excellent grade electrical tape is a thin premium grade plasticized polyvinyl chloride film coated with an aggressive rubber resin adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture.
Application:
It is specifically designed for wire harness and other electrical insulating application. It is better to wrap wires with a half-lap , the last layer should be no tension to prevent flagging.
Technical Data:
Properties |
unit |
Typical Data |
Test Method |
|||||
WA110 |
WA130 |
WA150 |
WA165 |
WA180 |
WA200 |
|||
Total Thickness |
mm |
0.110 |
0.130 |
0.150 |
0.165 |
0.180 |
0.200 |
ASTM D1000 |
Width |
mm |
19 |
19 |
19 |
19 |
19 |
19 |
ASTM D1000 |
Tensile Strength |
N/cm |
20 |
22 |
25 |
28 |
30 |
30 |
ASTM D1000 |
Elongation |
% |
180 |
200 |
200 |
220 |
220 |
220 |
ASTM D1000 |
|
Adhesion Strength ·to steel ·to Backing |
N/cm N/cm |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
ASTM D1000 |
Dielectric breakdown |
V |
600 |
600 |
600 |
600 |
600 |
600 |
UL510 |
Temperature Resistance |
°C |
80 |
80 |
80 |
80 |
80 |
80 |
ASTM D1000 |
Other properties
·Color : Black and other
·Surface Texture : Matt/Glossy
·Shelf Life: 12 months when stored in original carton at 23℃×65%R.H.
Availability
·Standard length: 10yd,20yd, 20m,30m or to the customer's requirements
·Standard inner diameter of core: 32mm, 38mm, 42mm,76mm
·Standard width: 19mm, 25mm, 50mm, 1250mm
