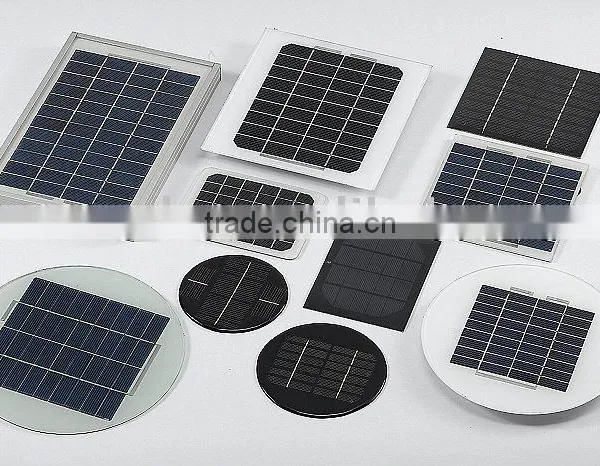

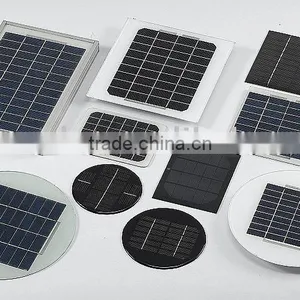

Small Tempered Glass Laminating PV Module

US$ 1 - 20 MOQ: 500 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NZX

Model Number:

NZX-resin

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NZX

Model Number NZX-resin

Material Other, Mono/ Poly

Size customerized

Number of Cells customerized

Max. Power 0.1W-5W

Specifications

small solar panel, small solar module, small PV panel, small PV module, tempered glass laminating solar panel

Product Name:	Tempered glass laminating Solar Panel
Product Size:	on your request

Electrical Specification (under standard test condition)
Tolerance:	VoltageV±3% CurrentmA±10%
Open circuit Voltage(Voc)	on test
Short circuit current(Isc)	on test
Voltage at max power(Vmp)	on test
Current at max power(Imp)	on test
Voltage at weak illumination(V)	on test
Cell efficiencyη:	>15.3
Note 1.Standard testing condition :Sun radialization: 1000Wm2 or lighting illumination :40000LUX ,temperature 25, Humidity:1090, Atmosphere:AM1.5. 2.standard testing conditon deviation cause nonlinear output 3.the output voltage lie on the working voltage and power of the load or on the nominal voltage of the battery.

Solar cell type:	Mono / poly crystalline silicon cells
Solar cell size:	156mm / 125mm
Panel:	Tempered glass
Glass thickness(mm):	1.2mm-3.2mm
Panel color:	transparent
Panel size(mm):	on your request
Product thickness:	3-5mm
Encapsulation:	Tempered glass + EVA + TPT

Physical characteristics
Appearance:	transparent and good polish, without distortion and loss
Lifetime:	15 years

Warning
1.Cannot touch with anything strong cauterant
2.Avoid scraping by something hard when using
3.Cannot bend during delivery and installation

Using and store Condition
1.Low temperature storage:20
2.High temperature storage:60
3.outdoor under the sunlight without covering
4.Working temperature:2565
5.Handle carefully
