Specifications
9V 200mA Custom-design Round Solar Panel1. Type: epoxy resin
3. Efficiency: 17%
4. Diameter: 150mm

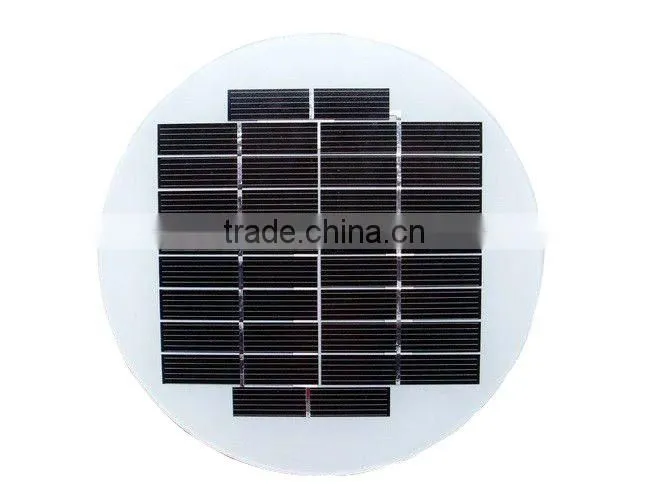

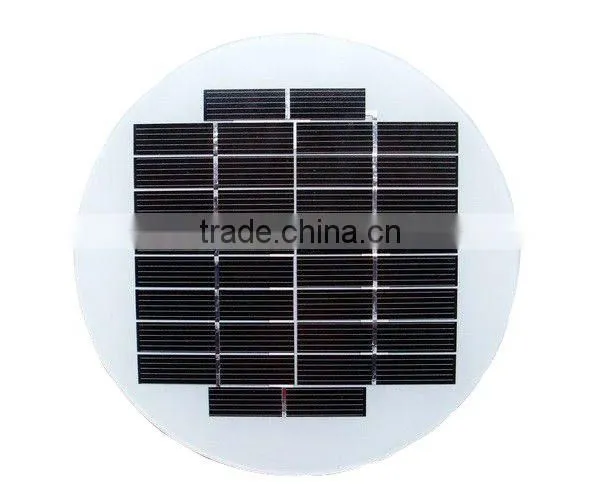

9V 200mA Custom-design Round Solar Panel
Detailed descriptions:
Product Type: |
Epoxy Solar Panel |
Model No.: |
SBPD150 |
Product Construction: |
Epoxy Resin + Cell + PCB |
Maximum Output: |
9V200mA=1.8W |
Tolerance: |
±3% |
Electrical Specification (under standard test condition) | |
Maximum Output Power (Wmp) |
1.8W |
Max Working Voltage (Vmp) |
9V |
Max Charging Current (Imp) |
200mA |
Open Circuit Voltage (Voc) |
10.8V |
Short Circuit Current (Isc) |
220mA |
Cell efficiency(η): |
17% |
Materials | |
Solar cell type: |
Mono |
PCB |
FR-4 |
PCB thickness(mm) |
1.5mm |
PCB color |
Black |
PCB size(mm) |
Diameter 150mm |
Product thickness: |
3.0mm |
Barline: |
Black tape or none |
Physical characteristics |
|
Appearance: |
transparent and good polish, without distortion and loss |
Lifetime: |
1-2 years |
Warning: | |
1.The mini solar panel can not be placed near to strong corrosive substance | |
2.Avoid scraping by something hard when using | |
3.Cannot bend during delivery and installation | |
Using and Storing Condition | |
Storing temperature |
20°C ~ 60°C |
Working temperature |
-20°C ~ 80°C |
Features:
- Each solar cell is in new condition and not susceptible to micro-crack
- A proprietary anti-reflective coating provides superior color uniformity
- Laser-cut for exacting measurements and precision
- Allow for handling without the normal breakage and cell damage
- Can be incorporated into several different devices
- Small space required for installation.
- Ideal for OEM and hobby applications
- All solar cells are tested before each shipment to ensure maximum efficiency and output.
How to choose mini solar panels:
This table shows the solar system configuration relationship between storage batteries and mini solar panels.
DC Storage Battery |
Mini Solar Panel |
1.2V |
2V ~ 2.5V |
2.4V |
3.5V ~ 4V |
3.6V |
5V ~ 6V |
3.7V |
5.5V-6V |
4V |
6-7V |
4.8V |
7-8V |
6V |
8V ~ 9V |
12V |
16V ~ 18V |
We can customize mini solar panel with different types and specifications, including mono or poly-crystalline or amorphous silicon, sealed technologies as encapsulated with epoxy resin, and PET or tempered glass laminating, various sizes.
Welcome your inquiry!
