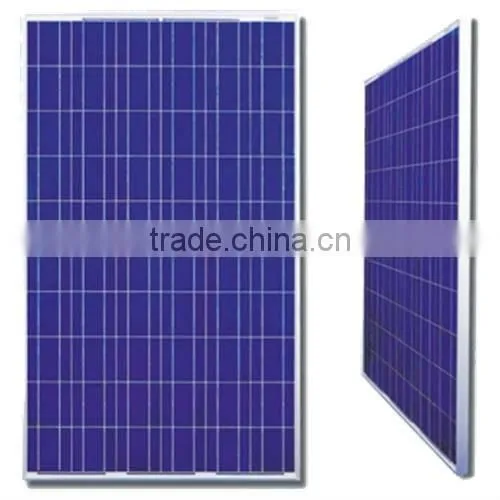

240W Solar Modules PV Panel

US$ 216 - 312 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NZX

Model Number:

NZX-240WM36V

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NZX

Model Number NZX-240WM36V

Material Polycrystalline Silicon

Size 1640*992*50mm

Number of Cells 72cells (6*12)

Max. Power 240Watt

Specifications

240W Solar Modules PV Panel
1,Certification:CE ,TUV,ISO 9000
2,Standard Test Conditions
3,High efficiency:17%

240W Solar Modules PV Panel

ITEM NO.	JS240W-48M	JS230W-48M	JS220W-48M
Maximum Power (W)	240	230	220
Optimum Power Voltage (V mp)	47.8	47.8	47.8
Optimum Operating Current (I mp):	5.02	4.81	4.6
Open Circuit Voltage (Voc)	54.62	54.62	54.62
Short Circuit Current (ISC)	5.74	5.5	5.26
Cell Efficiency (%)	17.26%	16.54%	15.83%
Module Efficiency (%)	14%	13.66%	13.06%
FF (%)	70-76%
Warranty	90% of 10 years, 80% of 25 years.
Standard Test Conditions	AM1.5 1000W/sqm 25 +/-2°C
Bypass Diode Rating (A)	12
Cable & Connector Type	Pass the TUV Certificate
Brand Name of Solar Cells	----Cell
Size of Module (mm)	1580106650
Solar Cell	125*125 Mono
Backing (Material)	TPT
Frame (Material Corners, etc.)	Aluminum-alloy
Number of Cell (PCS)	8*12
N/W(KG)	19.5
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage (e.g. + /-5%)	±5%
Front Glass Thickness (mm)	3.2
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s, 7.53g
Packing	1*20'	5Pallets /160pcs
	1*40'STD	10Pallets /320pcs
Temperature Coefficients of ISC(%)°C:	0.04
Temperature Coefficients of Voc(%)°C:	-0.38
Temperature Coefficients of Pm(%)°C:	-0.47
Temperature Coefficients of IM(%)°C:	0.04
Temperature Coefficients of VM(%)°C:	-0.38
Temperature Range	-40°C to +85°C
