Specifications
220W PV Solar Module1,Certification:CE ,ISO 9000,ROHS
2,Power:220W/30V
3,High efficiency:17%

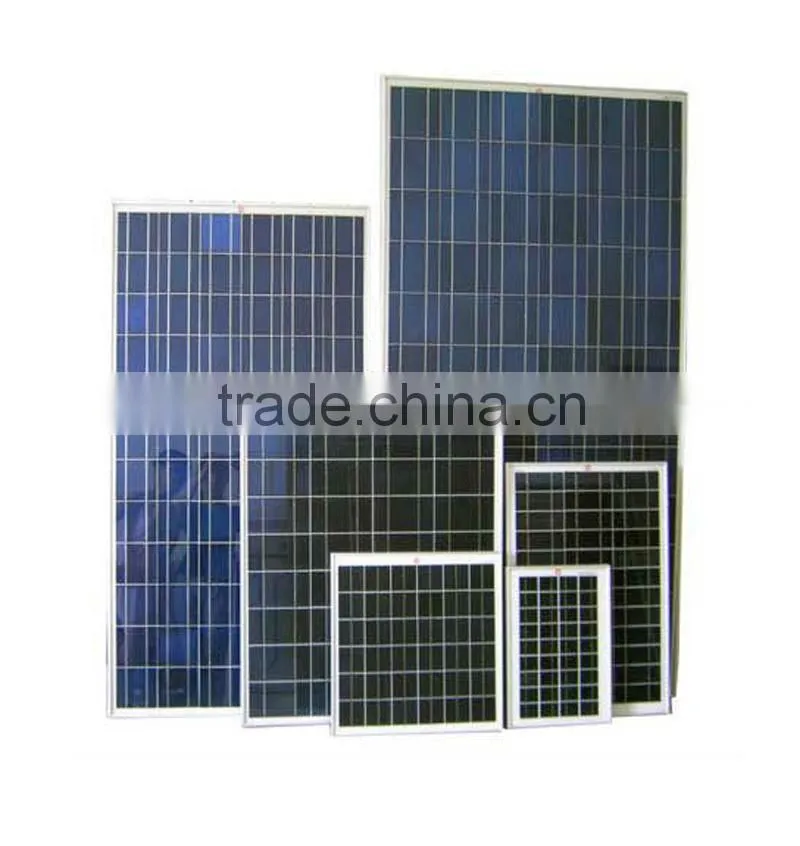

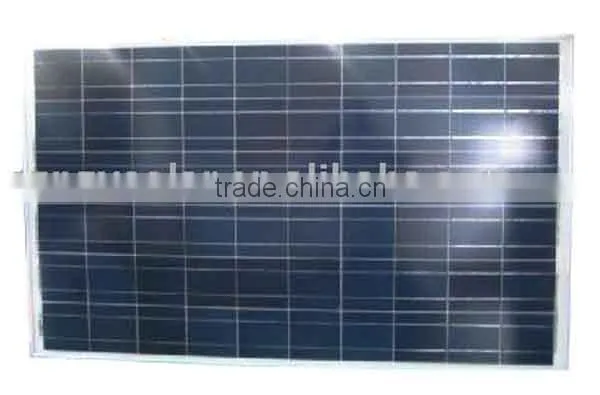

220W PV Solar Module
Specifications
| ITEM NO.: | SPM-220SB204 |
| Solar Cell: | 156*156(mm)poly |
| Maximum Power(W) | 220 |
| Optimum Power Voltage(Vmp) | 29.1 |
| Optimum Operating Current(Imp) | 7.56 |
| Open Circuit Voltage(Voc) | 36.2 |
| Short Circuit Current(Isc) | 8.32 |
| Nmber of Cell(pcs) | 6*10 |
| Size of Module(mm) | 1640*992*50mm |
| Packing Configuration | 2PCS/CTN,1670*1020*120mm |
| Front Glass Thikness(mm) | 3.2 |
| Maxium System Voltage (V) | 1000 |
| Maxium Series Fuse Rating(A) | 15 |
| Juction Box | lp65 rated |
| Noct | 48°C±2°C |
| Current Temperature Coefficient | 0.06±0.01%/K |
| Voltage Temperature Coefficient | -(78±10)MV/K |
| Power Temperature Coefficient | -(0.5±0.05)%/K |
| Temperature Range | -40°C to +85°C |
| Tolerance Wattage(e.g.+/-5%) | ±5% |
| Surface Maximum Load Capacity | 2400Pa |
| Allowable Hail Load | 23m/s ,7.53g |
| Weight Per Piece(KG) | 3.5 |
| Cell Efficiency | >17% |
| Frame(Material Corners,etc.) | Anodized Aluminum Alloy |
| Backing (Brand Type) | TPT |
| Warranty | 3 years for the whole product, for the power,90% for 10 years, 80% for 25 years |
| Standard Test Conditions | AM1.5 1000W/ 25 +/-2°C |
| FF (%) | 78% |
we supply solar Monocrystalline & Polycrystalline silicon & Amorphous silicon modules:
24w/26w/28w/30w/75w/80w/85w/90w/120w/125w/130w/135w/140w 170w/175w/180w/185w/
190w/200w/210w/215w/220w/225w/230w/235w/240w/250w/260w/270w/280w/290w/300w
5 watt to 300 watt is available
Solar panel/FV photovoltaic module /solar system/solar energy products
Our company is the biggest solar company&factory in Shenzhen China,professionally produce and supply high quality solar products,such as solar panel,solar power system,solar garden lights / lawn lamps,traffic warning lights,solar road studs,solar chargers, solar flashlights, solar Poly / Metal crafts, solar toys, etc.Passing CE and ROHS Certification,supplying OEM cooperation.
If you are interested in our items please feel free to contact us at any time,tks.
Your satisfaction, our goal; your dissatisfaction, we would listen, learn and try to solve.
