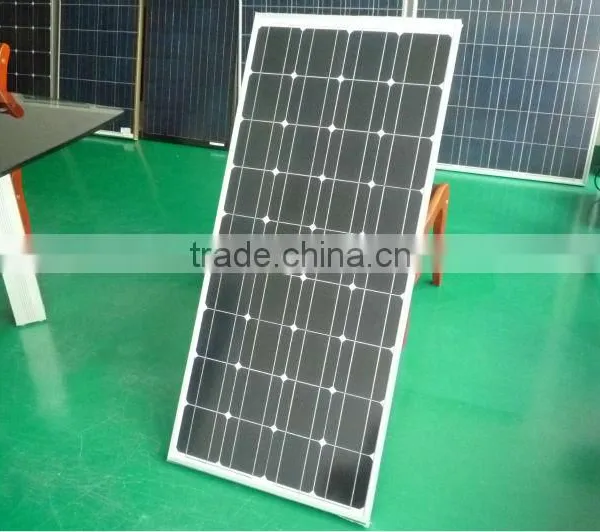

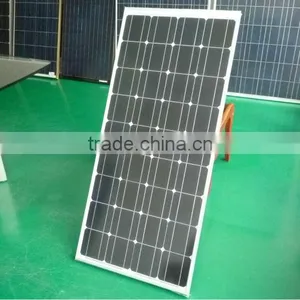

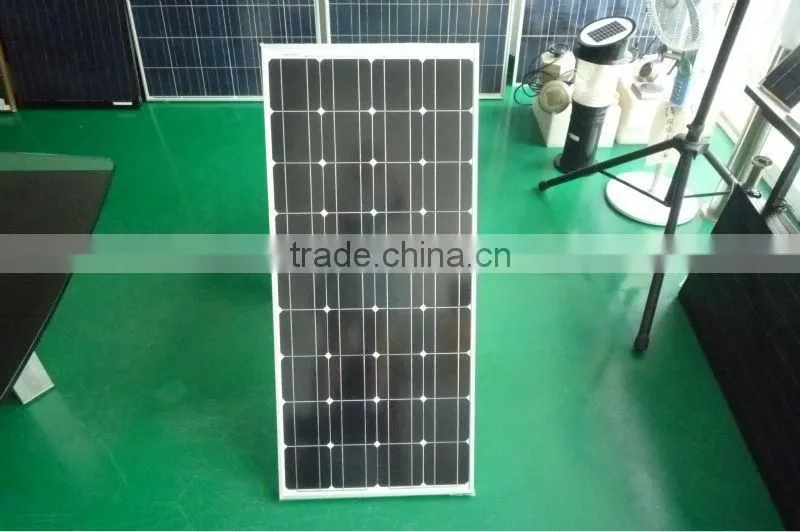

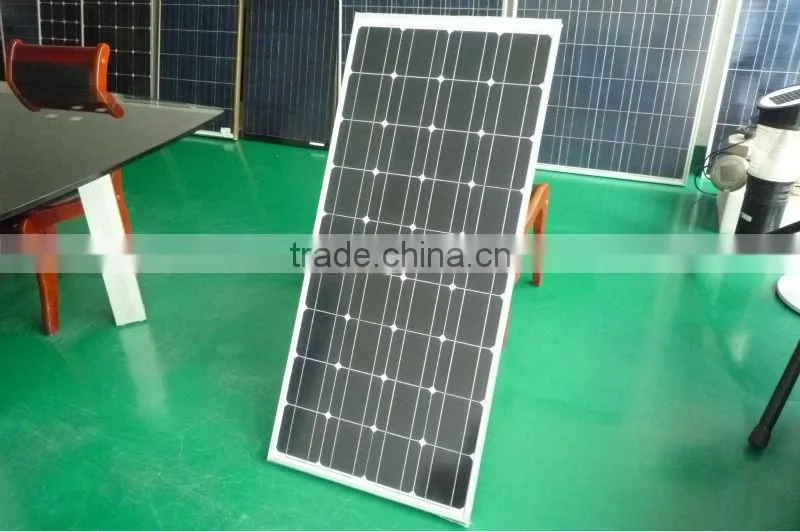

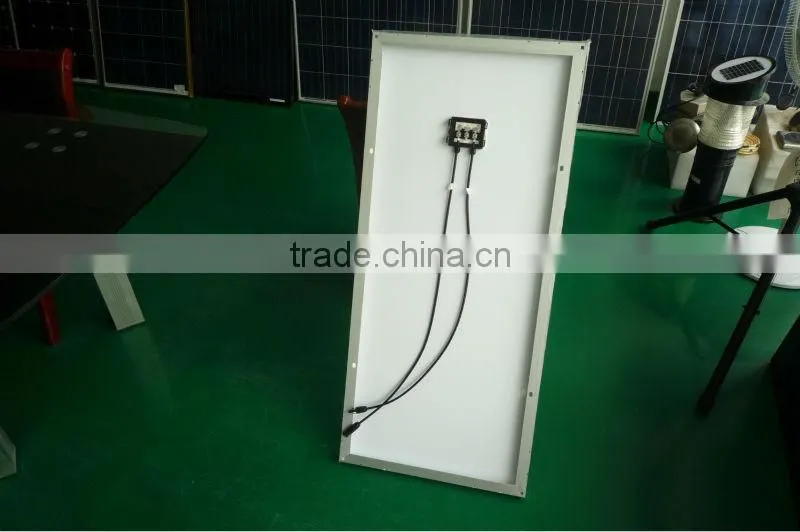

Hot Sale ! 12v Mono Panel Solar 100w From Solar Manufacturer

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

nzx

Model Number:

nzx-100wp

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name nzx

Model Number nzx-100wp

Specification Mini

Application Commercial

Output Voltage (V) 17.2 v

Solar Power (W) 100w

Specifications

monocrystalline silicon cells
high efficiency, low cost
5 years warranty,
10years 90% & 25years 80% output

we are solar manufacturer, voltage, size, power ,etc. all of them can be produced accoroding to customer requirments.

MONO	100w
Nominal peak power(Pmax)	100Wp
Maximum power voltage(Vmp)	17.2V
Maximum power current(Imp)	6.12A
Short-circuit current(Isc)	7.39A
Open circuit voltage(Voc)	21.2V
Optimized cell efficiency(η)	17.0 %
Power tolerance: ±3%

Limits
Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC

Temperature and Coefficients
NOCT	48°C±2°C
Current temperature coefficient	%/°C	0.037
Voltage temperature coefficient	%/°C	-0.34
Power temperature coefficient	%/°C	-0.48
NOCT:Nominal Operation Cell Temperature

Additional Data
Number of cells and type of connection	36,serial connection

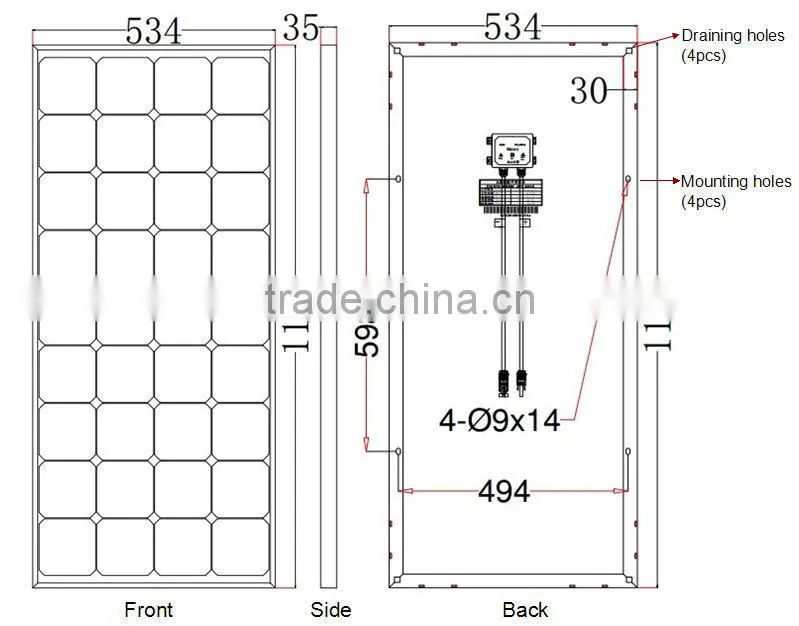

Dimensions	Length:1196mm
	Width:534mm
	Height:35mm
Net weight	12kgs/pc
Gross weight	13kgs/pc
Package dimension	122056060mm
Container loading	1PCS/Carton

STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C

Guaranteed Power Output Warranted Tolerance: ±5%	10 year:90% of its nominal power rating
	25 year:80% of its nominal power rating
Impact Resistance	Can bear the force that is generated by one 227g steel ball fall down from 1m height

Certificates	CE,ISO,IEC61215&61730(TUV),UL1703/CSA,MCS
Cells	Monocrystalline silicon photovoltaic cell
