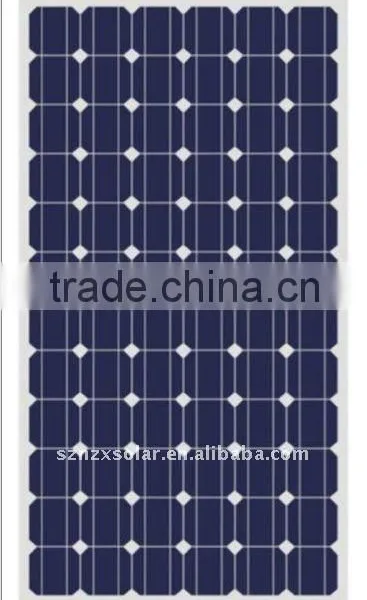

170W Solar Panel With Mono Crystalline Cell

US$ 0.8 - 1.2 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NZX

Model Number:

170Watt

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NZX

Model Number 170Watt

Type Other, solar panel

Specifications

170W Solar Panel
1) Good quality and customized
2) Long life span & High efficiency
3) Warranty:25 years
4) CE,ROHS,ISO

170W Solar Panel with Mono Crystalline Cell

Refer to the technology:

We can design different watts solar panels from 0.1W to 280W according to customer’s requirement with competitive price.

OEM Services:

we supply OEM services,you can put your logo and picture on the solar panel .

If you have any other requiremnet,pls feel free to contact me at anytime.

Any suggestion will be applocated.

 Refer to the technical parameters:

Maximum Power (W)	170
Optimum Power Voltage (V mp)	36
Optimum Operating Current (I mp)	5
Open Circuit Voltage (Voc)	43
Short Circuit Current (ISC)	5.39
Cell Efficiency (%)	16%
Module Efficiency (%)	14%
FF (%)	70-76%
Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
Bypass Diode Rating (A)	12
Cable & Connector Type	Pass the TUV Certificate
Size of Module (mm)	158080850
Solar Cell	125*125 Mono
Backing (Material)	TPT
Frame (Material Corners, etc.)	Aluminum-alloy
Number of Cell (PCS)	6*12
N/W(KG)	16
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage (e.g. + /-5%)	±5%
Front Glass Thickness (mm)	3.2
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s, 7.53g
Temperature Coefficients of ISC(%):	0.04
Temperature Coefficients of Voc(%):	-0.38
Temperature Coefficients of Pm(%):	-0.47
Temperature Coefficients of IM(%):	0.04
Temperature Coefficients of VM(%):	-0.38
Temperature Range	-40°C to +85°C
