Home > Electrical & Electronics > Switch > Micro Switch > Auto Switch, Auto on off Switch, Auto Window Switch
US$ 0.599 - 0.999
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZING EAR
Model Number:
G16
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof Magnetic Rotary Timer SwitchUS$ 0.1 - 0.5MOQ: 100 Pieces -
Ip67 Switch Mini Actuator Rotary Electrical Limit Rotary SwitchUS$ 0.32 - 0.63MOQ: 100 Pieces
-
UL&RoHS ABS Plastic Control Switch Mini Rotary Switch 0.1a 12v Electronic SwitchUS$ 0.32 - 0.63MOQ: 100 Pieces
-
40t85 Micro Switch Waterproof, Switch for Motor Electric 12v, T85 Micro SwitchUS$ 0.1 - 0.99MOQ: 1000 Pieces
-
2015 Zing Ear Waterproof Mini Slide Switch and Micro Switch for Sliding Door LackUS$ 0.1 - 0.99MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
ZING EAR
Model Number
G16
Max. Current
100mA
Max. Voltage
12vdc
Operating Temperature
-40℃~+85℃
Protection Level
IP67

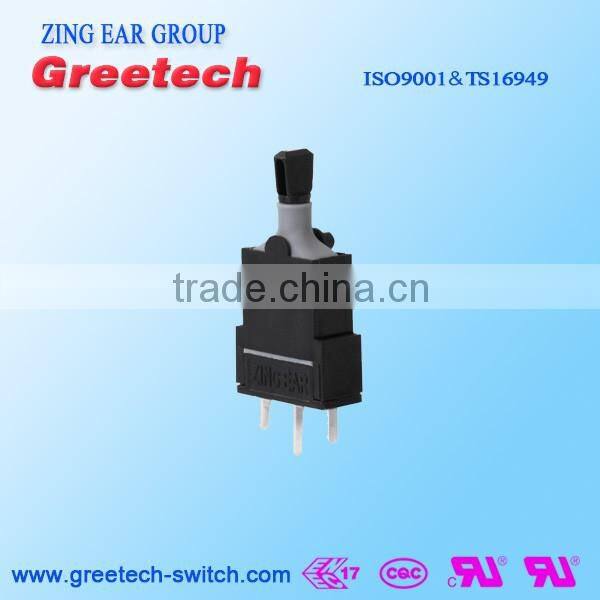

Auto switch, auto on off switch, auto window switch
Product Description
Feature
-Water And Dust Proof (IP67) Design
-Long Life,High Reliability
-Variety of PCB Terminals and Solder Terminals
-Amounting post could be Φ2.0 and Φ2.4, post distance could be 9.5mm, 12mm and 12.5mm
-Bidirectional Conduction Design
-Mini Size, could be used in tight space

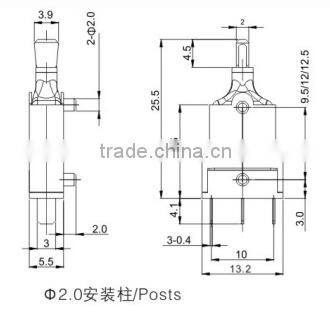

Drawing
Parameters
| Rating | 05 | 12VDC 100 mA | |||||||
| Operating Frequency | Electrical | 20 cycles/minute | |||||||
| Mechanical | 30 cycles/minute | ||||||||
| Contact Resistance(Initiative) | <200mΩ | ||||||||
| Insulation Resistance | >10MΩ | ||||||||
| Vibration durability | 10-50Hz,Amplitude 1.5mm | ||||||||
| Storgage Temperature | -40°C~+85°C | ||||||||
| Storage Humidity | 85%RH Max | ||||||||
| Service Life | Electrical | 100,000 cycles | |||||||
| Mechanical | 100,000 cycles | ||||||||
| Operating Force | 200gf MAX | ||||||||
| Unit weight | 1.6g | ||||||||
Application
-Car
-Industrial Control
Related products
Packaging & Shipping
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Distributors Wanted
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
