Home > Products > Micro Switch > UL Cul ENEC 3A 125V/250V Sensitive Micro Switch IP67
UL Cul ENEC 3A 125V/250V Sensitive Micro Switch IP67
US$ 0.35 - 0.45
/ Piece
100 Pieces(Min. Order)
- Shenzhen Guangzhou HK
- Credit Card
You May Like
-
High Quality Micro Switch 12V,Micro Switch Kw3a
-
China Supplier ABS Plastic Micro Switch With UL cUL ENEC CQC
-
micro switch t105,Waterproof IP67 Micro Switch For car
-
250v ac micro switch t85 5e4 for Car Airconditioner moto control ect
-
Miniature Touch Micro Switch 0.1A 3A For Communication Home Appliance Motor Control
-
China supplier SPDT auto mechanical magnetic push button switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR | |
| Model Number | G303-130K05A7 | Max. Current | 0.1A/3A | |
| Max. Voltage | 125/250VAC,48VDC | Operating Temperature | -40 ~+85 | |
| Protection Level | IP67 |
Product Description

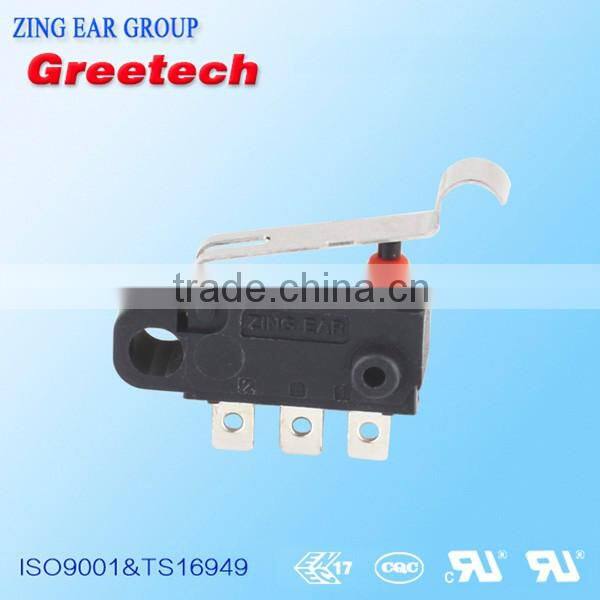

UL Cul ENEC 3A 125V/250V Sensitive Micro Switch IP67
Sensitive Micro Switch Feature
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs

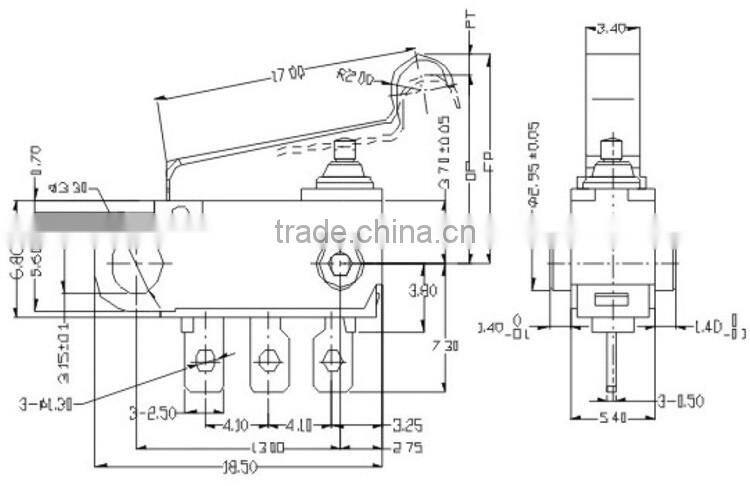

Sensitive Micro Switch Drawing
Sensitive Micro Switc Operating Characteristics
Sensitive Micro Switch Parameters
| Rating | 0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5. | |
| Operating Frequency | Electrical | 0.1A-120/3A-10~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resistance(Initiative) | 100mΩ Max | |
| Insulation Resistance(at 500VDC) | 100MΩ Min | |
| Vibration durability | 10~55Hz, move 0.75mm(p-p) | |
| Dielectric Strength | 500VAC (50~60Hz) | |
| Storage Temperature | -40℃-+85℃ | |
| Storage Humidity | 85% RH Max | |
| Service Life | Electrical | 6,000~500,000/cycles(Depend on part number) |
| Mechanical | Min.500,000/cycles | |
Application
-Car -Electric Tooth Brush
-Air-conditioner -Toys
-Communication -Home Appliance
-Motor Control
Related products
Packaging & Shipping
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Distributors Wanted
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
