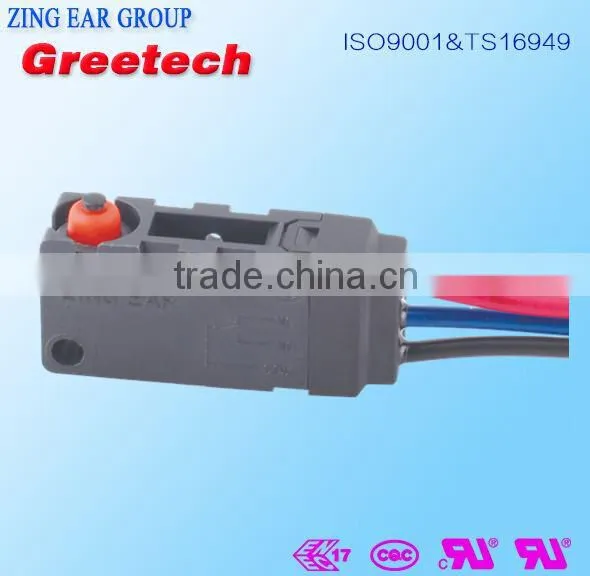

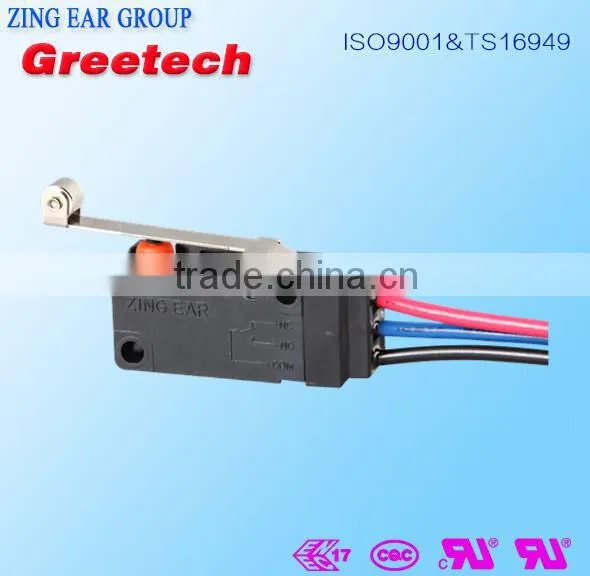

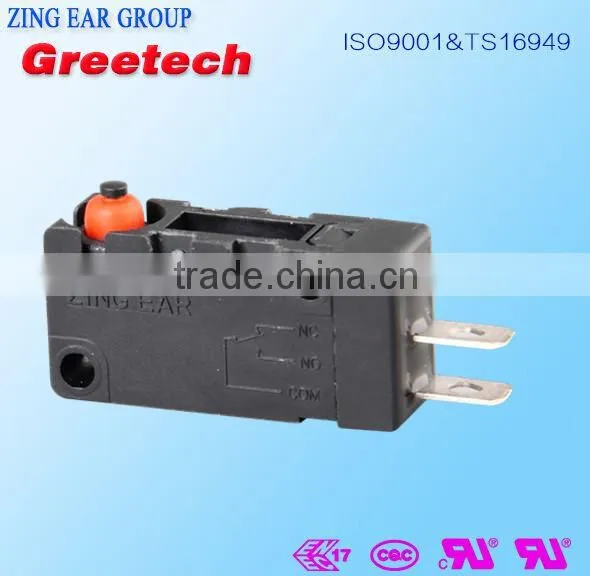

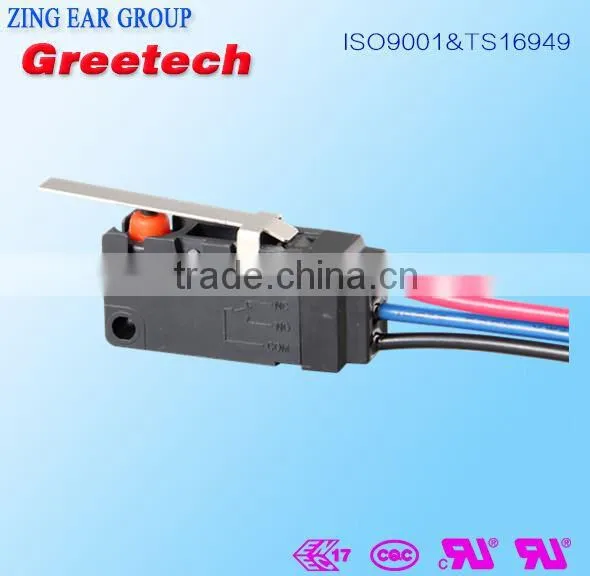

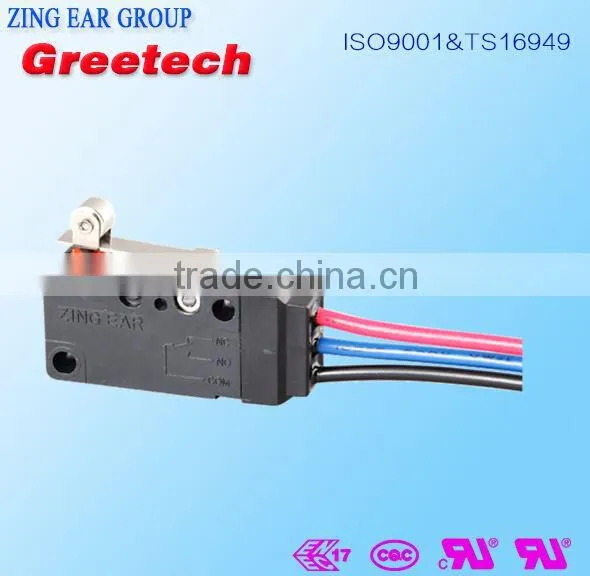

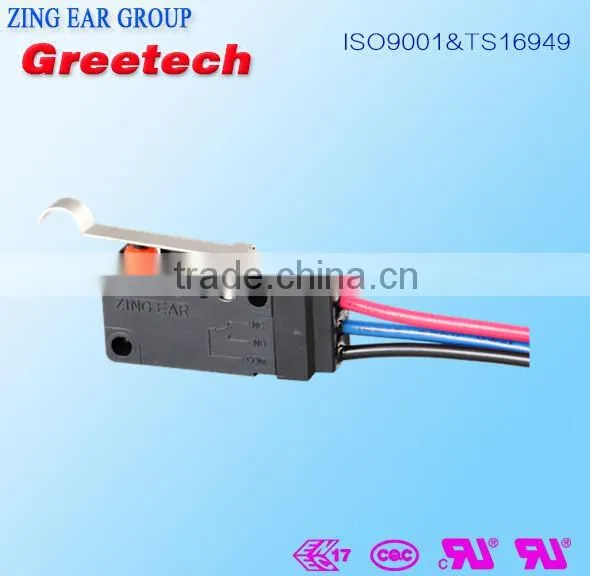

Push button 250v ac micro push button switch led t105 5e4
Feature:
-Tight Configuration,Small Contact Gap , Snap Action
-Long Life, High Reliability
-Global Safety Approvals
-Variety of Terminals
-Wide Range Operating Force
-Wide Range Temperature Grade
-With Optional PTI Grade
-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,
Communication Equipments.
-Variety of Levers
Parameters:
|
W1 | ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85 |
|||||||||||
| W2 | ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85 |
||||||||||||
| W3 | ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85 |
||||||||||||
| Operating Frequency |
|
times/min | |||||||||||
| mechanical | times/min | ||||||||||||
| Contact Resistance(intial value) | with terminal | 50mΩMax | |||||||||||
| with wire | 100mΩ Max(Depends on the length of the wire) | ||||||||||||
| Insulation resistance | at 500VDC,100MΩ Min. | ||||||||||||
| Dielectric Strength | Between terminals | AC 1000V 50-60Hz 1min | |||||||||||
| Between terminals and housing | AC 1500V 50-60Hz 1min | ||||||||||||
| Storage Temperature |
|
||||||||||||
| Strorage Humidity | 85%RH Max | ||||||||||||
| Protection grade | With terminal | IEC IP67(Terminal not included) | |||||||||||
| With wire | IEC IP67 | ||||||||||||
| Electric-shock safeguard grade | Class I | ||||||||||||
| PTI | 250 | ||||||||||||
| Life | E-life | 2E4~10E4 cycles(depends on P/Ns) | |||||||||||
| M-life | over 1000,000cycles(60cycles/min) | ||||||||||||
| Weight | Approx.7g(with terminal and without lever) | ||||||||||||
Drawing:
More about packaging details:
No. |
Greetech Product |
Inner Box |
Shipper Carton |
MPQ |
||||||
Inner box size(mm) |
Q'ty/(pcs) |
Total GW(kgs) |
Carton size(mm) |
Q'ty/ctn |
Total GW(kgs) |
MOQ (pcs) |
L/T (Days) |
Total GW(kgs) |
||
1 |
G3 series(terminal type) |
310x215x135 |
3,360 |
3.9 |
440x325x300 |
13,440 |
15.3 |
1,000 |
15 |
1.2 |
2 |
G5 series |
310x250x120 |
600 |
5.5 |
330x270x270 |
1,200 |
10.8 |
1,000 |
15 |
9.0 |
3 |
G5W11 series |
310x215x135 |
200 |
4.8 |
440x325x300 |
800 |
19.2 |
100 |
10 |
2.5 |
4 |
G6 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
5 |
G9 series(terminal type) |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
6 |
G91 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
7 |
G10 series |
290x192x40 |
600 |
1.3 |
400x305x220 |
6,000 |
12.5 |
1,000 |
15 |
2.7 |
8 |
GT02 series |
210x155x55 |
300 |
1.2 |
440x325x285 |
6,000 |
12.0 |
6,000 |
15 |
12.0 |
9 |
GPS100 series |
/ |
/ |
/ |
330*270*270 |
60 |
6.1 |
60 |
10 |
6.1 |
10 |
Switch with wire leads |
310x215x135 |
100 |
1.8 |
440x325x300 |
800 |
14.5 |
800 |
20 |
14.5 |
shipping:
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Trade Shows and Customer Visiting:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
