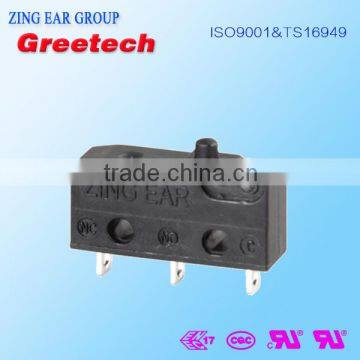

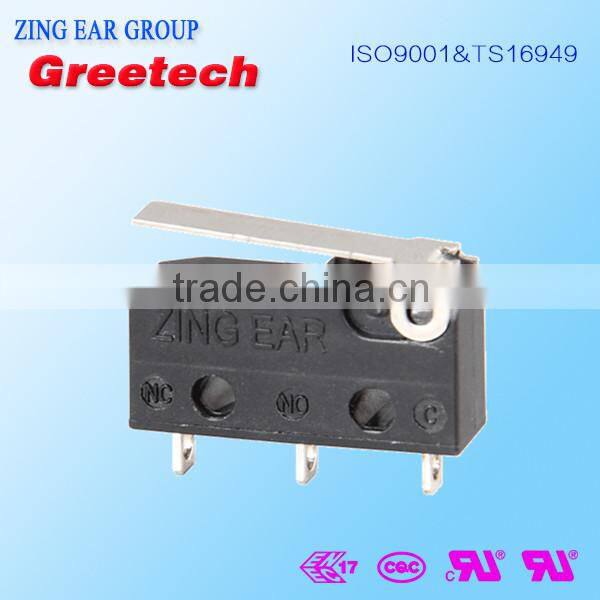

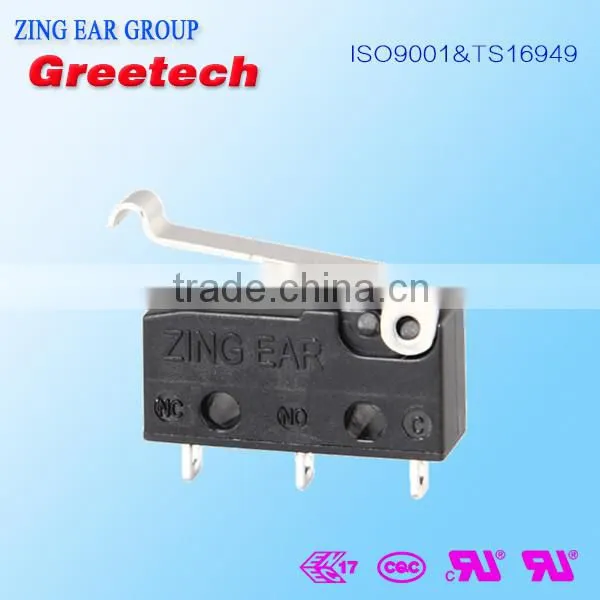

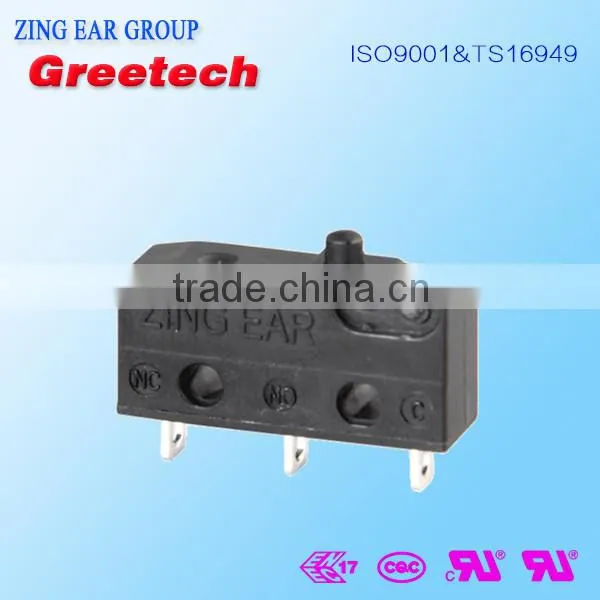

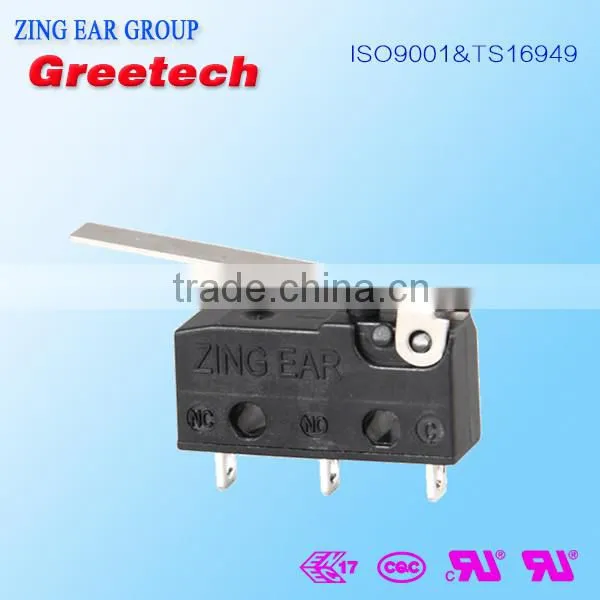

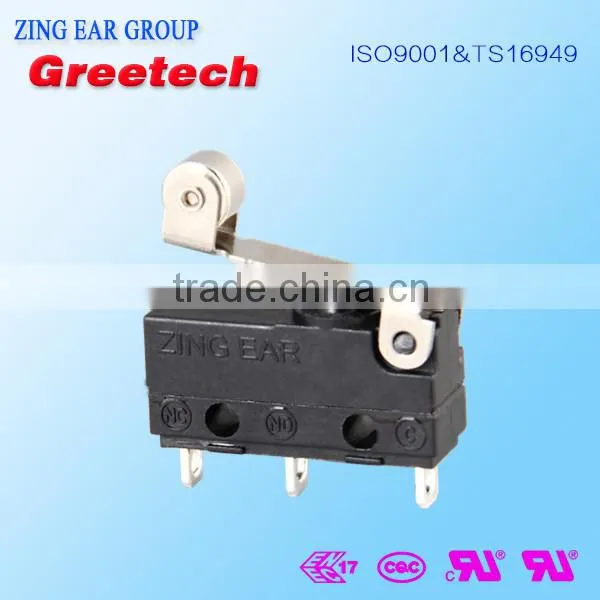

High Temperature Level Switch / Snap Action micro switch kw3a 10t105 For Home Appliances
- 3000000 Piece / Pieces per Month
- Shenzhen Guangzhou HK
- Credit Card
- High lifespan KW2-3 series KW2-3-02P-30-5 micro switch long handle small micro action
- Limit Switches Professional Customised Source Factory Silver Contact Quick Switch for Rail Transportation
- Travel Limit Switches Manufacturers Direct Sales Self-cleaning contacts Micro Switches for Automation Control
- Micro Switch Waterproof Strength Factory Professional Customised Micro Switch Waterproof for Rail Switches
- LXC micro switch high-voltage switch is suitable for high-speed rail transit travel switch circuit breakers
- Magnetic blow micro switch high voltage switch for railroad transportation pure silver contact PC housing
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ZING EAR | Model Number: | G91P1-100S01D1 |
Max. Current: | 0.1A/10.1A | Max. Voltage: | 250VAC/48VDC | Operating Temperature: | -40℃~+125℃ or -40℃~+85℃ |
Protection Level: | IP00 |
Product Description
High Temperature Level Switch / Snap Action micro switch kw3a 10t105 For Home Appliances
Feature
-Small Compact Size
-Global safety approvals
-Long life and High Precision and Reliability
-Variety of Terminals and levers
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.

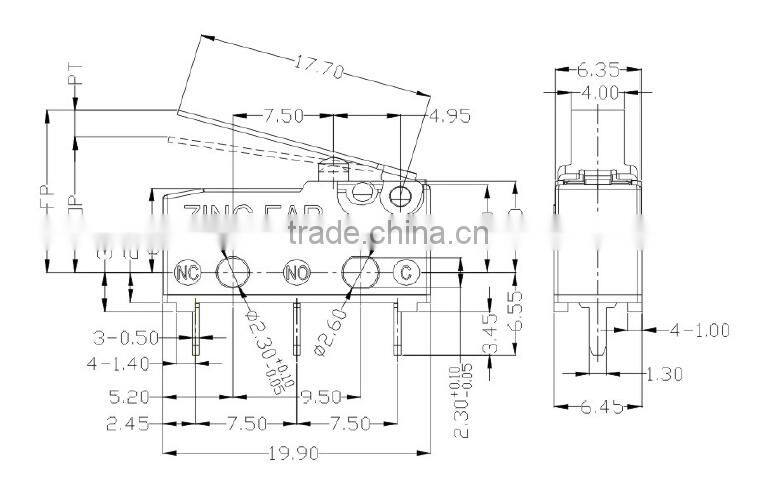

Drawing

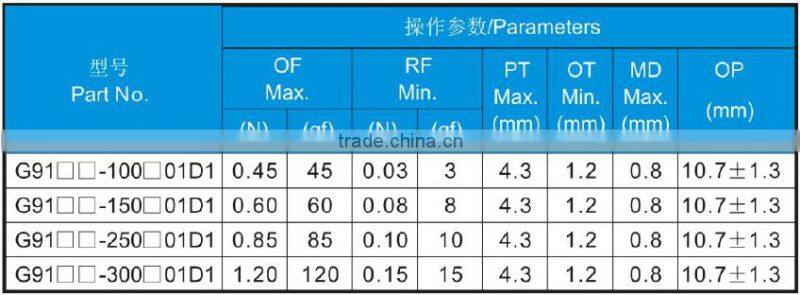

Parameters
Rating | P1 | ENEC/UL:0.1A 125/250V 48VDC Gold Plated Contact Optional | ||||||||
05 | ENEC:5A 125/250VAC;UL: 5A 1/8HP, 125/250VAC | |||||||||
10 | ENEC:10(1.5)A 125/250VAC;UL:10.1A 1/4HP 125/250VAC | |||||||||
Operating Frequency |
| 10~30 cycles/minute | ||||||||
Mechanical | 120 cycles/minute | |||||||||
Contact Resistance (Initiative) | 100m ohm Max | |||||||||
Insulation Resistance(at 500VDC) | 100MΩ Min. | |||||||||
Dielectric Strength | AC 1,000V RMS (50-60Hz) | |||||||||
Operating Temperature | -40°C~+125°C or -40°C~+85°C | |||||||||
Storage Humidity | 85%RH Max | |||||||||
Service Life | Electrical | 10,000~100,000cycles(Depend on part number) | ||||||||
Mechanical | 1,000,000cycles |
-Elctronic Devices -Electric Tooth Brush
-Automatic Equipments -Auto Electronics
-Agriculture Equipments -Home Appliance
-Office Equipments
Packing list
No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
(pcs) | (pcs) | (pcs) | (Days) | |||||||
1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |

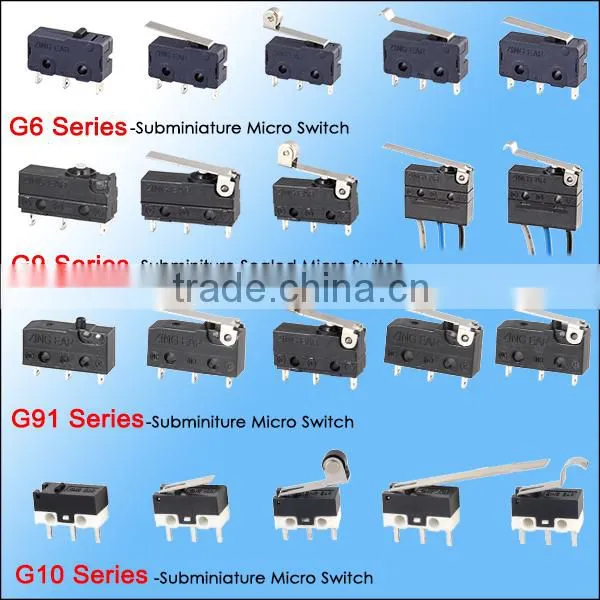

6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Greetech Advantages:
Trade Records
Exhibitions & Customer visiting
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
