Arcade Parts Zing Ear Mini micro Push Button Micro Switch
USD $0.1 - $0.2
/ Piece
100 Pieces(Min.Order)
- 3000000 Piece / Pieces per Month
- Shenzhen Guangzhou HK
- Credit Card
You May Like
-
High lifespan KW2-3 series KW2-3-02P-30-5 micro switch long handle small micro action
-
Limit Switches Professional Customised Source Factory Silver Contact Quick Switch for Rail Transportation
-
Travel Limit Switches Manufacturers Direct Sales Self-cleaning contacts Micro Switches for Automation Control
-
Micro Switch Waterproof Strength Factory Professional Customised Micro Switch Waterproof for Rail Switches
-
LXC micro switch high-voltage switch is suitable for high-speed rail transit travel switch circuit breakers
-
Magnetic blow micro switch high voltage switch for railroad transportation pure silver contact PC housing
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ZING EAR | Model Number: | G10P1-090P02A |
| Max. Current: | 3A | Max. Voltage: | 125VAC | Operating Temperature: | -40℃~+85℃ |
| Protection Level: | IP00 |
Product Description

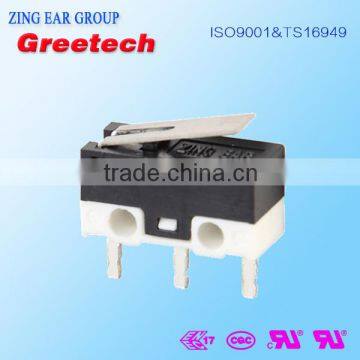

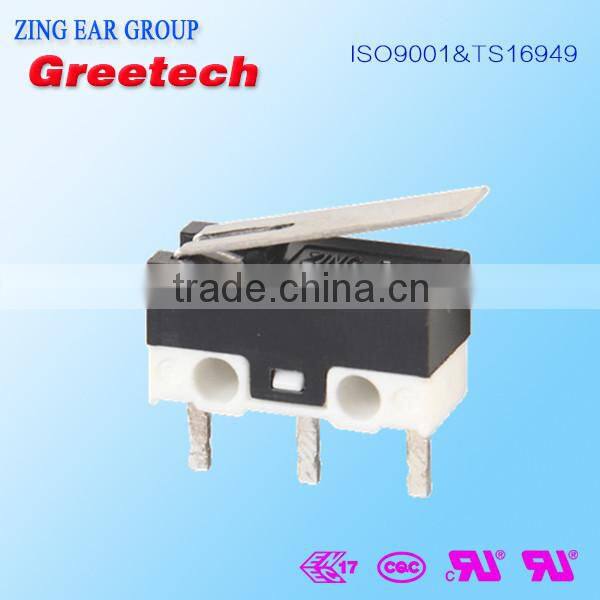

Arcade Parts Zing Ear Mini micro Push Button Micro Switch
Product Description
Feature
-Small Compact Size
-Global safety approvals
-Long life and High Precision and Reliability
-Variety of levers optional
-Variety of Terminals
-Widely used in Appliance and Industrial Control etc.

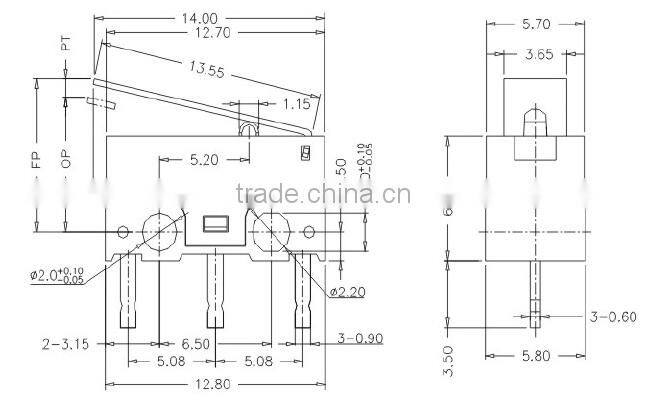

Drawing
Operating Parameters
Parameters
| Rating | P1 | 0.1A 48VDC/125VAC (Gold plated optional) | ||||||||
| 03 | 1A/3A 125VAC | |||||||||
| Operation Frequency |
| 10~30 cycles/min | ||||||||
| Mechanical | 120 cycles/min | |||||||||
Contact Resistance(Initial Value) | 100mΩ Max(Depends on P/Ns) | |||||||||
| Insulation Resistance | 500VDC At 500VDC,100MΩ Min. | |||||||||
| Dielectric Strength | AC 600V RMS (50-60Hz) | |||||||||
| Storage Temperature | -40°C~+85°C | |||||||||
| Storage Humidity | 85%RH Max | |||||||||
| Service Life | Electrical | 6,000~50,000 cycles(Depends on P/Ns) | ||||||||
| Mechanical | 1,000,000 cycles | |||||||||
| Weight | About 0.5g(Straight PCB type without lever) | |||||||||
| Material | Gold plated/Silver Plated/Ag Contact | |||||||||
Application
-Electrical Devices -Mouse
-Electric Knife -Calculator
-Telephone -Home Appliance
-Alarm -Tester Machine
Related products
Packaging & Shipping
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
