remote control for car central door lock system, zing ear automotive micro switches TS16949
- Shenzhen Guangzhou HK
- Credit Card
You May Like
-
2015 40t85 mini waterproofed micro switch zing ear, electrical switches
-
40t85 waterproof micro switch 12v power window switch, car charger with on off switch
-
40t85 mini waterproof micro switch, hook lock door switch for 12v car electric kettle
-
Zingear 5a 250vac t85 5e4 sealed mini waterproof push button micro switch
-
Waterproof electric car window kw4a(s) 10t85 220v micro push button switch
-
2015 auto 12v/250v waterproof mini micro switch t85 5e4
Product Details
Place of Origin | Guangdong, China | Brand Name | ZING EAR | |

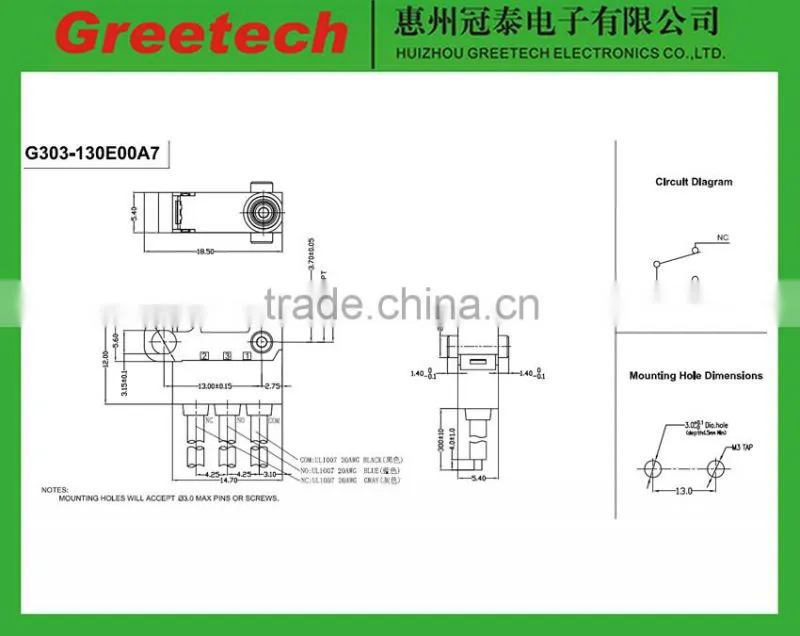

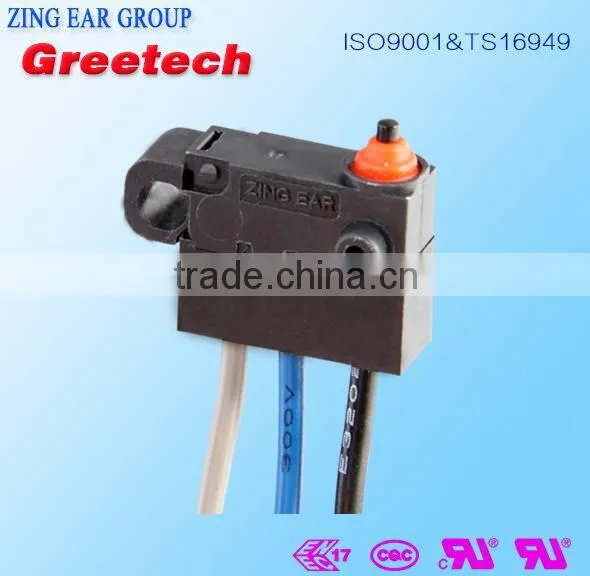

Model Number | G303-130E00A7 | Max. Current | 3A | |
Max. Voltage | 125/250VAC,48VDC | Operating Temperature | -40℃~+85℃ | |
Protection Level | IP67 |
Product Description
remote control for car central door lock system, zing ear automotive micro switches TS16949 :
Just take a few minutes, give you 100% benefits. Just do it!
1. Greetech (subsidiary corporation of Taiwan ZING EAR Group)Advantages:
- Over 80% finished products & 90% semi-finished parts are done by automation.
- We have our own automation team in charge of automation designing and assembly.
- Greetech is awarded as the “National Innovative Technology Companies” of China.
- So far, Greetech has owned more than 20 patents.
- More than 2,000 models of switch types for your options
- Available freesamples for your testing & approval.
- Over 28 million pcs monthly capacity to fulfill your increased demands!
- 100% Product safety approved by : UL, CUL, ENEC & CQC.
- 100% of our products comply with RoHS & Reach.
- We carry out the quality assurance systems strictly: ISO9001 & TS16949 authorized by SGS.
- Our mission is to supply our customer with “ZERO DEFECT” products.
- Alibaba Trade Assurance System: 100% guarantee your business with product quality, on-time delivery and payment security, zero risk.

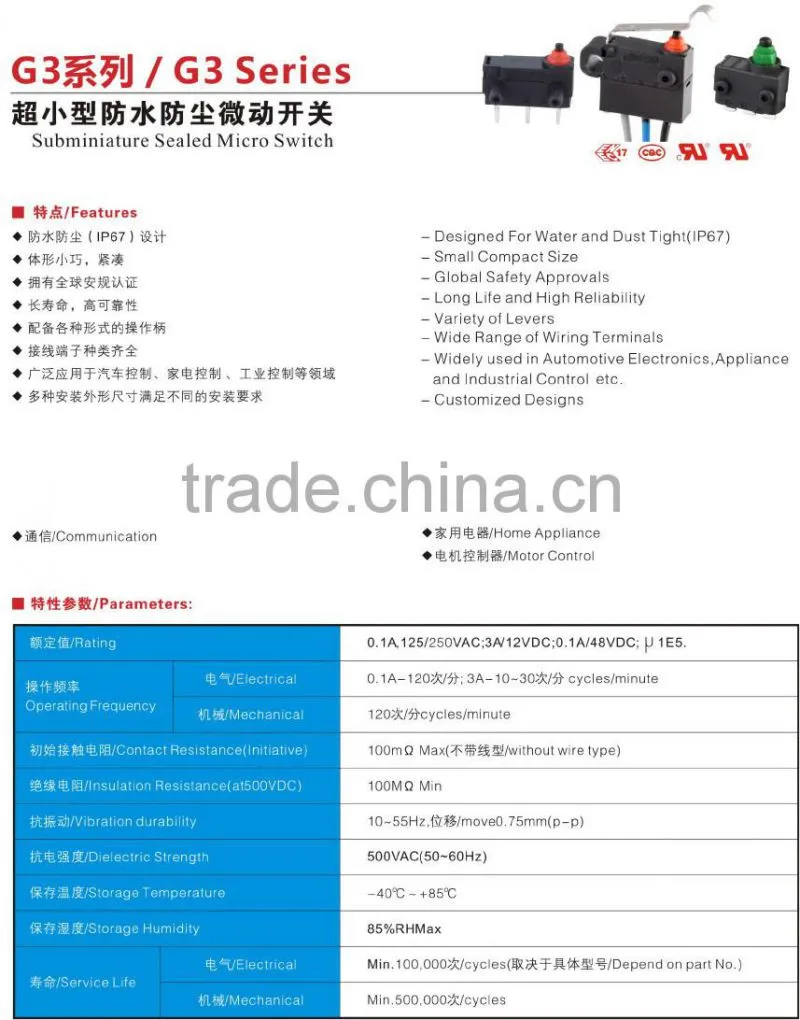

2. Parameters:
Rating | 0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5. | |||||||||||
Operating Frequency | Electrical | 0.1A-120; 3A-10~30cycles/minute | ||||||||||
Mechanical | 120cycles/minute | |||||||||||
Contact Resistance(Initiative) | 100mΩ Max | |||||||||||
Insulation Resistance(at 500VDC) | 100MΩ Min | |||||||||||
Vibration durability | 10~55Hz,move 0.75mm(p-p) | |||||||||||
Dielectric Strength | 500VAC (50~60Hz) | |||||||||||
Storage Temperature | -40°C~+85°C | |||||||||||
Storage Humidity | 85% RH Max | |||||||||||
Service Life | Electrical | 6,000~500,000cycles | ||||||||||
Mechanical | Min.500,000cycles |
3. Overview of Greetech:
l FAQ:
Q1. Are you a trading company or manufacturer?
à Greetech is a manufacturer specialized in micro switches, keyboard switches, air pressure switches and automotive switches over 30 years.
Q2. What safety approvals do your products have?
à All our products (except keyboard switch) have UL, CUL, ENEC & CQC approved
Q3. Do your products comply with RoHS & Reach?
à Yes, 100% of our products comply with RoHS and Reach.
Q4. What quality assurance system does your plant have?
à We are qualified by SGS with ISO9001 & TS16949 quality systems.
Q5. How long is your product warranty?
à Generally, 2 years after product has been shipped out.
Q6. Will you provide some samples for free? How about the ship way to customer’s destination?
à A) Yes, our free samples will be:
- Common micro switches: 5~10pcs
- Waterproofed micro switches (other high value products): 1~2 pcs
- Keyboard switches: totally, no more than 110pcs (one keyboard).
B) Ship way to customer:
a. To ship by customer’s express account, like UPS, DHL, Fedex, TNT etc.
b. To pay us the shipment cost to ship out by UPS, DHL, Fedex, TNT etc, which is more economical and convenient.
Q7. What’s the capacity per month?
à a. For micro switch series, our capacity is about 8 million pcs per month.
b. For keyboard switch series, it is about 20 million pcs per month.
Q8. Where is your plant?
à We are located in Huizhou city of Guangdong province, China.
Q9.How far is from Shenzhen & HK airport to your factory?
àAbout 70 minutes by car from Shenzhen airport and about 2hrs from HK airport.
