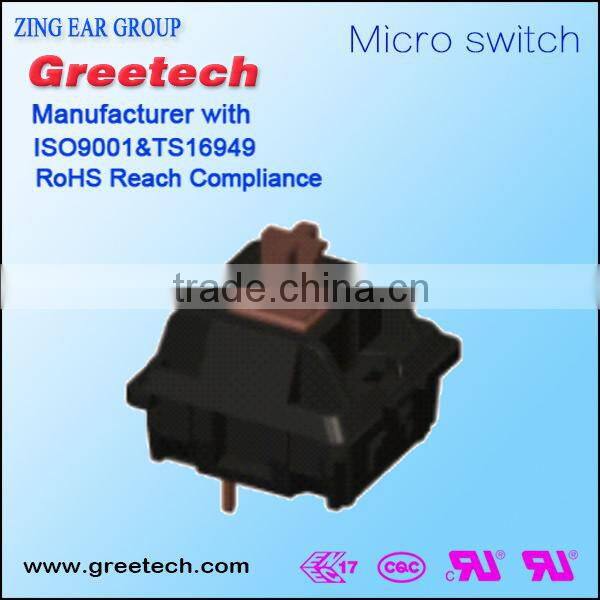

Greetech brown Keyboard Switch with Model No. GT02A1BNW
Features:
- Desktop profile,0.60 inch(15.2mm)from PCB(no keycap)
- Choice of feel: linear,soft tactile,click tactile

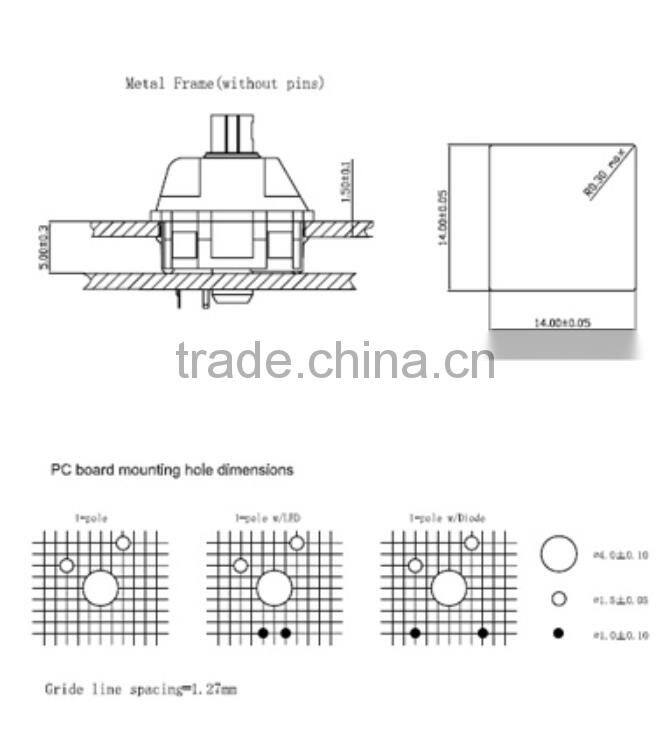

- PCB or frame mount
- Long life 50 million operations
- LED,diode or jumper option
- 12V maximum AC/DC
- Current Rating: 10mA
- Insulation Resistance:<100M Ω at 100V DC

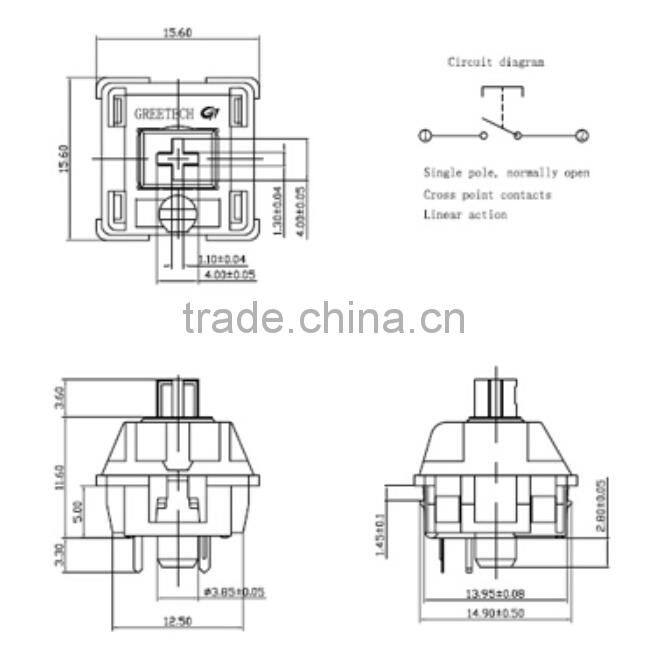

Drawing
Parameters
| Electrical Characteristics | Rating | 12VDC/AC max. 10mA AC/DC max |
| Contact Resitance | 200MΩ max (25MΩ typical )(initial value) | |
| Insulation Resistance | 100MΩ Min | |
| Voltage Resistence | AC 100V (50-60Hz) 1Minute | |
| Eletrical life | Over 50,000,000 cycles (Load) | |
| Bounce Time | 400mm/s 5msec (operation speed at 400mm/spec) | |
| Mechanical Reliability | Operating Force | See Detail Spec |
| Pre-travel | 2.0+/-0.6mm | |
| Total Trave | 4.0+/-0.4 | |
| Mechanical Life | Over 50,000,000 cycles (No Load) | |
| Operating Temperature Range | (-40℃~ + 80℃) | |
| Ambient Humidity | </= 85% RH max | |
| Solder ability | 260℃+/-5℃ 3S+/-0.5S | |
| Soldering Heat Resistance | 260+/-5℃ 3S+/-1S | |
| Soldering by hand | Use a 30 watts soldering iron for about 3S at 350 ℃ while soldering | |
| Trade Terms |
1.The price is based on FOB Shenzhen or Hongkong or EXW factory 2.MOQ:5000pcs Payment:T/T payment,50% deposit before production, balance 50% before shipment |
|
| Certificates |
ISO9001&TS16949 ENEC UL CUL &CQC RoHS & Reach |
|
Solding Parameters
| 1.Flux Station |
| A.Flux-Fry type GR8 |
| B.Applied by foaming |
| C.Specific gravty-0.820 g/cm3 |
| 2. Conveyor Speed |
| A. 2.3 meters/min |
| 3. Pre-heat Temperature |
| A. +85℃ measured on top surface of PCB |
| 4. Solder |
| A.63/37 alloy |
| B. Dry wave-no oil |
| C.Approximate contact with wave-2 seconds |
| 5.Cleaning |
| A. Fry GR8 is non-hygroscopic flux and does not require cleaning |
|
B. If cleaning is required on isolated areas such as finger connector,cold cleaning by hand with Alpua 564 is recommended,Care must be taken to avoid solvent entering the keymodle. |
Application
Mainly applied on computer keyboards,cash registers,industrial equipment and Man-Machine interfaces.
Related products
Packing List
| o. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business Partner
Trade Record
Exhibition and Customer Visiting
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
