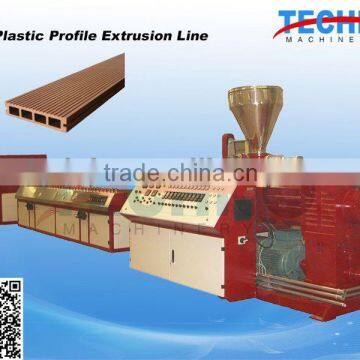

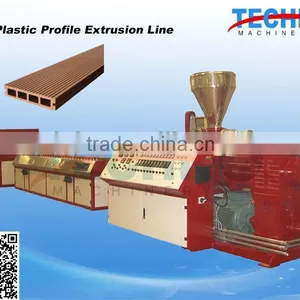

PVC Wood Plastic Door Panel Production Line (WPC Machinery)
- 5 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Profile | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | High Automation | Place of Origin: | Jiangsu, China |
Brand Name: | Techno | Model Number: | TECWPC | Voltage: | 220-480V |
Power(W): | 20-220KW | Dimension(L*W*H): | L24000*W1800*H2200mm | Weight: | 20000KGS |
Certification: | CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PVC Wood Plastic Door Panel Production Line (WPC Machinery)
Product Processing Flow
Raw material+Wood powder+Additive → Mixing → Granules → Conical twin screw extruder → Extrusion mould → Calibrator → Spray cooling → Cut-off Saw→ Rack → Finished product inspecting and packing
Combination of Wood-Plastic
Thermoplastic-HDPE,LDPE,PP,PVC
Wood Flour-20-60 mesh
Lubricants, Pigments, Coupling agents, other additives
Features of PVC Wood Plastic Door Panel Production Line
WPC profile production line uses specially designed screw and controlling system ensure excellent plasticization and stable extruding.
This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
The new wood plastic composite functions same as natural wood,but with better performance.Resistant to water,corrosion and mildew.Ideal for applications in high moisture environments.Recyclable to meet environmental protection requirements.
Technical Parameters of PVC Wood Plastic Door Panel Production Line
Extruder model | SJZ55/110M | SJZ65/132M | SJZ80/156M | SJZ92/188M | |||
Main motor Power (Kw) | 22 | 37 | 55 | 110 | |||
Auxiliary Equipment | YF240S | YF240A | YF300A | YF600 | YF900 | YF1200 | |
Production Width (mm) | Max240 | Max240 | Max300 | Max600 | Max900 | Max1200 | |
Vacuum Pump(Kw) | 2*5.5 | 4*5.5 | 4*5.5 | 4*5.5 | 1*7.5 2*11 | 1*7.5 2*11 | |
Water Pump(Kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | |
Hauling Speed | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 | |
Auxiliary Equipment Power | 22 | 35 | 35 | 44 | 52 | 62 | |
Output(kg/h) | 70 | 120 | 120 | 180 | 400 | 400 |
Loader of PVC Wood Plastic Door Panel Production Line
Twin Screw Extruder of PVC Wood Plastic Door Panel Production Line
Calibrating Table of PVC Wood Plastic Door Panel Production Line
Cutter of PVC Wood Plastic Door Panel Production Line
Tilting Stacker of PVC Wood Plastic Door Panel Production Line
Standard Export Seaworthy Packing PVC Wood Plastic Door Panel Production Line
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
