WPC Decorative Outdoor Wood Plastic Composite Board Machine
Processing Flow
Raw material+Wood powder+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibration bath → Belt haul off → Cutter → Tilting Stacker → Finished product inspecting and packing
Features of WPC Decorative Outdoor Wood Plastic Composite Board Machine
WPC profile production line uses efficient extrusion equipment which is of stable extruding and energy saving.
The screw barrel of extruder has unique internal structure with 38CrMoAlA alloy steel surface coating.
The cooling method of screw core adopts oil thermostatic system with automatic temperature control,so that the material can achieve the best plasticized state.
This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.
Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
Technical Parameters of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Extruder model |
SJZ55/110M |
SJZ65/132M |
SJZ80/156M |
SJZ92/188M |
|||
|
Main motor Power (Kw) |
22 |
37 |
55 |
110 |
|||
Auxiliary Equipment |
YF240S |
YF240A |
YF300A |
YF600 |
YF900 |
YF1200 |
|
Production Width (mm) |
Max240 |
Max240 |
Max300 |
Max600 |
Max900 |
Max1200 |
|
Vacuum Pump(Kw) |
2*5.5 |
4*5.5 |
4*5.5 |
4*5.5 |
1*7.5 2*11 |
1*7.5 2*11 |
|
Water Pump(Kw) |
1.5 |
4 |
4 |
7.5 |
7.5 |
7.5 |
|
Hauling Speed |
0-5 |
0-5 |
0-5 |
0-3 |
0-2.5 |
0-2.5 |
|
Auxiliary Equipment Power |
22 |
35 |
35 |
44 |
52 |
62 |
|
Output(kg/h) |
70 |
120 |
120 |
180 |
400 |
400 |
|
Main Configuration of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Item |
Machine |
QTY |
1 |
Auto loader |
1 set |
2 |
Double-Screw Extruder |
1 set |
3 |
Extrusion and calibration moulds |
Each one set |
4 |
Calibration table |
1 set |
5 |
Hauling-off Machine |
1 set |
6 |
Online holes-punching machine |
1 set |
7 |
Cutting machine |
1 set |
8 |
Stacker |
1 set |

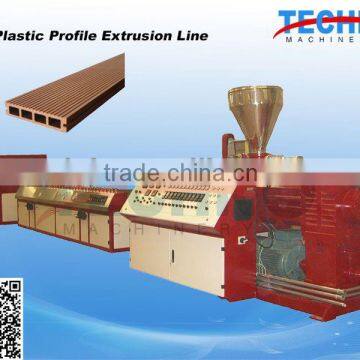

Twin Screw Extruder of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Calibrating Table of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Cutter of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Tilting Stacker of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Finished Board of WPC Decorative Outdoor Wood Plastic Composite Board Machine
Standard Export Seaworthy Packing WPC Decorative Outdoor Wood Plastic Composite Board Machine
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
