SRL-Z PVC Mixing Unit
Description:
1. Used for the processes of compounding mixing, drying and dying as one of the most ideal equipment for the manufactures of profiles and tubes.
2. The cold mixer adopts vertical structure with the characteristics of large cooling area, fast speed, more homogenized. .
3. The mixer lid is double sealed and opened in the pneumatic way.
4. The electric control system dapots RKC, Stemens, Mitsubishi, Omron and other famous instruments and control components to realize automatic control.
5. Equipped with pulse dust catching device. (on customer's option).
6. Both the blades and belt wheel have been specially treated through the balancing machine of static and dynamic.
7. Simple loading system can also be equipped on customer's option
Technical parameter of PVC mixer:
Model | Total volume(L) | Effective volume(L) | Motor Power(kw) | Main shaft speed(rpm) | Heating method | Discharge method |
| SRL-Z50/100 | 50/100 | 32/75 | 7/11/5.5 | 750/1500/180 | Self-friction OR Electric heating | Pneumatic |
| SRL-Z100/200 | 100/200 | 70/140 | 11/22/7.5 | 650/1300/150 | ||
| SRL-Z200/500 | 200/500 | 140/250 | 30/42/11 | 550/1100/90 | ||
| SRL-Z300/600 | 300/600 | 210/420 | 40/55/11 | 475/950/90 | ||
| SRL-Z500/1000 | 500/1000 | 350/700 | 55/75/15 | 430/860/60 | ||
| SRL-Z800/1600 | 800/1600 | 600/1024 | 83/110/22 | 370/740/50 |

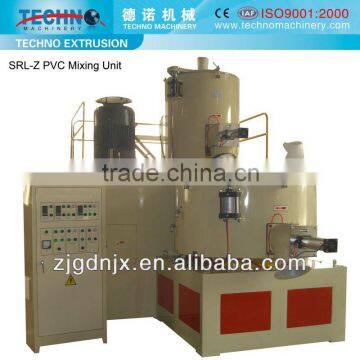

Pictures of equipment:
