Home > Products > Plastic Straw Machinery > Plastic PP Drinking Straw Making Machine for Beverage Industry
Plastic PP Drinking Straw Making Machine for Beverage Industry
- shanghai port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | TECHNO | Model Number | DNSS | |
| Voltage | 220-480v | Power(W) | 21kw | |
| Dimension(L*W*H) | 2*8m | Weight | 1.8T | |
| Certification | CE ISO | Warranty | 12months from the B/L | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PP/pe Drinking Straw making machine for beverage industry

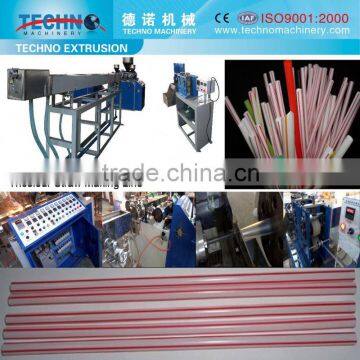

Drinking straw extrusion line (high speed model)
Two colors and three colors drinking straw extrusion lines for your reference
Drinking straw cooling tank
Description:
DNYL series high speed drinking straw extrusion plant is our new design in 2010.We have adopted the screw diameter 50mm instead of the screw diameter 45mm,and L:D is 28:1.
The new design will more easy to plasticizing and increase the production capacity.Drinking straw extrusion line It is an economic and perfect machine for produce the straw.
Characteristics for Drinking straw extrusion line:
Colours: Single,two, three or five, spiral stripes, straight stripes.
Cut-end:90°/90°,90°/45°,90°/60°,45°/45°,60°/60°
All the direct contact parts made from stainless steel.
The cutting unit adopted the big plate cutter and with automatic gathering system.
The breaker ,AC contactor and knob switch brand is SCHNEIDER
The inverter brand is DELTA
Technical data of Drinking straw extrusion line:
Colour | Single | Two | Three |
Diameter of screw: | 50mm | 50mm+1x25mm | 50mm+2x25mm |
L:D | 28:1 | 28:1 / 20:1 | 28:1 / 20:1/20:1 |
Max. extrusion capacity | 35kgs/h | ||
Material | PE / PP | ||
Specification of straw | Diameter.:φ2- φ 14mm | ||
Length tolerance:± 0.1 -1mm | |||
Thickness:0.05-1mm | |||
Capacity | 30000-60000pcs/h | ||
Power of extruder | 11kw,380v,50hz | 11kw+0.75kw,380v,50hz | 11kw+2x0.75kw,380v,50hz |
Power of hauling machine | 0.75kw,380v,50hz | ||
Power of cutter | 0.75kw,380v,50hz | ||
Power of gathering system | 0.18kw,380v,50hz | ||
Temperature controlling | 5 sections | 8 sections | 11 sections |
1.DN-L2 Double color straw extrusion line/Drinking straw extrusion line
Model | DN-L2 |
Raw materials | PP |
Color of the drinking straws | Transparent, one color straw with one color strip |
Driving motor | 11kw control by frequency converter |
Haul off and cutting unit | 0.75kw*2 |
Main screw | Diameter:50mm Rate of L/D 28:1 |
Assistant screw | Diameter:25mm Rate of L/D 20:1 |
Forming& cooling unit | 3.6M cooling tank |
Automatic temperature controller | 4 pcs |
Total power | 21kw |
Actual powder | 14kw |
Straw specifications | Diameter:2~12mm mould can be optional Length: 3~1000mm Length tolerance:±1mm |
Capacity | 20~25kg/h |
Figure size of the line | 2m*8m |
Weight | 1.8T |
plastic drinking straw shipping and loading
Techno Machinery Factory show pp drinking straw extrusion line manufacturer

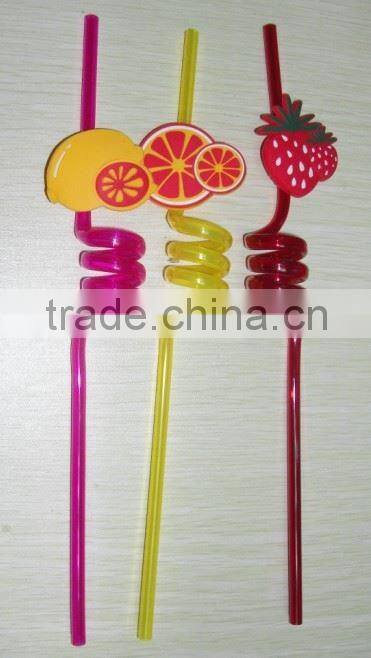

PP straws shown:

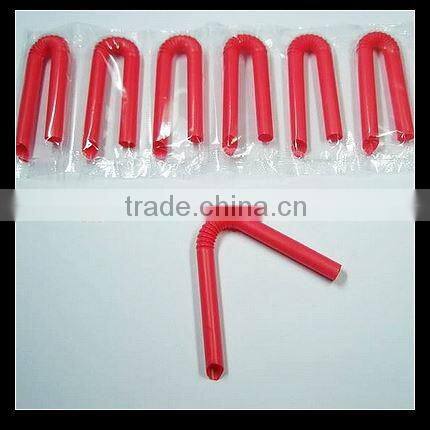

Flexiable drinking straw
