customized smart home automation system smart distribution box app remote control for home
Main Features:
l Monitor function: shows the voltage, current, power and energy consumption of each circuit constantly
l Statistical Function: calculate the total energy consumption and monthly energy consumption of each circuit
l Caution function: over load protection, when the circuit is overload to its pre-set load, it will set alarm
l Clock function: display time, date
l Lightning protection device
l Performance test to home appliances
l Energy saving and environmental
l Standard design, Easy installation
l Fashionable shape design, different color face integrated with different home decorative style
product picture

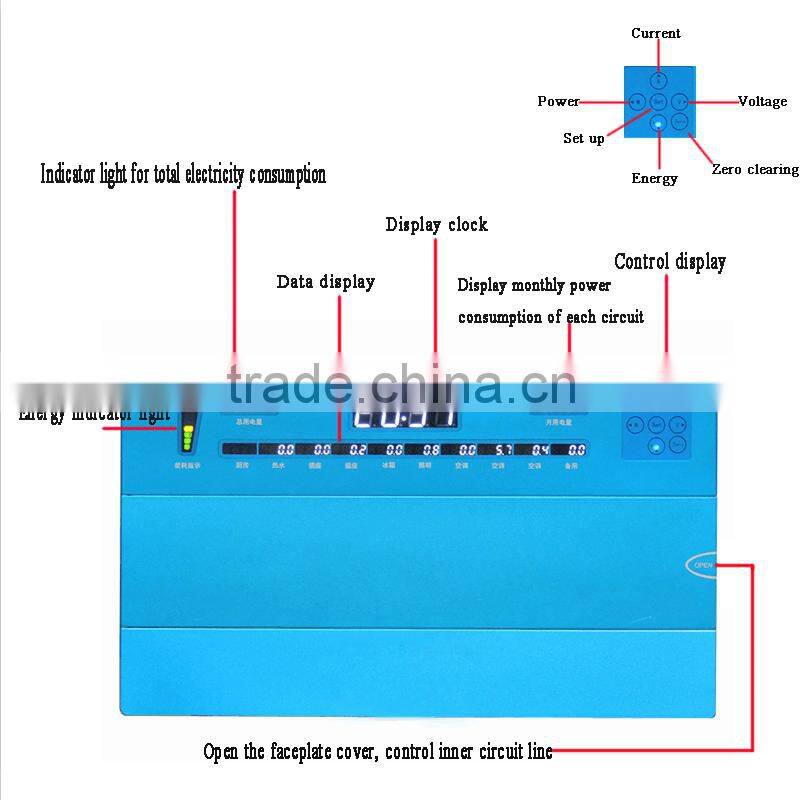

Function instrution
1. Energy indicator light
A: There is three colors stand for three levels, blue means low energy consumption, orange means moderate energy, red means high energy consumption.
B: the indicator light has seven degrees, each degree stands for 1000W, when the signal shows the seventh level, it means the energy capacity has exceeded 56A/12.3W, the consumption is 12kw/h, it will set alarm three seconds one time.
2. indicator light for total electricity consumption:it shows electricity quantity once it is installed, when it reaches 99999kw, all data will be cleared zero then start to calculate again(normal show year like 2015)
3.data display: display electrical condition of each circuit
A: display current of each circuit with am, the smallest current showed is 0.1A
B: display power or energy consumption condition of each appliance with unit W, the smallest showed is 1W
C: display appliance’s power of each circuit, power condition can be set up with zero clearing freely to know detailed power consumption in certain time
D: display voltage of each appliance timely
4.display clock, easy to set up through the touch display screen on the right( the time is always at work
5.display monthly power consumption of each circuit( normal state shows every date like 08-10)
6. control display: control and set clock, energy condition, power consumption
7. open the faceplate cover control inner circuit line

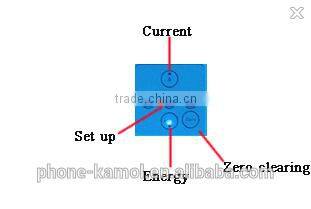

Operation for face display
1: Time setup: press the setup button 5 seconds ,Time display flush; Press the button left and right, down and up to adjust time and date.
2: Energy zero clearing setup :press the zero button 5 seconds, energy display screen flushes, then move left and right button to choose those lines you want to clear, each circuit line is separately operated, then press the zero clearing button, the date will be zero, also monthly energy can clear zero, too. (Remarks: Total energy consumption data cannot be cleared)
3: Current button: Soft touch current button to show its current condition at present of each circuit line with indicator light
4: Power button: Soft touch power button to show its power condition at present of each circuit line with indicator light
5: Voltage button: Soft touch voltage button to show its voltage condition at present of each circuit line with indicator light
6: Energy button: soft touch power button to show its energy consumption condition at present of each circuit line with indicator light(it also can clear zero of each line through zero clearing button)

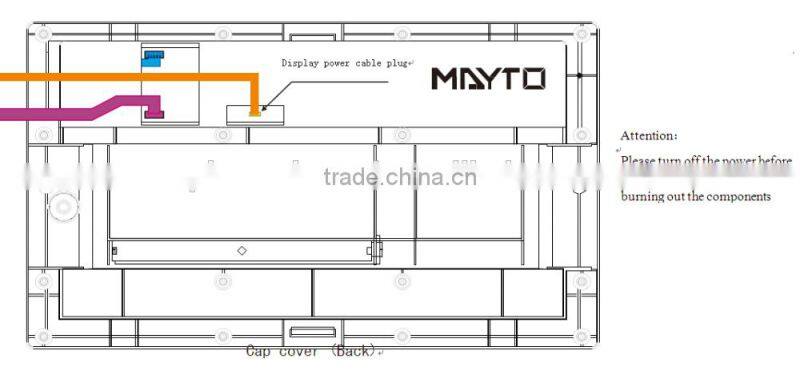

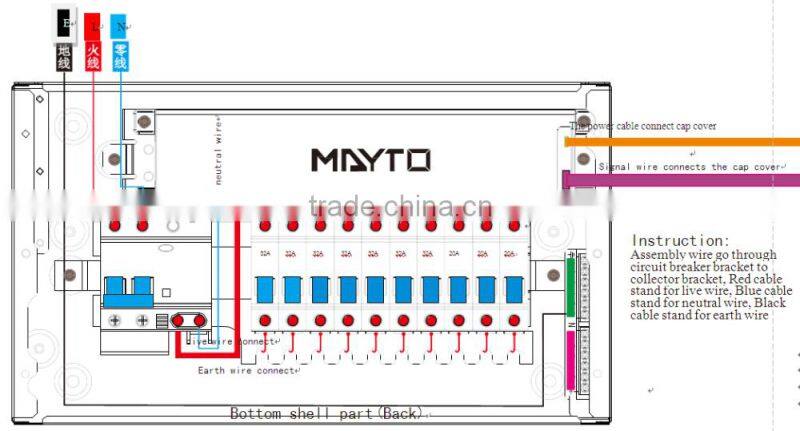

how to install?
where it installled?
|
Accept PayPal , T/T, West Union. You also can make a order on online. |
|
1.Sample within 1-2days 2.Small order wholesale in 3days 3.OEM 7-10days 4.ODM order 15 days |
| s |
|
When you receive the products ,in 15 days have any problems you can refund. 12 months for whole kit 6 months for accessories |
1PCS: wholesale box
G/W:5 kg
shipping terms: fedex, ups, dhl or ems

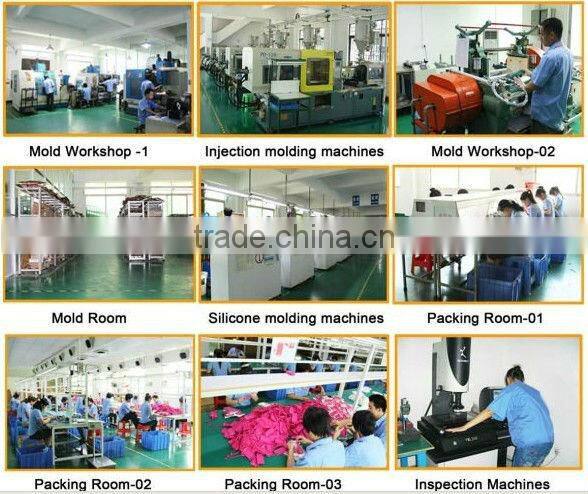

Shenzhen Jingze Technology Co.,Ltd., located in Baotian Industrial Park of Bao'an District, Shenzhen. Its factory owns an area of as much as 4,000 square meters. We are a hi-tech enterprise of research development, manufacturing and marketing as a whole, our factory owns a rich and competitive R&D teams, and brings into advanced manufacture & test equipments from oversea and domestic. Main products of Electronic business division is USB Wall Socket
