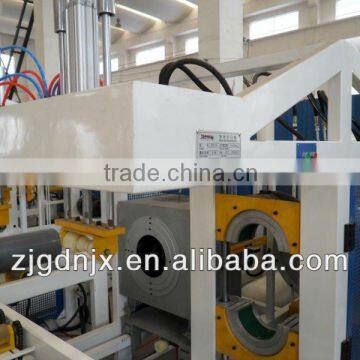

PVC Pipe Socketing Machine
Description:
1.plastic pipe belling machine
2.belling type: Z type and R type
3.PVC pipes
Fully automatic belling machine is suitable for the U-PVC belling. Shapingway adopts rising in the mould and rises and increasing the barometric pressure out of the mould to make it stereotypic.
Model |
Belling Scope |
Total Power |
G.W. |
Overall dimensions (mm) |
Belling-type |
SGK75S |
Φ16mm-Φ75mm |
7kw |
1500kg |
7460×1950×1900 |
U type |
SGK110 |
Φ20mm-Φ110mm |
7kw |
1300kg |
7460×1550×1900 |
U or R type |
SGK160 |
Φ40mm-Φ160mm |
18kw |
2300kg |
7000×1530×1963 |
R-type Smooth-type |
SGK250 |
Φ50mm-Φ250mm |
18kw |
2500kg |
7300×1730×1950 |
R-type Smooth-type |
SGK315 |
Φ110mm-Φ315mm |
25kw |
2800kg |
7500×1930×2100 |
R-type Smooth-type |
SGK400 |
Φ160mm-Φ400mm |
25kw |
3000kg |
7900×2140×2125 |
R-type Smooth-type |
SGK630 |
Φ315mm-Φ630mm |
32kw |
3500kg |
8423×2970×2650 |
R-type Smooth-type |
SGK1000 |
Φ500mm-Φ1000mm |
50kw |
8000kg |
10000×4600×2570 |
R-type Smooth-type |
Main technical parameters :
Model |
SGK |
|
Belling Scope |
Φ16mm-Φ1000mm |
|
Belling-type |
R-type, Square-type and Smooth type |
|
Pipe Length |
3m-8m |
|
Use Voltage |
AC 380V; 50Hz (Or according to customer's request) |
|
Central Height |
According to customer's request |
|
Molding mode |
R-type |
with collapsible core |
Smooth type |
Pushing mould directly into pipe |
|
Cooling mode |
Air-cooled or Water cooled |
|
