PVC Pelletizing Production Line
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | TERQ | |
| Voltage | 220-480V | Power(W) | 37-100KW | |
| Dimension(L*W*H) | 4500*1500*2200 | Weight | 5000KGS | |
| Certification | CE/ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PVC Pellets Production Line
PVC Pelletizing Production Line

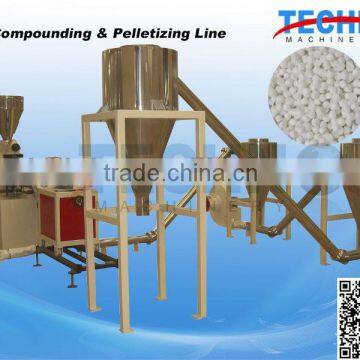

Illustration of PVC Pelletizing Production Line
PVC Pelletizing Line is composed of twin screw extruder and corresponding auxiliary machinery. The produced granules are uniform and dense. Auxiliary machinery adopt die surface pelletizing,wind conveying and cooling system with high degree of automation,precise cutting,efficient output and other characteristics. PVC compounders are widely used in Cable, Pipe Producing, Medical Hose, WPC Pelletiizng,etc.
Main Parameter of PVC Pelletizing Production Line
Type | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | |||
Screw Diameter(mm) | 55/110 | 65/132 | 80/156 | 92/188 | |||
Screw Quantity(mm) | 2 | 2 | 2 | 2 | |||
Direction of Screw Rotation | Different direction, Outward direction | ||||||
Screw Speed(rpm) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 | |||
Effective Screw Working Length(mm) | 1200 | 1440 | 1800 | 2500 | |||
Main Motor Power(kw) | 22 | 37 | 55 | 90 | |||
Barrel Heating Power(kw) | 18 | 24 | 36 | 86.8 | |||
Output(kg) | 80-140 | 250-300 | 320-450 | 500-600 | |||
Center Height(mm) |
| 1000 |
| 1200 | |||
Weight(kg) | 3500 | 4000 | 5000 | 10000 | |||
Dimension(mm) | 3620×1050×2157 | 4235×1520×2450 | 4750×1550×2460 | 6725×1550×2841 | |||
The Whole Line of PVC Pelletizing Production Line
Auxiliary Machinery of PVC Pelletizing Production Line
Standard Export Seaworthy Packing PVC Pelletizing Production Line
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
