Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > ST52.4 DIN2391 Seamless Honed Tubes Hydraulic Cylinder

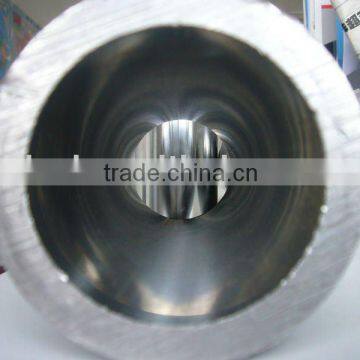

ST52.4 DIN2391 Seamless Honed Tubes Hydraulic Cylinder
US$ 1,500 - 2,500
MOQ: 5 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
4, 70
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JIS STKM13C Seamless Honed Tubes Hydraulic CylinderUS$ 1,500 - 2,500MOQ: 5 Tons -
GB/T8713-88 20# Seamless Honed Tubes Hydraulic CylinderUS$ 1,500 - 2,500MOQ: 5 Tons
-
GB/T8713 C20 Seamless Honed Tubes Hydraulic CylinderUS$ 1,500 - 2,500MOQ: 5 Tons
-
Precision Steel Tube for Hydraulic and Pneumatic CylinderUS$ 1,500 - 2,500MOQ: 5 Tons
-
Tubes for Enginerring MachineryUS$ 1,500 - 2,500MOQ: 5 Tons
Thickness
4, 70
Section Shape
Round
Outer Diameter
25 - 325 mm
Place of Origin
Shandong, China
Secondary Or Not
Non-secondary
Application
Hydraulic Pipe
Technique
Cold Drawn
Certification
CE
Surface Treatment
Other, Black paint
Special Pipe
Thick Wall Pipe
Alloy Or Not
Non-alloy
Specifications
Cylinder material 20# 45# 16Mnsize range(I.D): 30mm~500mm
ID tolerance: ISO H8
Roughness:0.4 micron
Straightness: 0.8/1000
Cold-Drawn Steel Tube of high-precison used hydraulic ram amd pneumatic liner actuator
Biggest manufacturer in china.
size range(I.D): 40mm~400mm
ID tolerance: ISO H8
Roughness:0.4 micron
Straightness: 0.8/1000
Biggest manufacturer for cyliner tube in china.
the size range(I.D): 63mm~250mm
The tolerance of O.D: According to DIN 2391( EN10305-1)
I.D: ISO H8.
Roughness:0.4 microns(max), average: less than 0.2 micron
The max length: 9m.
Straightness: 0.8/1000 or better.
Delivery condition: ST52 BKS, E355 SR.
Certificate: EN10204 3.1
Steel grade: ST 45,ST 52, E355,SAE1026,SAE1045 STKM13C and etc
Note :The chinese grade 20# 45# 16Mn 27SIMn
Standard: GB/T8716-88 Gb/T3639-2000 DIN 2391 EN10305
