Home > Industrial Equipment & Components > Engine & Part > Engine > 480HP Marine Diesel Engine Inboard Engine
480HP Marine Diesel Engine Inboard Engine
US$ 1 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzheng
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Diesel Engine Inboard EngineUS$ 1 - 15,000MOQ: 2 Sets -
240HP Marine Diesel EnginesUS$ 1,000 - 20,000MOQ: 1 Set
-
350HP Marine Diesel Engine InboardUS$ 1 - 9,999MOQ: 1 Set
-
380HP Marine Diesel Engine Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set
-
540HP Inboard Diesel Engine Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
1880X1000X2860mm

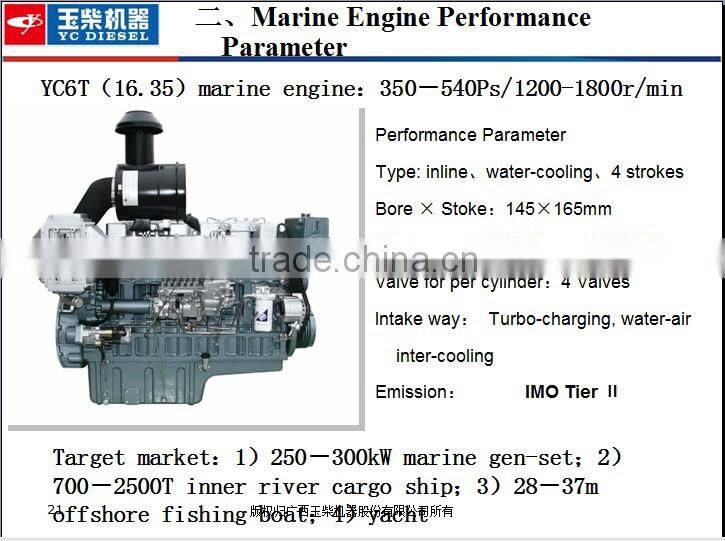

YC6T Series Marine engine Technical Parameters:
| 1800rpm main technical parameters | ||||||
| Model | YC6T390C | YC6T420C | YC6T480C | YC6T510C | YC6T540C | YC6T380C |
| Type | 6 cylinders ,Vertical in line water cooled four-stroke direct-injection | |||||
| Number of cylinders bore*stroke | 6*145*165mm | |||||
| Intake way | Turbo and charge air cooled | |||||
| Displacement (L) | 16.35 | |||||
| Compression ratio | 15.5:1 | |||||
| Continuous Power/Speed (Kw/r/min) | 287(390)/1800 | 309(420)/1800 | 352(480)/1800 | 375(510)/1800 | 396(540)/1800 | 279(380)/1200 |
| One-hour Power/Speed (Kw/w/min) | 315(429)/1858 | 340(462)/1858 | 387(528)/1858 | 413(561)/1858 | 436(594)/1850 | 307(418)/1238 |
| Min.specific fuel consumption | 195(g/kw.h) | |||||
| Specific oil consumption | <1.0(g/kw.h) | |||||
| Oil Capability (L) | 52 | |||||
| Min.steady speed (r/min) | 700 | 540 | ||||
| Rotation direction | counterclockwise | |||||
| Starting | Electric motor | |||||
| Net Mass (kg) | 1960 | |||||
| Overall dimensions (mm) | 1880*1000*1860 | |||||
| Reduction gearbox to be matched | 300 J300 D300 | |||||
| Certificate | ZC ZY CCS | |||||
| Model | YC6T375C | YC6T400C | YC6T410C | YC6T450C | YC6T300C | YC6T350C |
| Type | Vertical in line water cooled four-stroke direct-injection | |||||
| Number of cylinders bore*stroke | 6*145*165mm | |||||
| Intake way | Turbo and charge air cooled | |||||
| Displacement (L) | 16.35 | |||||
| Compression ratio | 15.5:1 | |||||
| Continuous Power/Speed (Kw/r/min) | 276(375)/1500 | 294(400)/1500 | 300(410)/1500 | 330(450)1500 | 220(300)/1200 | 257(350)/1200 |
| One-hour Power/Speed (Kw/w/min) | 304(413)/1548 | 323(440)/1548 | 330(451)/1548 | 363(495)/1548 | 242(330)/1238 | 283(385)/1238 |
| Min.specific fuel consumption | 195(g/kw.h) | |||||
| Specific oil consumption | <1.0(g/kw.h) | |||||
| Oil Capability (L) | 52 | |||||
| Min.steady speed (r/min) | 675 | 540 | 540 | |||
| Rotation direction | counterclockwise | |||||
| Starting | Electric motor | |||||
| Net Mass (kg) | 1960 | |||||
| Overall dimensions (mm) | 1880*1000*1860 | |||||
| Reduction gearbox to be matched | 300, J300 D300 | |||||
| Certificate | ZC ZY CCS | |||||
| Yuchai marine engines include nine series, i.e.YC6C,YC6T,YC6M,YC6A,YC6B,YC6108,YC6105,YC4D and YC4F, with a power coverage | ||||||
| of 32 to 880KW featuring with lower fuel consumption,smaller vibration,lower noise,higher reliability and stronger power. | ||||||
| They are used as the ideal power for speedboats,cargo ships ,passenger ships and fishing vessels. | ||||||
| Yuchai diesel engine products for power generator & gensets include several series,such as YC6C,YC6T,YC6M,YC6A,YC6B,YC6J | ||||||
| YC6G,YC4D,YC4F which are the ideal matching power for gensets with capacity of 24-600KW | ||||||
| The fully new T series dieesel engine is designed by YuChai Machinery Co.Ltd. Itself to satisfy the need. of the marketFEV, | ||||||
| the famous engine technology corporation in German,comblined with the advanced designing ideal,technology and the experience | ||||||
| of Yuchai,it is developed reliably.This series diesel engine has characteristics such as wide power range,low emissions,low | ||||||
| BSFC, low noise,high reliability and universal applicability. | ||||||
| YC6T series marine diesel engine is redesigned based on the YC6M series vehicle diesel engine in light of operation require | ||||||
| ment and structure feature of the marine diesel engine.The reformed engine has the advantages such as high reliability,large | ||||||
|
power output and good fuel economy.It becomes the ideal power for freight and passenger ship.
|
||||||
