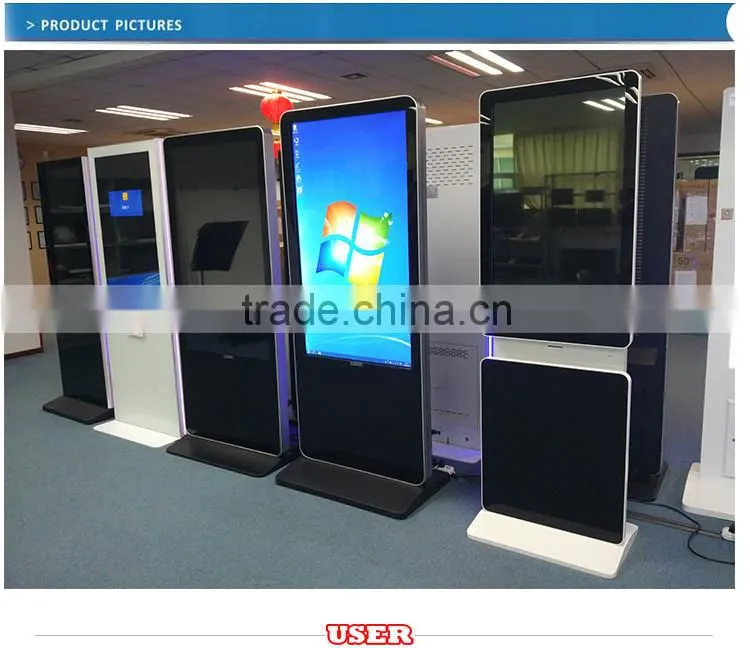

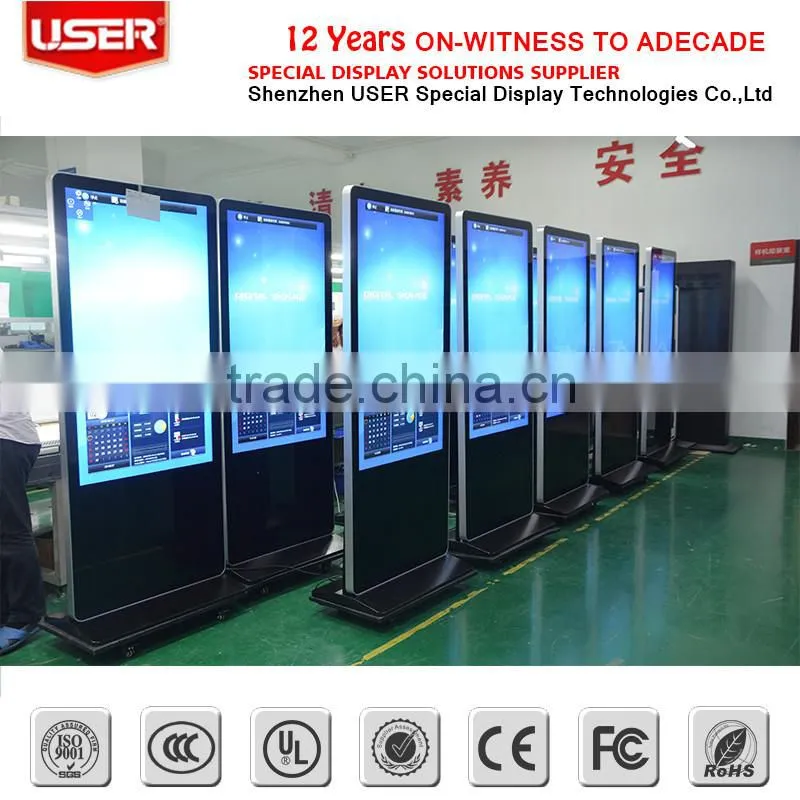

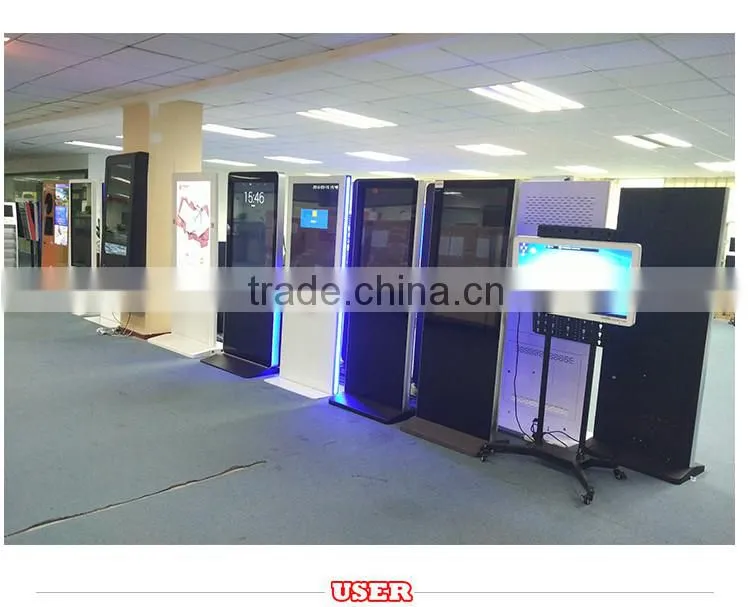

42 Inch Network Player Lcd Commercial Portable Digital Signage
Specification
High quality touch screen
Size: 26" TFT-LCD(LG)
Brightness:400cd/m2
Contrast: 3000:1
Interface: VGA,HDMI,AV,DVI,CVBS,TV,YPbPr ,PC
A grade original panel from Samsung/LG//AUO
support OEM
Product Description for 42 Inch Network Player Lcd Commercial Portable Digital Signage
| Specifications | |||||||||
| Model No. | US-T26HC | ||||||||
| Panel size | 26" TFT-LCD | ||||||||
| Display area(mm)/mode | 273(W)×338(H) 4:3 | ||||||||
| Maximum resolution | 1024×768 | ||||||||
| Display color | 16.7M | ||||||||
| Pixel Pitch(mm) | 0.297(H)×0.297(V) | ||||||||
| Brightness (nits) | 400cd/m*m | ||||||||
| Contrast | 3000:1 | ||||||||
| Visual angle | 178°/178° | ||||||||
| Response time | 8ms | ||||||||
| Horizontal frequency | 50-70KHZ | ||||||||
| Vertical frequency | 56-75KHZ | ||||||||
| Life(hrs) | >60,000(hrs) | ||||||||
| Touch Panel | |||||||||
| Specification | Infrared touch | ||||||||
| Positioning accuracy |
±2mms | ||||||||
| Transmittance | 92% | ||||||||
| Hardness | 7H | ||||||||
| Click manner | double point/mult-point(optional) | ||||||||
| Response time | ≤10ms | ||||||||
| Output Resolution | 4096X4096 | ||||||||
| Life time | Single point of more than 600 million times |
||||||||
| Input and output | |||||||||
| VGA input | 2 | ||||||||
| CVBS input | 2 | ||||||||
| YPbPr input | 1 | ||||||||
| TV | 1 | ||||||||
| HDMI | 4 | ||||||||
| USB2.0 | 6 | ||||||||
| LAN | 1 | ||||||||
| PC Audio | 1 | ||||||||
| Audio(L/R) input | 1 | ||||||||
| Audio(L/R) output | 1 | ||||||||
| Speaker | 2×10W(8 ohm) | ||||||||
| Video | |||||||||
| Color system | PAL/NTSC/SECAM | ||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | ||||||||
| 3D Comb filter | Yes | ||||||||
| Video reduction noise | Yes | ||||||||
| OSD display( screen menu display) | |||||||||
| Menu language | Chinese/English | ||||||||
| Power | |||||||||
| Power supply | AC100V~240V,50/60Hz | ||||||||
| Maximum power consumption | 230W | ||||||||
| Standby power consumption | 3W | ||||||||
| Temperature | |||||||||
| Working temperature | 0℃~50℃ | ||||||||
| Storage temperature | -10℃~60℃ | ||||||||
| Working humidity | 20%~80% | ||||||||
| Storage humidity | 5%~95% | ||||||||
| Appearance | |||||||||
| Cabinet color/appearance | White, black, customized | ||||||||
| Cabinet material | SPCC/Aluminum/Customized | ||||||||
| Installation | Floor-standing | ||||||||
| Bulk Order Leading time | within 21working days | ||||||||
| Payment terms | T/T | ||||||||
| Warranty | 1year | ||||||||
| Valid time | 10days | ||||||||
Products application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
Shenzhen USER Special Display Technologies Co., Ltd. established in 2003, is a high-tech enterprise specialized in development, production and marketing of the special displays. The company can customize special displays of 5-82 inches according to customer need. Headquarter is at Bao’an Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system in china.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
USER’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $323,000 ( Still rising )
8, Warranty (1-3 year)
