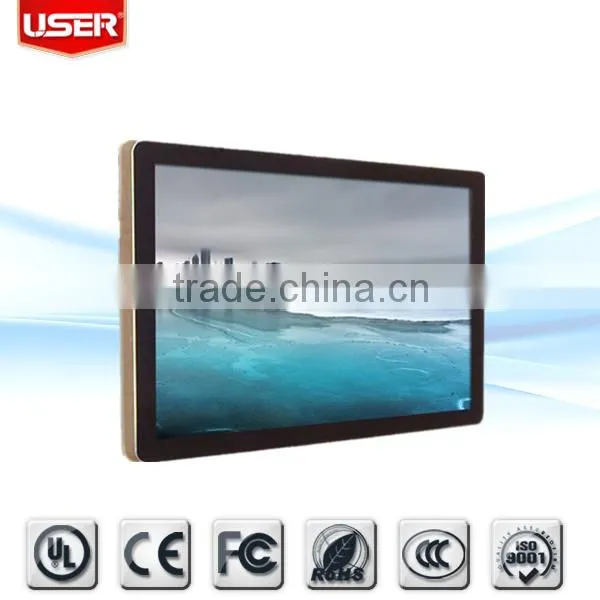

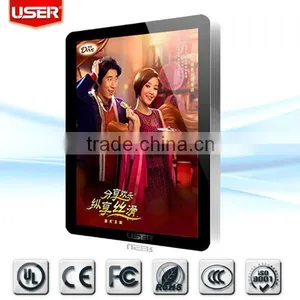

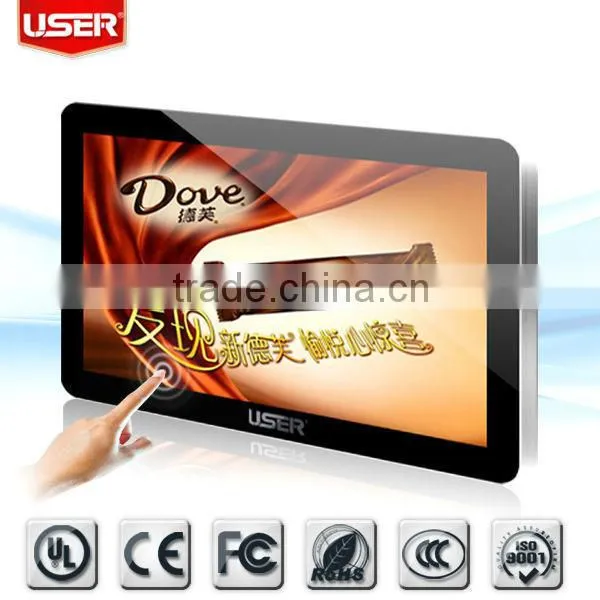

22 26 35 42 inch Round Corner Lcd Advertising wall mount digital signage display
digital signage display
Specification
High quality touch screen
Size: 26" TFT-LCD(LG)
Brightness:400cd/m2
Contrast: 3000:1
Interface: VGA,HDMI,AV,DVI,CVBS,TV,YPbPr ,PC
A grade original panel from Samsung/LG//AUO
support OEM
Technical Data Sheet for 26 Inch USB Powered Touch Screen Monitor
| Specifications | |||||||||
| Model No. | US-T26HC | ||||||||
| Panel size | 26" TFT-LCD | ||||||||
| Display area(mm)/mode | 273(W)×338(H) 4:3 | ||||||||
| Maximum resolution | 1024×768 | ||||||||
| Display color | 16.7M | ||||||||
| Pixel Pitch(mm) | 0.297(H)×0.297(V) | ||||||||
| Brightness (nits) | 400cd/m*m | ||||||||
| Contrast | 3000:1 | ||||||||
| Visual angle | 178°/178° | ||||||||
| Response time | 8ms | ||||||||
| Horizontal frequency | 50-70KHZ | ||||||||
| Vertical frequency | 56-75KHZ | ||||||||
| Life(hrs) | >60,000(hrs) | ||||||||
| Touch Panel | |||||||||
| Specification | Infrared touch | ||||||||
| Positioning accuracy |
±2mms | ||||||||
| Transmittance | 92% | ||||||||
| Hardness | 7H | ||||||||
| Click manner | double point/mult-point(optional) | ||||||||
| Response time | ≤10ms | ||||||||
| Output Resolution | 4096X4096 | ||||||||
| Life time | Single point of more than 600 million times |
||||||||
| Input and output | |||||||||
| VGA input | 2 | ||||||||
| CVBS input | 2 | ||||||||
| YPbPr input | 1 | ||||||||
| TV | 1 | ||||||||
| HDMI | 4 | ||||||||
| USB2.0 | 6 | ||||||||
| LAN | 1 | ||||||||
| PC Audio | 1 | ||||||||
| Audio(L/R) input | 1 | ||||||||
| Audio(L/R) output | 1 | ||||||||
| Speaker | 2×10W(8 ohm) | ||||||||
| Video | |||||||||
| Color system | PAL/NTSC/SECAM | ||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | ||||||||
| 3D Comb filter | Yes | ||||||||
| Video reduction noise | Yes | ||||||||
| OSD display( screen menu display) | |||||||||
| Menu language | Chinese/English | ||||||||
| Power | |||||||||
| Power supply | AC100V~240V,50/60Hz | ||||||||
| Maximum power consumption | 230W | ||||||||
| Standby power consumption | 3W | ||||||||
| Temperature | |||||||||
| Working temperature | 0℃~50℃ | ||||||||
| Storage temperature | -10℃~60℃ | ||||||||
| Working humidity | 20%~80% | ||||||||
| Storage humidity | 5%~95% | ||||||||
| Appearance | |||||||||
| Cabinet color/appearance | White, black, customized | ||||||||
| Cabinet material | SPCC/Aluminum/Customized | ||||||||
| Installation | Floor-standing | ||||||||
| Bulk Order Leading time | within 21working days | ||||||||
| Payment terms | T/T | ||||||||
| Warranty | 1year | ||||||||
| Valid time | 10days | ||||||||
1.Packaging
1,Carton: one piece packed in one carton with PE.
2,Wooden frame: two pieces packed in one wooden frame.
2. Shipping
1, Shipment will be made in 5-7 working days after payment
2, Special shipment time can be negotiated.
1.Professional:We are manufacturer in touch screen monitors since 2003.
2.Factory price and famous quality( use samsung/LG/CMO panel and great quality main board )
3. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.
4. Warranty: 1 year warranty for panel, 3 years in parts. ( Non-artificial damage )
5. Proven technique. We have our own D&R department for our customers do custom functions accordingly. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
6.Small QTY for LOGO stamped. We allow small qty to make your own logo since we know that in the feature, BRAND item is trend for most companies.
Trade Terms:
1.Payment terms: 30% deposit by T/T when order confirmed, 70% balance before delivery.
2.Lead time: 5-15 working days according to the order quantity.
3.Sample lead time: within 5 working days against payment.
4.Price based on FOB Shenzhen,we will offer best discount according to order quantity.
5.Warranty:offer free spare parts for warranty.
6.Offer OEM service for batch orders,to print logo
(FCC,CCC,CE,RoHs,ISO9001:2008,UL) for 15.6 Inch USB Powered Touch Screen Monitor
