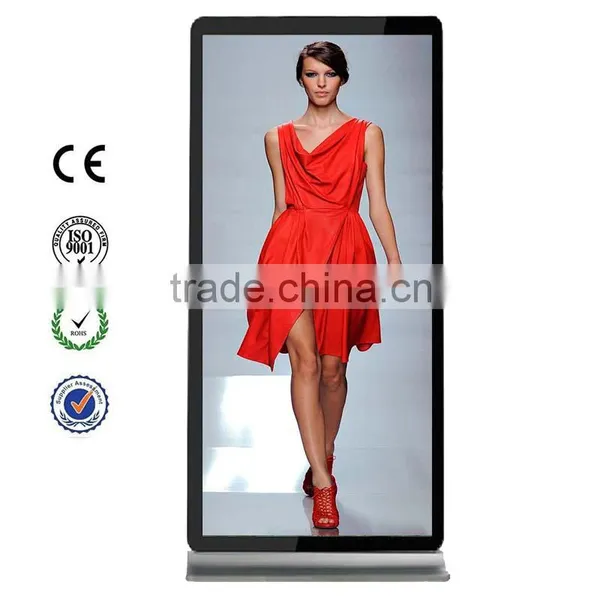

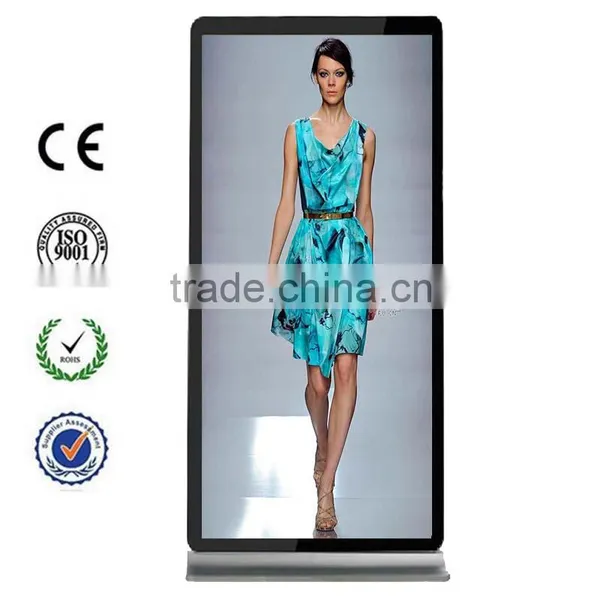

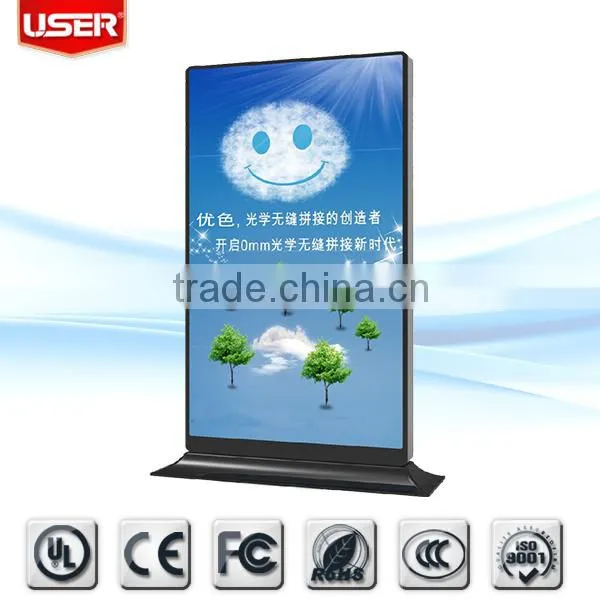

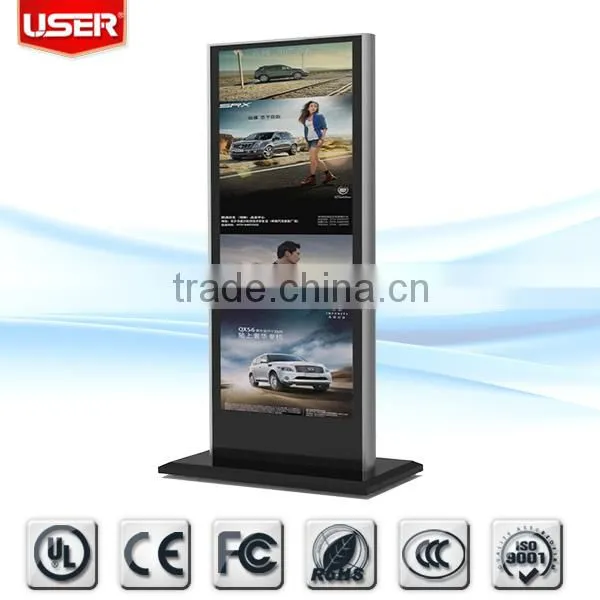

Product Description for free size lcd 3g wifi advertising screens for bus,Supermarket,shopping malls.
1.Apply the newest 4G digital multimedia professor technologies, enjoy excellent visual effect
2.Ultra-high-fidelity sound, pleasant stereo sound.
3.Ultrathin and ultra-light hardware case, delicate and beautiful appreance.
4.Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill!
5.Verity and complete software, stable and reliable
6.Have a lock, anti-theft functions
7.Widely used in the bus, building and lift room, supermarket, pubic places, train etc.
Specification | |
Model No. |
US-AD220LW,US-AD220NW |
Panel size |
22″ TFT-LCD |
Display area(mm)/mode |
478*269 16:9 |
Maximum resolution |
1680x1050 |
Display color |
16.7M |
Pixel Pitch(mm) |
0.297(H)*0.297(V) |
Brightness (nits) |
300cd/m2 |
Contrast |
3000:1 |
Visual angle |
85°*85° |
Response time |
6ms |
Life(hrs) |
>60,000(hrs) |
Input and output | |
RJ45 |
Included(Network version only) |
WIFI Module |
Included(Network version only) |
USB |
1 ( USB2.0 interface) |
SD |
1 (Compatible MMC/MS) |
CF |
1(optional) |
HDMI |
1 |
VGA |
1 |
Speaker |
5W(8Ω) |
Video | |
Color system |
PAL/NTSC/SECAM |
Remote controller |
IR Remote Controller |
OSD display( screen menu display) | |
Menu language |
Chinese/English( Multiple Language Supported) |
Power | |
Power supply |
8-36V |
Maximum power consumption |
<=W |
Standby power consumption |
<3W |
Temperature | |
Working temperature |
0°C~50°C |
Storage temperature |
-10°C~60°C |
Working humidity |
20%~80% |
Storage humidity |
5%~95% |
Appearance | |
Color/appearance |
White,black,customized |
Case |
Metal case SPCC |
Installation |
Wall mount(vertical or horizental) |
Gross Weight |
9kg |
Body dimension |
542*363*55.24mm |
Quality Standard |
ISO9001,CCC |
Detailed functions | |
Video format |
MPEG1/MPEG2/MPEG4/DivX/ASP /AVI |
Audio format |
Wave/MP3/WMA/AAC |
Image format |
JPEG/BMP/TIFF/PNG/GIF |
Image resolution |
480P/720P |
Payment terms | |
Sample Leading time |
7 working days |
Bulk Order Leading time |
15 working days |
Payment term |
T/T-100% payment before production for sample, 30% deposit before production and 70% balance before shipping for bulk order |
Warranty |
1year |
Lead time |
1 month |
Play mode:Power on, single card auto loop play;classified files auto loop play; multi cards auto loop display etc. |
Time:year/month/day/week/h/m/s, in the top right corner (open and close optional). |
Timing open & close:Per day 5 times, 7 days a week, free time. |
Timing play:7 days a week, free set the play program everyday. |
Alarm clock:Set 5 alarms one day, once ring the alarm, play the specified program. |
OTG:Support copy, delete, remove, rename, build new file among different cards. |
Running subtitle:Can set the play location, word size, color and back-color. |
Log files:Record the play time (concise to second), the play contents. |
Angle subscript display function:Can set the play time, just support BMP picture with biggest resolution 160*90. |
Memory function:Power off, memory the time of the play; power on, play from the time, not from beginning. |
Key and lock function:Use the remote controller before input the keyword. |
Sound volume:Can set the volume of sound in the different time. |
Storage card lock:Have a anti-theft lock in the case, equip 2 sets key. |
Other function:Customized. |
Upgrade software:Just put the upgrade file in the storage cards. |
Shenzhen USER Special Display Technologies Co.,Ltd established in 2003,is a high-tech enterprise specialized in development and production of the special displays (5-82inch) according to the customer`s requirments.
As one of th e leading providers of special display in China,user always stands on th forefront of the special displays development.We cherish every opportunity to cooperate with our customers.
Our products can be devided into several series:Broadcast LCD monitor,medical LCD
monitor ,Touch scren LCD monitor,Multimedia kiosk,Large size high defination data LCD displaly,LCD wall,video wall processor ,etc. Excellent quality and low price is our goal.
For more informaion please contact me directly.Any inquiries are warmly welcome.
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $207,000 ( Still rising )
8, Warranty (1-3 year)
