Home > Products > optical seamless splicing > 55'' 2*2 Optical Seamless Splicing LCD Video Wall
55'' 2*2 Optical Seamless Splicing LCD Video Wall
- 10000 Unit / Units per Month
- Shenzhen
- Credit Card
- High Quality Good Prices Professional Supplier All In One 32 Inch Lcd Pop Wall Design Lcd Pc
- 55 inch all in one pc tv digital media player box 1920*1080 display media player windows shopping mall information kiosk
- 19" indoor display promotional tv display pc electric tv mount hd lcd tv kiosk ad lcd hot digital media player indoor monitor
- 84" 4K screen lcd screen all in one pc large size digital photo frame restaurant display shop signageads lcd monitor
- 32"wall mount lcd all in one pc computerall in one pc tv computerintel atom pclcd advertising video poster display
- 18.5 to 65 inch touch screen all in one pc advertising wall wifi board led display ethernet computer shop display
Product Details
Place of Origin: | Guangdong, China | Brand Name: | User(or OEM)_Floor Standing Video Wall | Model Number: | US-PJ5501HD-Floor Standing Video Wall |
Type: | Other, DID-lcd video wall | Application: | Indoor | Panel Size: | 55'' DID LCD Panel |
Max Resolution: | 1920x1080 | Viewing Angle: | 178° | Pixel Pitch: | 0.485(H)*0.485(V) |
Color: | 8Bit,16.7M | Contrast Ratio: | 3000:1 | Brightness: | 450cd/㎡ |
Response Time: | <=8ms | Input Voltage: | AC100~240V 50 /60 HZ |
Product Description

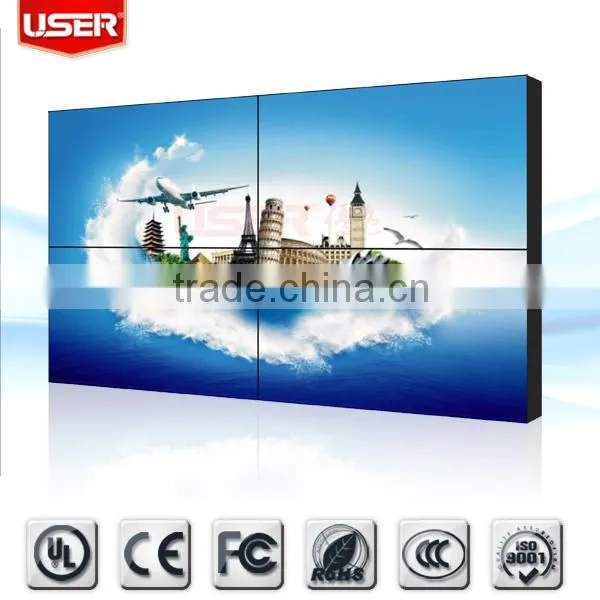

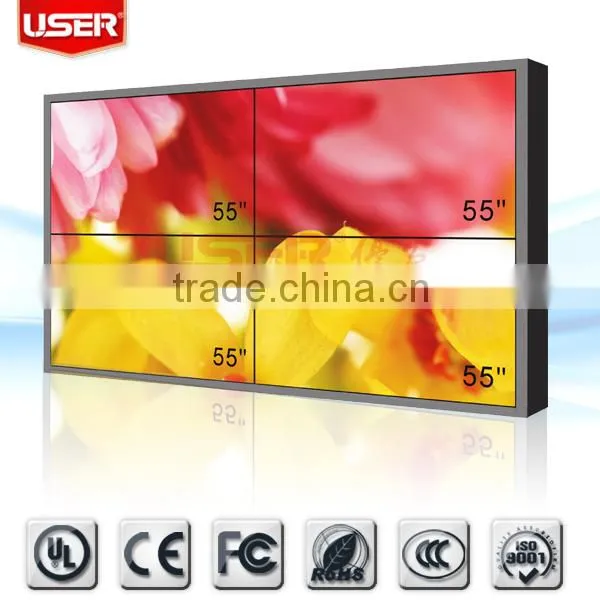

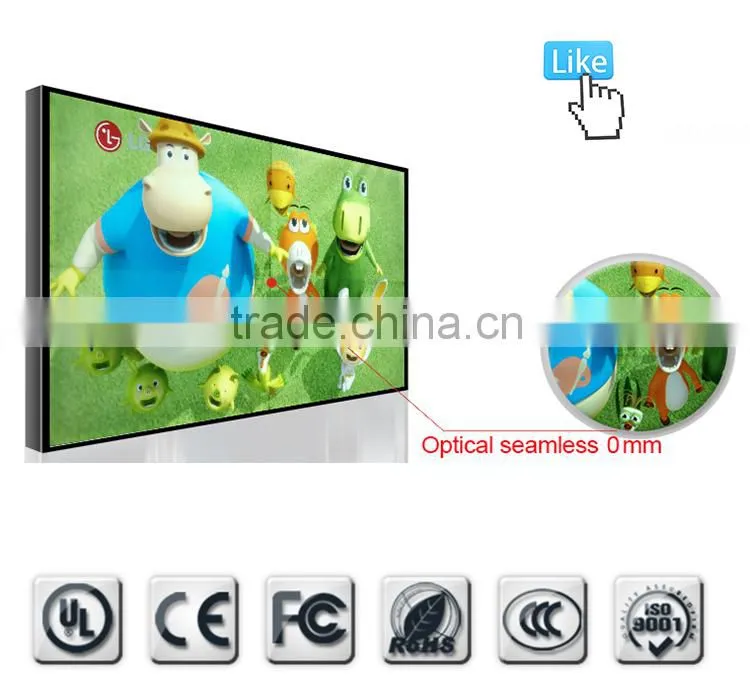

55'' 2*2 Optical Seamless Splicing LCD Video Wall
Features of LCD VIDEO WAll :
1. Ultra-narrow border design of the current width of only 2.65mm at present
2. Full-screen high definition display, up to 1080P
3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone
4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.
5. Long life, stable operation, no burns, injuries, low maintenance costs
A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.
6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.
LCD Video Wall Screen (SAMSUNG DID panel) | ||||||||
Specifications | ||||||||
Model No. | US-PJ5501 | |||||||
Panel Size | 55'' Samsung DID LCD Screen(super narrow bezel 5.3mm) | |||||||
Aspect Ratio | 16:9 | |||||||
Max Resolution Support | 1920x1080 | |||||||
Color | 8Bit,16.7M | |||||||
Brightness (nits) | 450cd/m2 | |||||||
Contrast | 3000:1 | |||||||
Visual Angle (H/V) | 178° | |||||||
Response Time | <=8ms | |||||||
Life(hrs) | >60,000(hrs) | |||||||
lcd video wall_Input and output | ||||||||
DVI | 1 | |||||||
HDMI | 1 | |||||||
D-15 RGB Input(VGA) | 1 | |||||||
YUV/YPbPR | 1(3xBNC) | |||||||
S-(YC) | 1(2xBNC) | |||||||
Composite Video Input/(AV) | 3(3xBNC) | |||||||
Composite Video Output | 2(2xBNC) | |||||||
AUDIO INPUT | 1 | |||||||

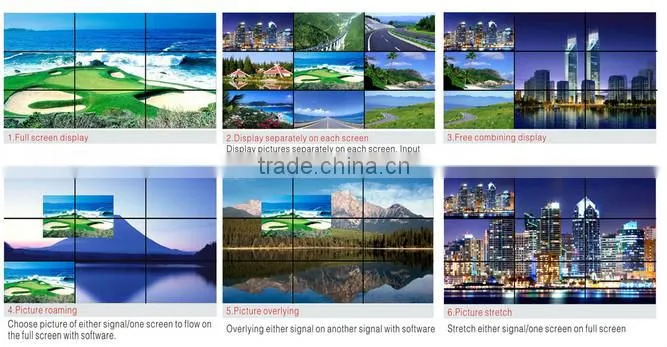

Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||||||
lcd video wall_Power | ||||||||
Power Supply | AC100V~240V | |||||||
Maximum Power Consumption | 250W | |||||||
Standby Power Consumption | <=3W | |||||||
lcd video wall_Temperature | ||||||||
Working Temperature | 0°C~50°C | |||||||
Working Humidity | 20%-80% | |||||||
Dimension | 1024x578.6x123.3mm |
Video Wall Controller(Built-in each Screen) | ||||||||
Model No. | US-P817W | |||||||
Input | CVBS | 1*BNC port, support PAL/NTSC all formats | ||||||
DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
HDMI | 5*BNC ports, support SVGA/XGA/WUXGA | |||||||
Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
CVBS | support PAL/NTSC all formats | |||||||
DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
Operate mode | Panel key operation(needs customization) | |||||||
Standard RS232 port( provide free control software) | ||||||||
ADD Code | ||||||||
Engineering software | XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out) | |||||||
Working temperature | 0~70 ℃ | |||||||
working humidity | 5~95 %RH | |||||||
AC voltage power supply | 100-240V/50, 60Hz | |||||||
power consumption | Max 300W,according to different Screen models | |||||||
Dimension | 307×283×55(mm) | |||||||
Weight | About 3.5KG |

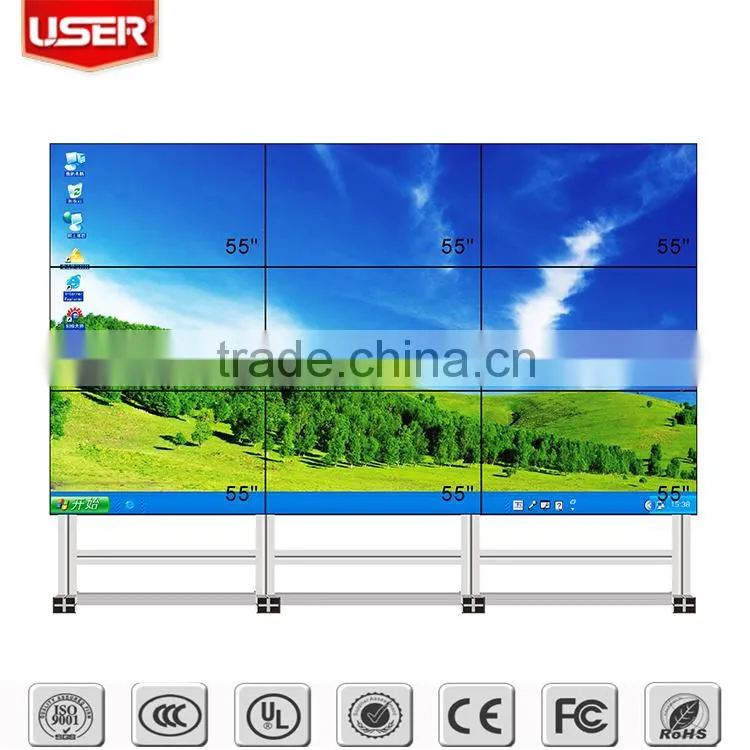

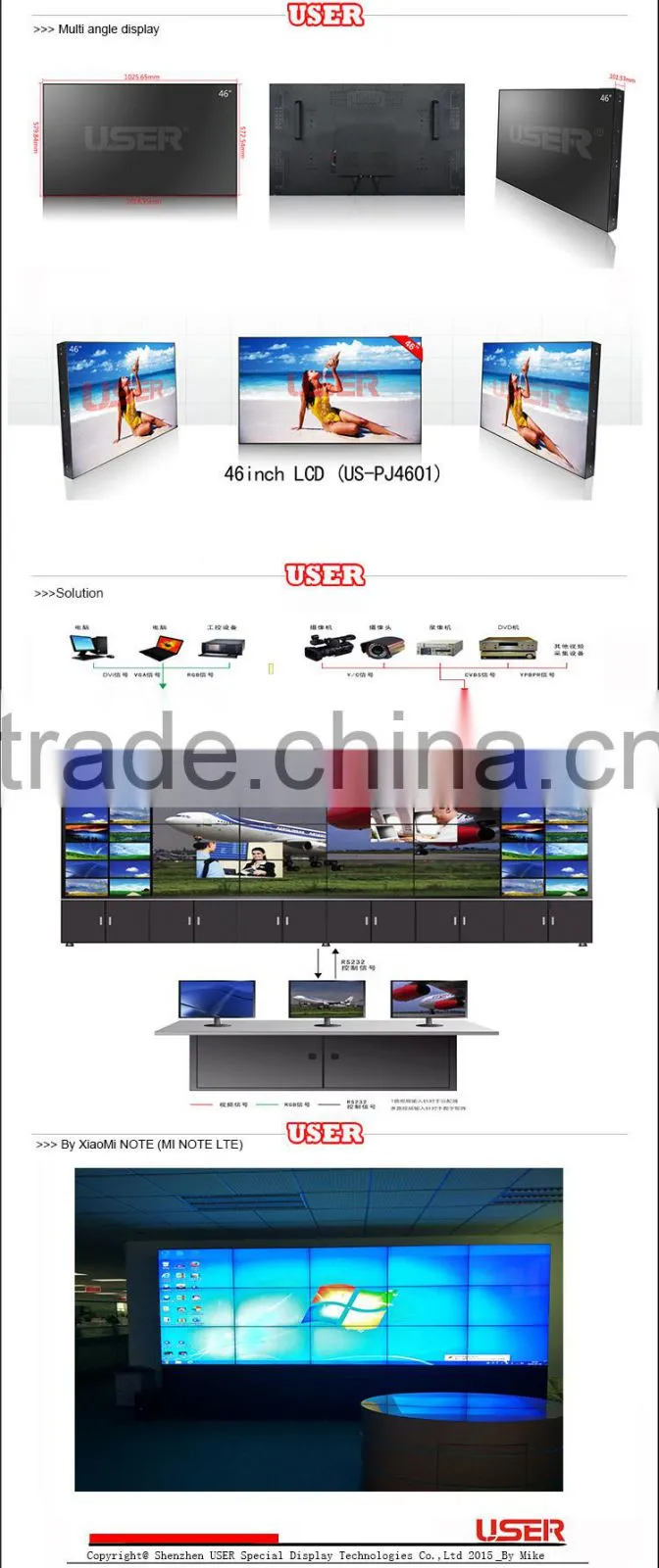

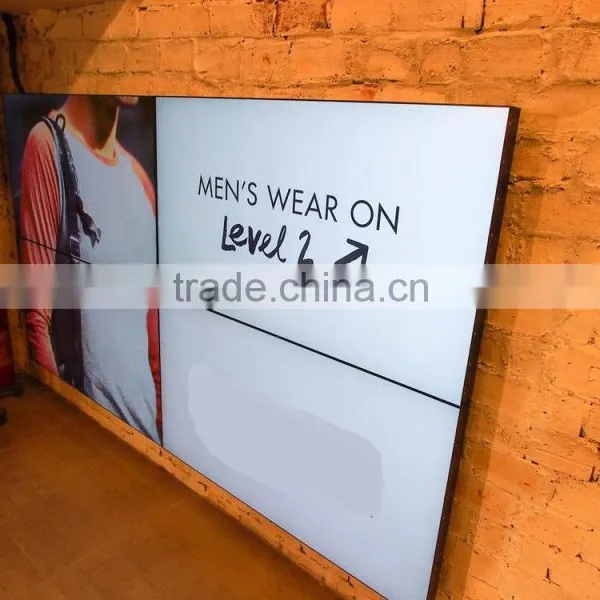

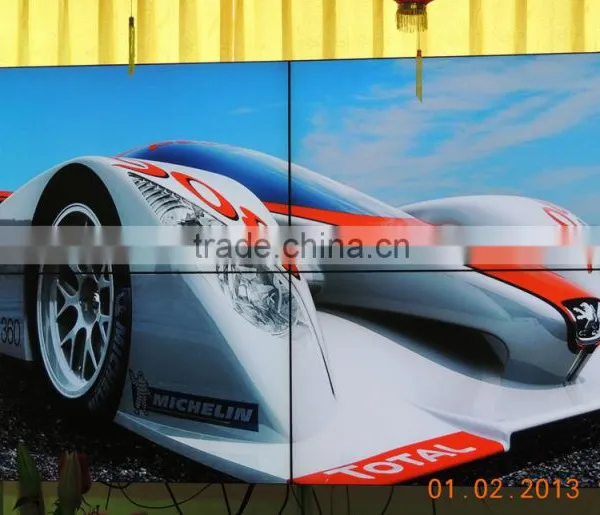

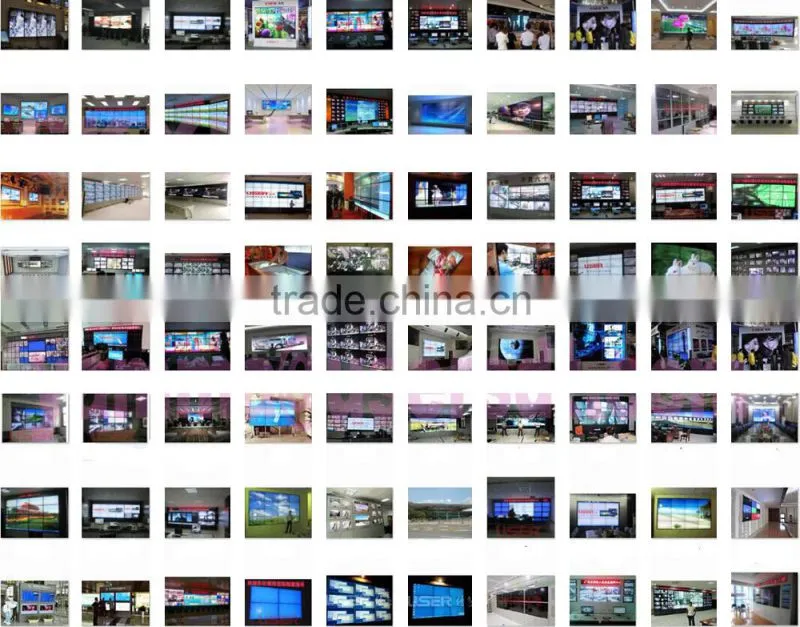

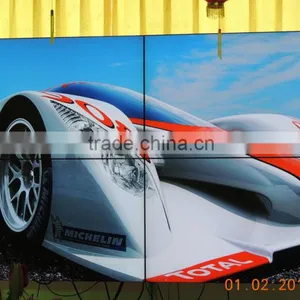

LCD Wall Picture show
LCD Screen Brand
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $223,000 (Still rising....)
9. Warranty (1-3 year)
LCD VIDEO Wall _The splicing picture combination, can reach the advertising media to the pursuit of large screen .Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public
USER Certifications _did video wall Full HD 1080P exhibition lcd video wall with Ultra Narrow Bezel From 3.5 mm To 5.3 mm
Click the next picture to learn similar products.--- Optical seamless splicing
