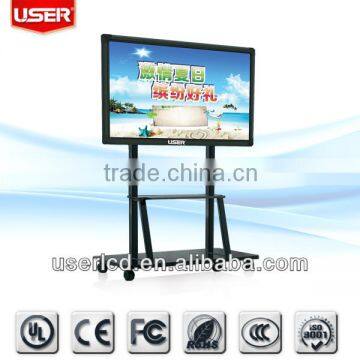

65 Inch Interactive Mall Kiosk
Specifications
65 inch Interactive Mall KioskSize:65 inch
Touch:infrared two point touch
55 inch Interactive Mall Kiosk
| Specifications | |||||||||
| Model No. | US-TH6502WP | ||||||||
| Panel size | 65" TFT-LCD | ||||||||
| Display area(mm)/mode | 1508.0 x 878.0(mm 16:9 | ||||||||
| Maximum resolution | 1920×1080 | ||||||||
| Display color | 16.7M | ||||||||
| Pixel Pitch(mm) | 0.744(H)×0.744(V) | ||||||||
| Brightness (nits) | 500cd | ||||||||
| Contrast | 5000:1 | ||||||||
| Visual angle | 178°/178° | ||||||||
| Response time | 8ms | ||||||||
| Horizontal frequency | 50-70KHZ | ||||||||
| Vertical frequency | 56-75KHZ | ||||||||
| Life(hrs) | >60,000(hrs) | ||||||||
| Touch Panel | |||||||||
| Specification | Infrared touch | ||||||||
| Positioning accuracy |
±2mms | ||||||||
| Transmittance | ≥92% | ||||||||
| Hardness | 7H | ||||||||
| Click manner | double point/mult-point(optional) | ||||||||
| Response time | ≤10ms | ||||||||
| Output Resolution | 8192*8192 | ||||||||
| Life time | Single point of more than 600 million times |
||||||||
| Input and output | |||||||||
| VGA input | 2 | ||||||||
| CVBS input | 2 | ||||||||
| YPbPr input | 1 | ||||||||
| TV | 1 | ||||||||
| HDMI | 4 | ||||||||
| USB2.0 | 6 | ||||||||
| LAN | 1 | ||||||||
| PC Audio | 1 | ||||||||
| Audio(L/R) input | 1 | ||||||||
| Audio(L/R) output | 1 | ||||||||
| Speaker | 2×10W(8 ohm) | ||||||||
| Video | |||||||||
| Color system | PAL/NTSC/SECAM | ||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | ||||||||
| 3D Comb filter | Yes | ||||||||
| Video reduction noise | Yes | ||||||||
| OSD display( screen menu display) | |||||||||
| Menu language | Chinese/English | ||||||||
| Computer | |||||||||
| Main chipset | Intel H61 | ||||||||
| CPU | Intel I3-2100 3.1G | ||||||||
| System bus frequency | 800/1066/1333 MHz | ||||||||
| Graphics card | Integrated | ||||||||
| Audio card | Integrated AC97 | ||||||||
| Network card | Integrated 10/100/1000M adaptive | ||||||||
| Memory | 2G DDRIII (max 4G) | ||||||||
| Hard Disk | 320G SATA | ||||||||
| WIFI | Optional | ||||||||
| Bluetooth | Optional | ||||||||
| Operation system | Windows 7 | ||||||||
| Power | |||||||||
| Power supply | AC100V~240V,50/60Hz | ||||||||
| Maximum power consumption | 400W | ||||||||
| Standby power consumption | 3W | ||||||||
| Temperature | |||||||||
| Working temperature | 0°C~50°C | ||||||||
| Storage temperature | -10°C~60°C | ||||||||
| Working humidity | 20%~80% | ||||||||
| Storage humidity | 5%~95% | ||||||||
| Appearance | |||||||||
| Cabinet color/appearance | White, black, customized | ||||||||
| Cabinet material | SPCC/Aluminum/Customized | ||||||||
| Installation | Floor-standing | ||||||||
Our fatory and certificates:
