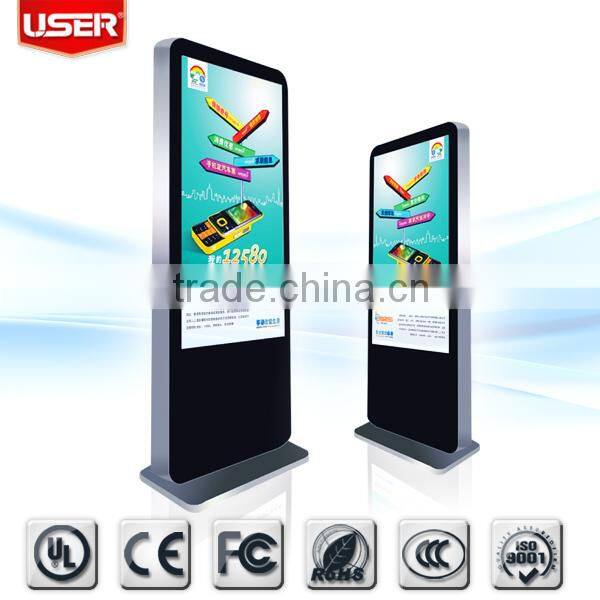

Touch Kiosk PC Monitor

Name: Touch Kiosk PC Monitor
Brand: USER/OEM
SKU: 103449285
Availability: InStock

US$ 1 - 5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER/OEM

Model Number:

US-AH55FTC2

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER/OEM

Model Number US-AH55FTC2

Type TFT

Application Indoor

Panel Size 55''

Max Resolution 1920*1080

Viewing Angle 178/178

Pixel Pitch 0.63mm

Color 16.7M

Contrast Ratio 3000:1

Brightness 400nits

Response Time 6ms

Input Voltage 300W

Specifications
Model No.	US-AH55FTC2
Panel size	55" TFT-LCD LED backlight
Display area(mm)/mode	1209.6×680.4 16:9
Maximum resolution	1920*1080
Display color	16.7M
Pixel Pitch(mm)	0.63(H)×0.63(V)
Brightness (nits)	400nits
Contrast	3000:1
Visual angle	178°/178°
Response time	6ms
Horizontal frequency	50-70KHZ
Vertical frequency	56-75KHZ
Life(hrs)	50,000(hrs)
Touch Panel	OPTIONAL
Input and output
VGA	1
HDMI	1
USB	4
LAN	1
Speaker	2×10W(8 ohm)
Video
Color system	PAL/NTSC/SECAM
Compatible HDMI input	480P,576P,720P,1080I,1080P
3D Comb filter	Yes
Video reduction noise	Yes
OSD display( screen menu display)
Menu language	Chinese/English
Computer
Main chipset	Intel H61
CPU	Intel I3-2100 3.1G
Graphics card	Integrated
Audio card	Integrated AC97
Network card	Integrated 10/100/1000M adaptive
Memory	4G DDRIII
Hard Disk	320G SATA
WIFI	Included
Bluetooth	Optional
Original windows OS	Optional
Power
Power supply	AC100V~240V,50/60Hz
Maximum power consumption	300W
Standby power consumption	3W
Temperature
Working temperature	0°C~50°C
Storage temperature	-10°C~60°C
Working humidity	20%~80%
Storage humidity	5%~95%
Appearance
Cabinet color/appearance	White, black, customized
Cabinet material	SPCC/Aluminum/Customized
Installation	Movable floor-standing
