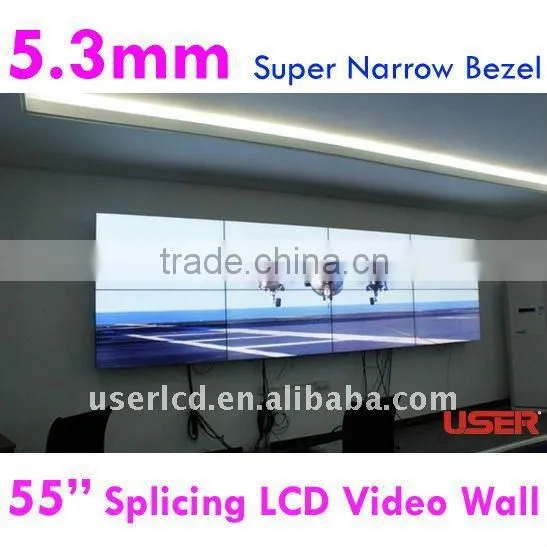

Help Center5.3mm Super Narrow Bezel LCD Video Wall
Related Products
-
42" LG Panel LCD Video WallNegotiableMOQ: 4 Pieces -
Special Offer for 42" LG Panel LCD Video WallNegotiableMOQ: 4 Pieces
-
Special Offer for 55" LCD Video Wall LED BacklightNegotiableMOQ: 4 Pieces
-
Special Offer for 6.7mm Bezel 46" Lcd Video WallNegotiableMOQ: 4 Pieces
-
42" LG Panel LCD Video Wall Bezel 27mmNegotiableMOQ: 4 Pieces
Specifications
1,55",5.3mm SNB LED Backlights2,1920x1080 Resolution
3,700nits brightness
4,4000:1contrast
5,Rich interface,multifunction
Descriptions
US-LTI550HN01 is a color active activation liquid crystal display (LCD) that displays use of non-crystalline silicon TFT (Thin Film Transistor) as switching components. This mode of display, mainly by a TFT LCD panel, a driver circuit and a backlight unit. One with a 55 inches display, a resolution of 1920x1080, and this mode of display can show up as high as 16.7 million kinds of colors, these colors with wide viewing angle in the display, but in all directions is equal to or greater than 89c. This display panel applied to support a variety of occasions, so it can provide excellent display performance, for example, can be used in home multimedia TFT-LCD TV in the flat-panel displays, AV audio-visual products, display terminals, and digital information display(DID).
Specifications
| Model No. | US-LTI550HN01 |
| Screen size | 55'' Samsung DID LCD screen(with narrow bezel 5.3mm) |
| Display area(mm)/mode | 16:9 |
| Resolution | 1920x1080 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 700cd/m2 |
| Contrast | 4000:1 |
| Visual angle (H/V) | 178° |
| Response time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output | |
| Composite Video Input | 3(3xBNC) |
| YUV/YPbPR | 1(3xBNC) |
| S-YC | 1(2xBNC) |
| D-15 RGB Input(VGA) | 1 |
| HDMI | 1 |
| DVI | 1 |
| Audio Input | 1 |
| Composite Video Output | 2(2xBNC) |
| Splite Screen | Support Picture in Picture(PIP/POP/PAP) |
| Power | |
| Power supply | AC100V~240V |
| Maximum power consumption | 250W |
| Standby power consumption | <=3W |
| Temperature | |
| Working temperature | 0°C~50°C |
| Working humidity | 20%-80% |
| Appearance | |
| Product dimension( W x H x D) mm | 1215.3mm(H)×686.1mm(V)x126.73 |
| Acessory | |
| Cable | Can supply different kinds of cable |

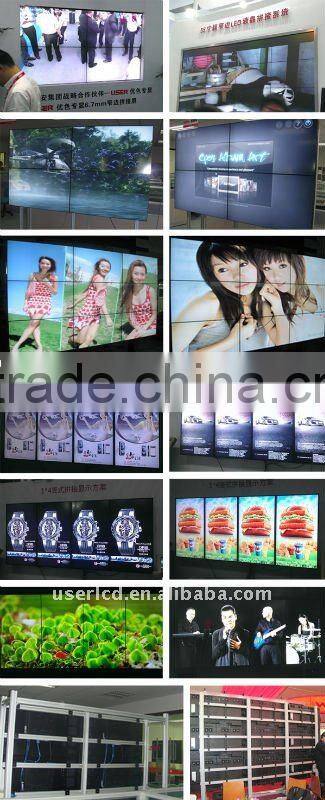

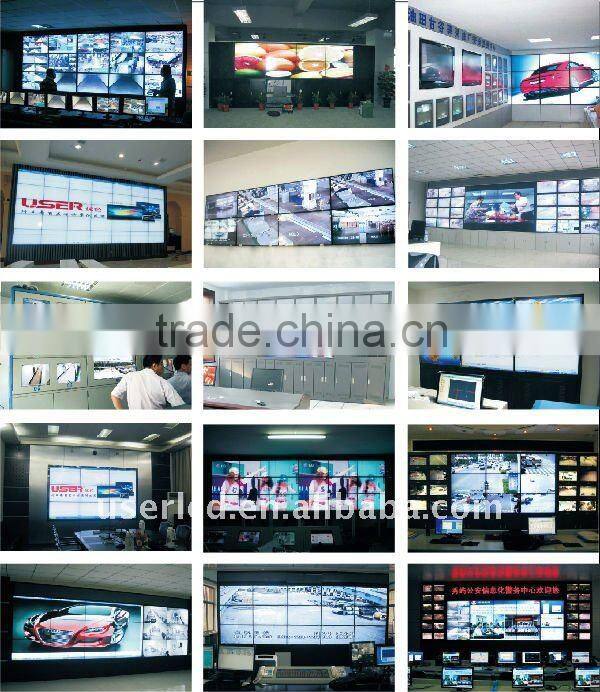

Our Video Wall Applications:
Video Wall Packing:
Factory Overview:
EXPOS:
