Special Offer for 42" LG Panel LCD Video Wall

Name: Special Offer for 42" LG Panel LCD Video Wall
Brand: USER or OEM
SKU: 103448375
Availability: InStock

Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER or OEM

Model Number:

US-LC420WUN

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER or OEM

Model Number US-LC420WUN

Specifications

42" lcd video wall
Narrow bezel 20.2mm,brightness 500nits
Rich interfaces
Good quality with moderate price
OEM available

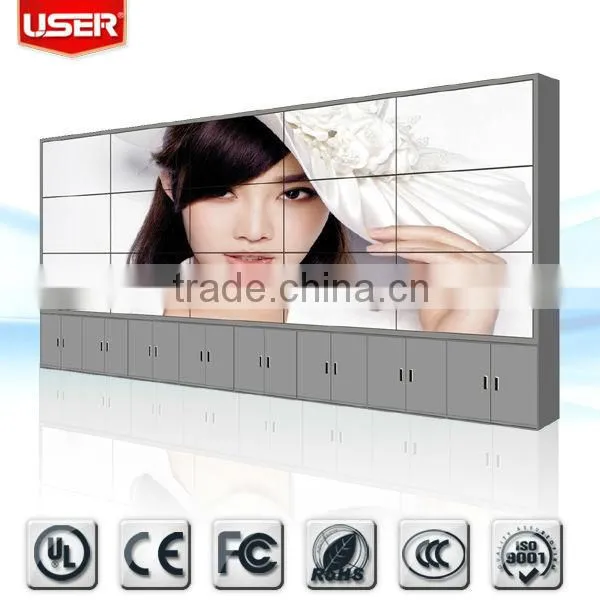

42 inch LG panel LCD VIDEO WALL

Specifications
Model No.			US-LC420WUN
Panel Size			42" LG IPS panel (with narrow bezel 20.2mm)
Aspect Ratio			16:9
Max Resolution Support			1920x1080
Color			8Bit,16.7M
Brightness (nits)			500cd/m2
Contrast			3000:1
Visual Angle (H/V)			178°
Response Time			8ms
Life(hrs)			50,000(hrs)
Input and output
DVI			1
HDMI			1
D-15 RGB Input(VGA)			1
YUV/YPbPR			1(3xBNC)
S-video			1(2xBNC)
Composite Video Input/(AV)			3(3xBNC)
Composite Video Output			2(2xBNC)
AUDIO INPUT			1
Split Screen			Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			173.3W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension			956.4x549.4x35.5mm
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG
