Help Center19'' Touch Screen LCD Monitor
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Laptop
Screen Size:
Other, 19''
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Products Status
Stock
Application
Laptop
Screen Size
Other, 19''
Response Time
8ms
Brightness
450cd/m
Interface Type
D-Sub, DVI, HDMI, S-Video, TV-out, Other
Contrast Ratio
450:1
Resolution
1280 x 1024
Widescreen
No
Panel Type
TFT
Pixel Pitch
0.264
Brand Name
user
Model Number
US-T1901
Place of Origin
Guangdong, China

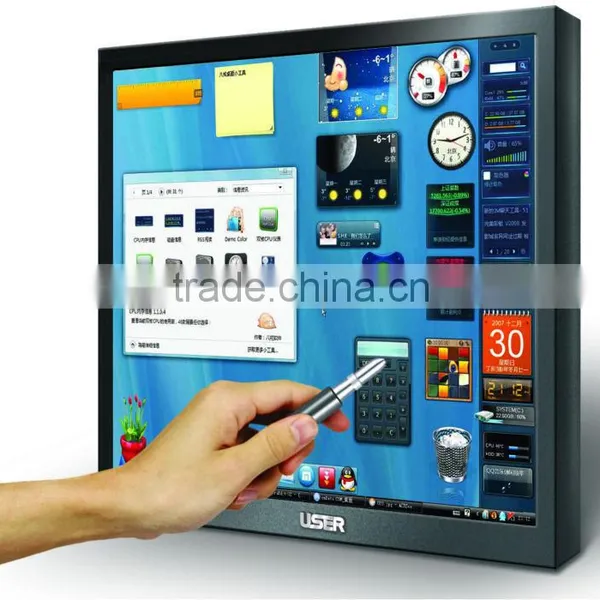

Use high-quality capacitive touch panel, high transmittance, uprising strong, scratch resistant, dustproof and waterproof;
touch sensitivity, fast response;
professional-grade chips and processing technology to ensure high quality;
High-performance industrial grade LCD screen to ensure high-definition images, high brightness and use of stability;
shell of high strength steel design, the appearance of thin, beautiful and strong, with excellent levels of protection and electromagnetic shielding properties;
paint surface appearance of fine lines, smooth uniform, simple and generous, the color and industrial host integration, with good anti-rust resistant function;
High reliability, high stability, suitable for education and training, exhibition, public media, restaurants, restaurants, military command and traffic management.
| Touch panel | |
| Specification | Capacitive Touch |
| Touch Media | Fingers and other body parts |
| Transmittance | 80%-90% |
| Hardness | 7H |
| Click manner | Single |
| Response time | ≤10ms |
| Output Resolution | 4096X4096 |
| Operating pressure | 15~150g |
| Life | Single point of more than 500 million |
| Interface | USB (default) / serial / SP2 |
| Type | Project | Parameter |
| Panel | Brand | AU/SAMSUNG/CMO |
| Panel size | 19” | |
| Display area | 379(W)×304(H) | |
| Pixel Pitch | 0.294(H)×0.294(V) | |
| Aspect Ration | 4:3 | |
| Resolution | 1280X1024 | |
| Color depth | 16.7M | |
| Viewing Angle | H170º V170º | |
| Brightness | 450cd/m2 | |
| Contast | 800:1 | |
| Response time | 8ms | |
| Image control | Video decoding | 3D |
| Signal Noise | 3D | |
| Interlaced separation | 3D | |
| Color system | support PAL/NTSC/SECAM | |
| Image mode | Standard / Sports / soft / personal settings | |
| Image adjust | Contrast / brightness / hue / saturation / sharpness | |
| Color temperature mode | Standard / cool / warm color | |
| Zoom | Full Screen / Zoom 1 / Zoom 2 / nonlinearity / 14:9 | |
| Dual screen functionality | PIP/POP 4:3 | |
| Audio system | Speaker | 2 × 3W (4Ω) (default without speakers) |
| Sound mode | Standard / Music / Movies / Personal settings | |
| Option system | Manu langague | Chinese / English |
| Remote control | Dedicated | |
| Button panel | Standby / input / menu / left / right | |
| input/output interface | USB or serial input | 1 (for touch screen use) |
| Composite video input | 2 BNC | |
| Component (YUV) input | 1 BNC X 3 | |
| S-video | 0 | |
| D-15pin RGB input | 1 | |
| DVI/HDMI | 1 | |
| Composite video output | 1 | |
| AV/YUV audio input | 1 Hole diameter Φ3.5mm | |
| PC audio input | 1 Hole diameter Φ3.5mm | |
| Power consumption | Power consumption | AC 100~240v 50/60HZ |
| Standby power / rated power | ≤3W/≤18W | |
| Case | Material | SPCC cold rolled steel |
| Exterior color | White / black / custom | |
| Dimensions | 398.8*326.8*66((for reference only) | |
| Install | Wall-mounted (default) / Rack -mounted | |
| External conditions | Operating temperature / humidity | 0~50 celsius /20%~80% |
| Storage temperature / humidity | -10~60 celsius /5--95% | |
| Life time | 60000 hours | |
| Certification | CE/FCC/3C/RoHS | |
