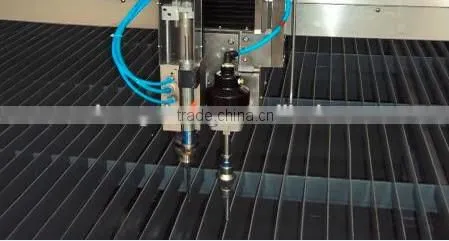

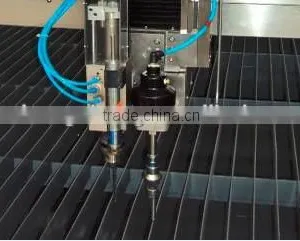

CNC Waterjet Cutting Machine
Specifications
Quick position, high accuracy ,quicker cutting ,clear processing,good cutting finished,narrow cutting gap.quick calibration.
We adopt the famous NAIKY controlling system and MITSUBISHI AC servo digit driving system and AC servo motor.
- 17”LCD liquid crystal display
- DNC on-line working function
- Functions of returning arbitrary point, bending, and circular arc working auto deceleration.
- Function of cutting figure imitation display.
- 80GB memory hard disk
- MITSUBISHI AC servo driver and motor.
-1GB memory card
- Multilingual function(Chinese English ,etc.,)
- Drive-by-wire and hand-hold controller,(according to requests)
1.1.3Chief technical parameter
- structure:Fly arm
- size(X×Y):1600mm´2600mm
- X-axis:1500mm
- Y-axis:2500mm
- Z-axis:150mm
- repeatability:0.025mm
- X,Y speed:0-15m/min
- cutting accuracy:±0.1mm
power:380VAC, 50Hz , 3 phase 4 wire system (can be customized)
1.1.4Transmission system
- We adopt HIWIN (Taiwan) lead rail and gear rack to ensure accuracy
durable and quality.
1.1.5Prevention system
- Over travel auto spacing function and soft spacing function
- Unique prevention design: new mazy protection and z-axis totally enclosed professional design prevent sand and water from eroding the guide screw and lead rail.
1.1.6Lubrication system
- We adopt auto mass lubrication system to make oil reach every oil site on time and also make table steadier and easier.
1.1.5 Chief technical parameter
- Max pressure:380MPa
- Max flow rate: 3.7l/min
- Power:30KW/40HP
- Power:380VAC, 50Hz ,3 phase
