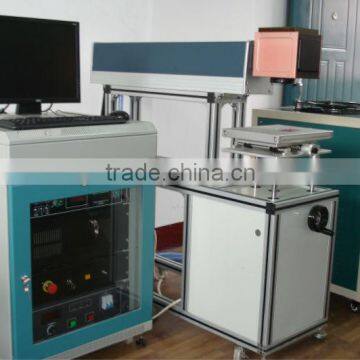

YAG Laser Marking Machine

Specifications

CO2 laser machine is a solid laser machine with infrared light whose wavelength of frequency band is 1064nm, It uses krypton lamp as energy source(driving source); As a medium for producing laser,

Main Features: laser is in large power, energy can be controlled by current and software, continous adjustable, apdot high speed scanning resonance mirror, It has small facula, high marking precision, steady and reliable facula, and high speed. The effect of marking is easy to debug. Software support Windows operating system, and comprises files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP, ect, It also support graphic file formats such as PLT,PCX,DXF,BMP etc., the machine can print automatic code, serial number, batch number, date, bar code and two-dimensional code.

Application: Mark on metal surfaces and many non-metal materials, widely used in electrical components, Integrated circuit, communication equipments, hardware tools, precise machinery, glass frames, clocks and watches, jewelry industry, auto accessories, plastic buttons, construction material, PVC pipes and medical instruments.

Main Tech-specification: Laser Type  ND: Co2  Laser wave-length  1064nm Laser Power  30W~100 W Standard marking area  50mm*50mm~260mm*260mm Marking Depth  0.01mm~0.3mm Linear speed  ;7000mm/s Min. line width  0.015mm Min. Character size  0.2mm Repetition accuracy ;0.002mm Power consumed  ;7KW Laser positioning instructions  LD red light,wave-length 650nm Electrical source  220V/50HZ/8A  System Dimension :900mm*920mm*1450mm
