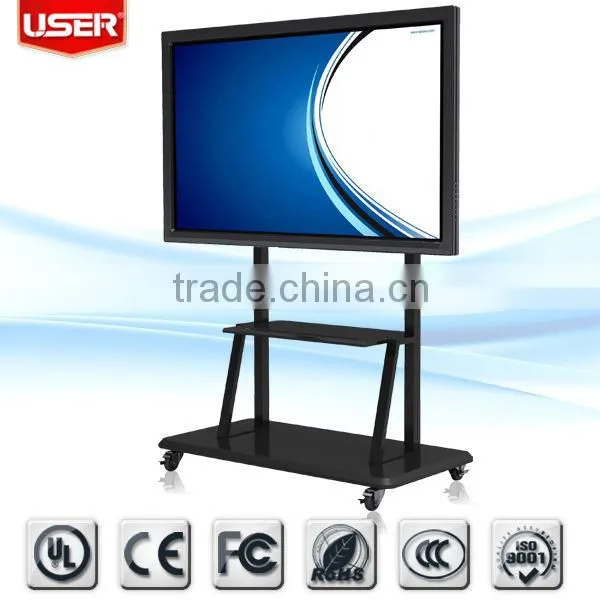

Touch screen Interactive electronic whiteboard with x86 system or android system
Product Description for Touch screen Interactive electronic whiteboard with x86 system or android system
| Product Specification | ||
| General Information | Panel Brand | Samsung/LG/AUO/Chimei |
| Panel Size | 65 Inch (17-84 Inch Optional) | |
| Product Color | Black and silver | |
| IR Touch Screen Details | Touch Max Resolution | 1920×1080 |
| Transparency | > 90%, Up to 100% | |
| Response Speed | <10ms | |
| Anti-Sunlight/ strong light interference | ||
| Touch Point | 2-48 optional | |
| Minimum identification point: | 3mm x 3mm | |
| PC Info | CPU | Intel i3(i5,i7optional) |
| RAM | 4GB ,DDR3-1333, 8GB is optional | |
| Hard Disk | 500GB | |
| Graphics | Intel HD4000 | |
| WIFI | 802.11 B.G.N | |
| Audio card | Realtek ALC662 | |
| Camera | Optional | |
| OS | DOS, WINDOWS 7 or UP/ME/2000/ | |
| XP/2003/VISTA, LINUX,MACOS,ANDROID. | ||
| Interfaces | VGA Output | 1 |
| HDMI Output | 1 | |
| Audio Output | 1 | |
| Microphone Input | 1 | |
| USB | 4 or more depending on the main board | |
| RJ45 | 1 | |
| Accessory | Power supply cable, user manual, keys,adapter | |
| Temperature Details:Touch screen working temperature:-41°C ~70°C, | ||
| Storage Temperature:-50°C ~85°C;The machine operating temperature:-4~65°C,Storage Temperature:-7~65°C. | ||
| Features | ||
| 1.Build-in High Quality speakers Stereo 2pcs x 5W. | ||
| 2.Build-in Mini-PC; It is optional for i3/i5/i7 . | ||
| 3.Adopts IR multipoint Touch Screen. | ||

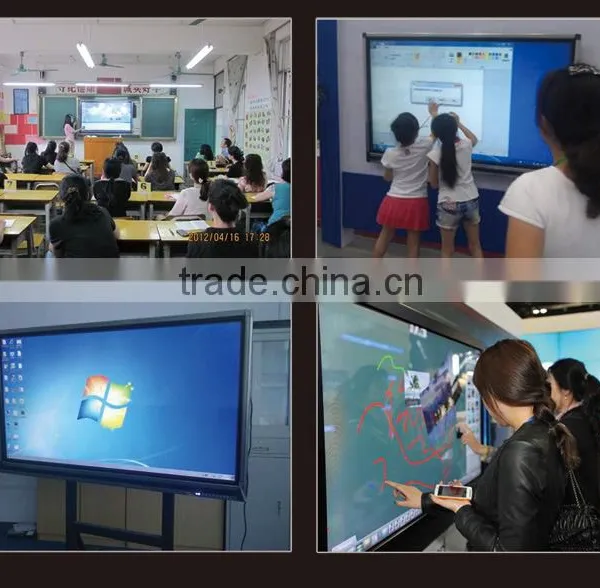

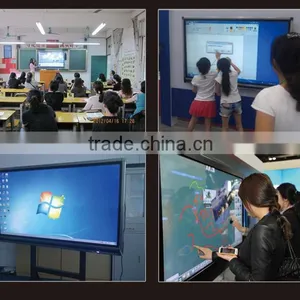

| 4.Application fields:public places ,for example,shopping mall, restaurant,airport, square,commercial buildings,etc. | ||
| 5.Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation. | ||
| 6.Easy WIFI network system installation without the need for extra IT, firewall or security configurations. | ||
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
Shenzhen USER Special Display Technologies Co., Ltd. established in 2003, is a high-tech enterprise specialized in development, production and marketing of the special displays. The company can customize special displays of 5-82 inches according to customer need. Headquarter is at Bao’an Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system in china.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
USER’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $323,000 ( Still rising )
8, Warranty (1-3 year)
