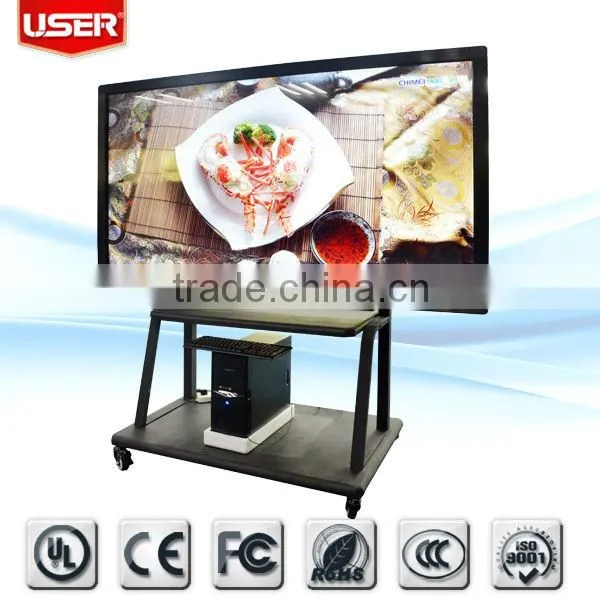

84 Inch Ultra HD Multimedia Kiosk

84 Inch Ultra HD Multimedia Kiosk photo-1
US$ 2,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
USER
Model Number:
US-T8401PC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name USER
Model Number US-T8401PC

Specifications

84 Inch Ultra HD Multimedia Kiosk
Size:84inch
Teach White Board
Meeting Room White board

84 Inch Ultra HD Multimedia Kiosk



Support 4K Ultra HD resolution!



1.Mobile rack with wheel is optional!

2. System: Windows/Linux

3. Interface: HDMI/VGA/USB



Specifications
Specification model
Model No. US-T8401P
Panel size 84"TFT-LCD
Display area(mm)/mode 1860.48(H)×1046.52mm  16:9
Maximum resolution 3840*2160
Display color 16.7M
Pixel Pitch(mm) 0.94(H)×0.94(V)
Brightness (nits) 450cd
Contrast  '3000:1
Visual angle  178°/178°
Response time 5ms
Horizontal frequency 30-75KHZ
Vertical frequency 56-75KHZ
Life(hrs) 60,000(hrs)
Input and output
Composite video input 3 (BNC×3)
YPbPr input 1 (BNC×3)
S-video 2 (BNCx2)
VGA 1
DVI 1
HDMI 1
Composite video output 2 (BNCx2)
Video
Color system PAL/NTSC/SECAM
Compatible HDMI input/DVI 480P,576P,720P,1080I,1080P
3D Comb filter Yes
Video reduction noise Yes
OSD display( screen menu display)
Menu language Chinese/English
Power
Power supply AC100V~240V,50/60Hz
Maximum power consumption 1080W
Standby power consumption 3W
Temperature
Working temperature 0°C~50°C
Storage temperature -20°C~60°C
Working humidity 10%~90%
Storage humidity 10%~90%
Appearance
Body dimension(Lx W x H)mm 1908.6mm×1113.6mm×157.5mm
Panel color/appearance White,black,customized
Case Material Metal
Net weight 85kg
Installation Wall-mounted/floor standing
Sample Lead time 5-12working days
Bulk Order Lead time 5-20working days
Payment Terms T/T / Western union
Warranty 1year
Ultra HD LED TV Parameter Description
1. With aluminum frame as the surface without sharp edges or protrusions
2. Power: AC 220V ± 20%, 100 ~ 240V wide voltage input to ensure the stability of equipment operation
3. Physical resolution 3840 x 2160 to meet requirements of Ultra HD
4. LED screen lifetime is not less than 50,000 hours; viewing angle 176 °; Picture Mode: 16:9/Full; Brightness 400cd/m2
5. Input interface: 1*VGA; 1*AV; 1*S-Video; 1*YPbPr; 3*HDMI; 2*TV; 2*USB; 1*headphone; 1*RF;
6. TV function support PAL, SECAM.
7.Support USB playback pictures and audio/video files. Supported file format: JPG, BMP, MPEG1, 2,3,4, RMVB, MP3, etc.
8. Boot screen can be customized; With child lock function, key functions can be shielded by setting of remote control
9. Built-in 2 speaker boxes (Each speaker box with 1 tweeter and 1 woofer); Consumption: 4*10W
10. Can be connected to external projector equipment to achieve mirroring; Computer with VGA, HDMI ports can be connected.
11. Automatic standby power saving feature. In case there is no operation in a few minutes, TV will automatically shut down.
