Home > Consumer Electronics > Display & Accessories > LCD Display > 47inch Interactive Touchscreen All-in-one Monitor
47inch Interactive Touchscreen All-in-one Monitor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Laptop
Screen Size:
Other, 47inch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
42inch 1080P IR Touch Screen MonitorUS$ 1,000 - 5,000MOQ: 1 Piece -
82inch LCD Touch Screen Monitor, LED Touch Screen Monitor, Lcd All-in-one PCNegotiableMOQ: 1 Piece
-
LCD Monitor With Touch Screen 32-37-42-46-47-52-55-70-82inchUS$ 1,500 - 1,600MOQ: 1 Piece
-
Monitor With Touch Screen 47inchUS$ 1,000 - 3,000MOQ: 1 Piece
-
55/65inch Portable Interactive Board Advertising DisplayNegotiableMOQ: 1 Set
Products Status
Stock
Application
Laptop
Screen Size
Other, 47inch
Response Time
8ms
Brightness
500cd/m
Interface Type
DVI, HDMI, RS232C, S-Video, TV-out, YPBPR
Contrast Ratio
Other, 1200:1
Resolution
1920 x 1080
Widescreen
Yes
Panel Type
TFT
Pixel Pitch
0.264
Brand Name
USER
Model Number
US-T4701PC
Place of Origin
Guangdong, China
Specifications

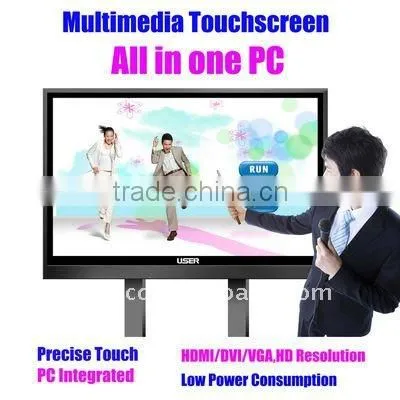

47inch TFT-LCD PanelMultimedia Touchscreen
All-in-one PC integrated
1920x1080 HD Resolution,1200:1,500nits
Specification
| Model No. | US-T3201HC | |||||||||
| Panel size | 47“ TFT-LCD | |||||||||
| Display area(mm)/mode | 1044x588 16:9 | |||||||||
| Maximum resolution | 1920x1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.543(H)×0.543(V) | |||||||||
| Brightness (nits) | 500cd/m2 | |||||||||
| Contrast | 1200:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 50-70KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
Touch Panel
| Specification | Infrared touch screen | |||||||||
| Positioning | ±2mms | |||||||||
| Accuracy | ||||||||||
| Transmittance | >=92% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | double point, multipoint(optional) | |||||||||
| Response time | <=10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time | Single point of more than 60 million | |||||||||
Input and output
| Composite video input | 3(BNC×3) | |||||||||
| YUV Input | 1 (BNC×3) | |||||||||
| S-video | 1(BNC X2) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | 2(BNC×2) | |||||||||
| L/R Audio input | 1 (RCAx2) | |||||||||
| L/R Audio output | 1 (RCAx2) | |||||||||
| USB2.0/Serial/SP2 input | 2(for touch screen use) | |||||||||
Video
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
OSD display( screen menu display)
| Menu language | Chinese/English( multiple language option required) | |||||||||
Computer
| Main chipset | Intel G41+ICH7 | |||||||||
| Main board | ONDA G41 | |||||||||
| CPU | Intel Pentium Dual E5500 (2.8G) | |||||||||
| System bus frequency | 800/1066/1333 MHz | |||||||||
| Graphics card | Integrated IntelGMX 4500 | |||||||||
| Audio card | Integrated AC97 | |||||||||
| Network card | Integrated 10/100/1000M adaptive | |||||||||
| Memory | 2G DDRIII (max 4G) | |||||||||
| Hard Disk | 320G SATA | |||||||||
| Operation system | Windows 7 | |||||||||
Power
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=55W | |||||||||
| Standby power consumption | <=1W | |||||||||
Temperature
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
Appearance
| Body dimension(Lx W x H)mm | 1109.6x660x119.7mm | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | SPCC/Aluminum/Customized | |||||||||
| Installation | Wall-mounted(default), desktop | |||||||||
| Certificate | CE/FCC/3C/RoHS | |||||||||
| Accessories | Manual,remote control, data line1.5 M, power line 1.8 M | |||||||||
| Payment | T/T or Western union | |||||||||
