Specifications
*Samsung,LG,AU original lcd panel*3G/WIFI/LAN Network optional
*USER brand
*CE, FCC,UL,ROHS,ISO9001
advertising player

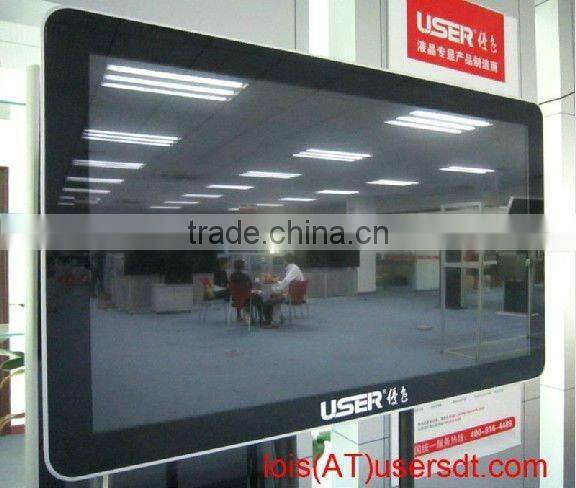

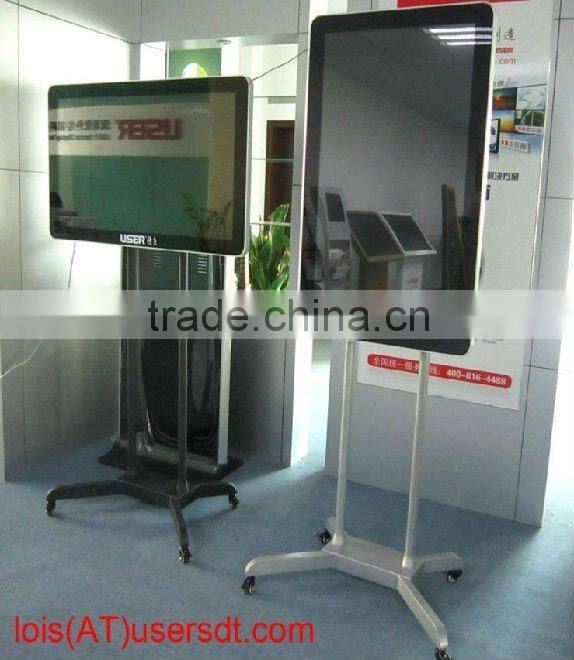

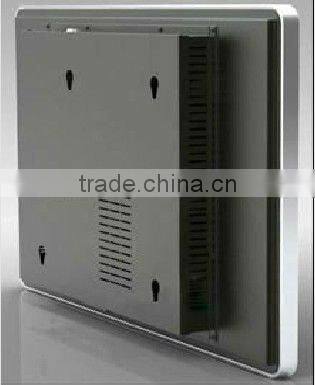

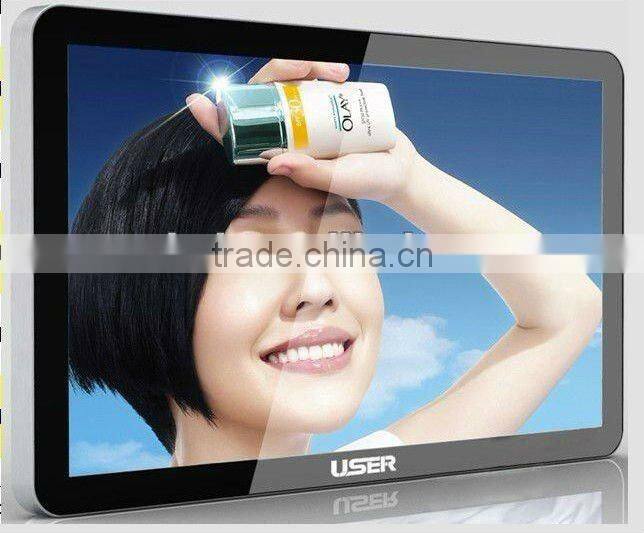

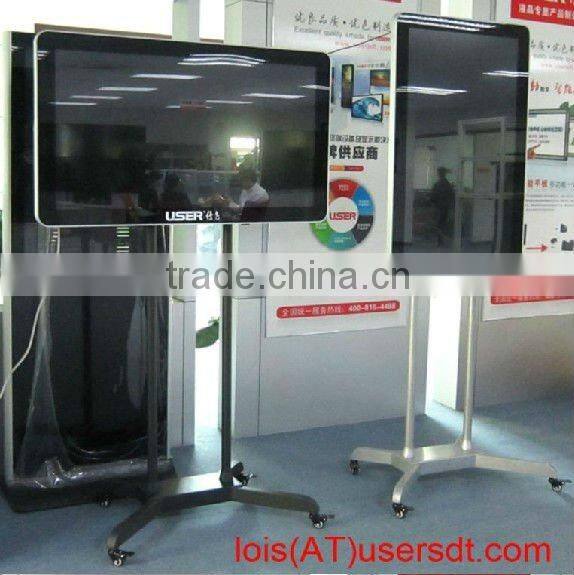

Ipad design lcd advertising player monitor,digital signage
| Specifications | ||||||||||
| Model No. | US-AD420LY | |||||||||
| Panel size | 42″TFT-LCD | |||||||||
| Display area(mm)/mode | 930(W)×523(H) 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.48(H)×0.48(V) | |||||||||
| Brightness (nits) | 500 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 1(BNC×3) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC×3) | |||||||||
| S-video | 1(BNC×2) | |||||||||
| HDMI | 1 | |||||||||
| Composite video loop output | 1 | |||||||||
| L/R audio input | 1 ( RCA*2) | |||||||||
| L/R audio output | 1 ( RCA*2) | |||||||||
| Speaker | 2×5W(9Ω) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | Special | |||||||||
| Ads input interfaces | ||||||||||
| USB | 1 ( USB2.0 interface) | |||||||||
| SD | 1 (Compatible MMC/MS) | |||||||||
| CF | 1 | |||||||||
| RJ45 | Included(Network version only) | |||||||||
| 3G WIFI Module | Included(Network version only) | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | 220W | |||||||||
| Standby power consumption | <5W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 85% | |||||||||
| Storage humidity | 85% | |||||||||
| Appearance | ||||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||

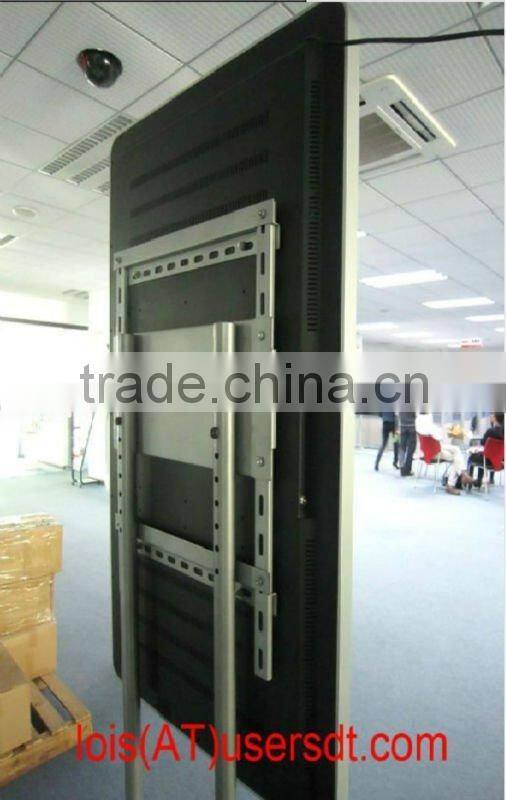

| Installation | wall-mounted or rack mounted | |||||||||
| Detail Features | ||||||||||
| Video format:MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | ||||||||||
| Audio format:Wave/MP3/WMA/AAC | ||||||||||
| Image format:JPEG/BMP/TIFF/PNG/GIF | ||||||||||
| Image resolution:480P/720P | ||||||||||
|
Play mode:Power on, single card auto loop play;classified files auto loop play; multi cards auto loop display etc | ||||||||||
| Time:year/month/day/week/h/m/s, in the top right corner (open and close optional) | ||||||||||
| Timing open & close:Per day 5 times, 7 days a week, free time | ||||||||||
| Timing play:7 days a week, free set the play program everyday | ||||||||||
| Alarm clock:Set 5 alarms one day, once ring the alarm, play the specified program | ||||||||||
| OTG:Support copy, delete, remove, rename, build new file among different cards | ||||||||||
| Running subtitle:Can set the play location, word size, color and back-color | ||||||||||
| Log files:Record the play time (concise to second), the play contents | ||||||||||
|
Angle subscript display function:Can set the play time, just support BMP picture with biggest resolution 160*90 | ||||||||||
|
Memory function:Power off, memory the time of the play; power on, play from the time, not from beginning | ||||||||||
| Key and lock function:Use the remote controller before input the keyword | ||||||||||
| Encrypt CF card:Play the contents in the CF card before input the keyword | ||||||||||
| Sound volume:Can set the volume of sound in the different time | ||||||||||
| Storage card lock:Have a anti-theft lock in the case, equip 2 sets key | ||||||||||
| Other function:Customized | ||||||||||
| Upgrade software:Just put the upgrade file in the storage cards |
1.Established in 2003, Shenzhen User Special Display Technologies Co., Ltd is a high tech enterprise, specializing in development, production and marketing of special displays. The company can customize special displays of 5~82 inches according to customer need. Headquarter is in Bao'an District, Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system.
2.As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
3.USER's products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc., providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
4.Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
