Specifications
* display lcd* Size: 15" 17"19"22"26"42"46"55"...
* Wall-mounting
* CE, FCC, CCC, UL, Rohs, ISO9001
*USER famous brand

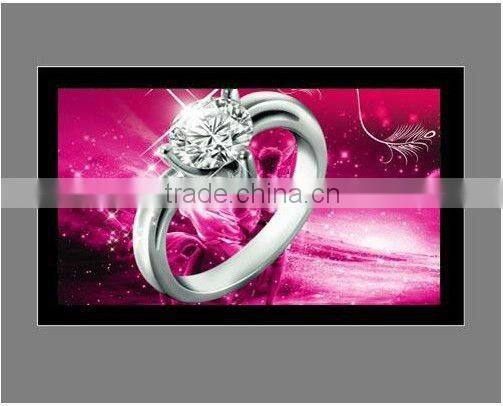

Product name: 22" Wall mounting LCD Media Player display lcd
Product features
"1.With DMP, the 4G Digital Multimedia Processor technology;
2.With super visual effects;
3. Ultra-high-fidelity sound,Stereo effect;
4. -Ultra-thin metal case, nice appearance;
- Industrial-grade fine baking varnish surface,well-distributed;
- Waterproof,rustproof,dirtproof and abrasion-proof;
5. With complete and reliable software function;
6. Anti-theft function
7. Widely used in the bus, building and lift room, supermarket, pubic places, train etc
8. Support WIFI function"
Model No. US-AD220IWL
Panel 22″TFT-LCD (LED back-light)
Display area(mm)/mode 496(W)×298(H) 16:9
Maximum resolution 1680*1050
Display color 16.7M
Pixel Pitch(mm) 0.282(H)×0.282(V)
Brightness (nits) 450cd/m2
Contrast 1000:1
Visual angle 178°/178°
Response time 5ms
Life(hrs) >60,000(hrs)
Input and output
Composite video input Optional
Y,Pb,Pr/Y,Cb,Cr input Optional
S-video Optional
HDMI Optional
Composite video loop output Optional
L/R audio input Optional
L/R audio output Optional
Speaker 2×5W(9Ω)
Video
Color system PAL/NTSC/SECAM
Remote controller Special
Ads input interfaces
USB 1 ( For 3G Wi-Fi)
RJ45 Network Interface
CF 1 (Built-in 4G CF card)
OSD display( screen menu display)
Menu language Chinese/English( multiple language option )
Power
Power supply AC100~240V 50 /60 HZ
Maximum power consumption ≤80W
Standby power consumption <5W
Temperature
Working temperature 0°C~50°C
Storage temperature -20°C~60°C
Working humidity 85%
Storage humidity 85%
Appearance
Panel color/appearance White, black, customized
Panel material Metal case SPCC
Installation Wall-mounted
Function
Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Audio format Wave/MP3/WMA/AAC
Image format JPEG/BMP/TIFF/PNG/GIF
Image resolution 480P/720P
Split screen display Editable
Running subtitle Location, word size, color and backlight are editable
Other Customized
USER Recognitions and awards
1.2011 November-“Top 10 Gold Level vendors for LCD solution in China”
2.2011 June – CCTV Security Development Data Collection Unit
3.2011 Jan – The products series are certified to UL
4.2010 April – CCTV Security award recognized by Shenzhen deputy mayor
5.2010 November – Monitoring solution integration patent qualification
6.2010 August - The most influential CCTV Security brand in China
7.2009 June – The top 10 China CCTV security brand
8.2008 November – Top 100 China CCTV security enterprise
9.2008 October – Trusted Enterprise for CCTV Security solution provider in China
10.2008 October – Most Competitive CCTV security brand in China
