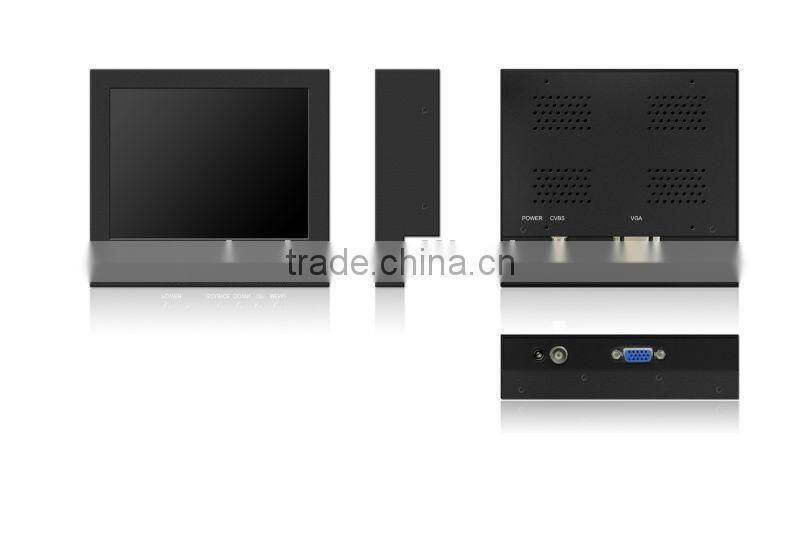

5/7/8/10.4/15/17/19/22/32/42/55 Professional LCD Monitor
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
USER
Model Number:
US-M5001P
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
52 Inch Touchscreen Monitor( Infrared)NegotiableMOQ: 1 Piece -
19/22/32 Inch LCD Horizontal Advertising MonitorNegotiableMOQ: 1 Piece
-
10.4 Inch CCTV LCD MonitorUS$ 100 - 150MOQ: 50 Pieces
-
37 Inch LCD CCTV Monitor (professional)US$ 500 - 600MOQ: 1 Piece
-
52 Inch CCTV LCD MonitorUS$ 1,300 - 1,400MOQ: 10 Pieces
Place of Origin
China
Brand Name
USER
Model Number
US-M5001P
Specifications
professional lcd monitorprofessional cctv monitor
lcd cctv monitor
high contrast,high brightness,wide viewing angle
| Specifications | ||||||||||
| Model No. | US-M0501P | |||||||||
| Panel size | 5" TFT-LCD | |||||||||
| Display area(mm)/mode | 102(W)×77(H) 4:3 | |||||||||
| Maximum resolution | 640×480 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.053(H)×0.159(V) | |||||||||
| Brightness (nits) | 300cd/m2 | |||||||||
| Contrast | 500:1 | |||||||||
| Visual angle | 150°/140° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 1(BNC×1) | |||||||||
| VGA | 1 | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | DC12V 2A | |||||||||
| Maximum power consumption | 10W | |||||||||
| Standby power consumption | <1W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10%~90% | |||||||||
| Storage humidity | 10%~90% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 123×112×33mm | |||||||||
| Panel color/appearance | White,Black,Customized | |||||||||
| Case Material | Metal case | |||||||||
| Net weight | 0.5kg | |||||||||
| Installation | Wall-mounted,Desktop(optional) | |||||||||
