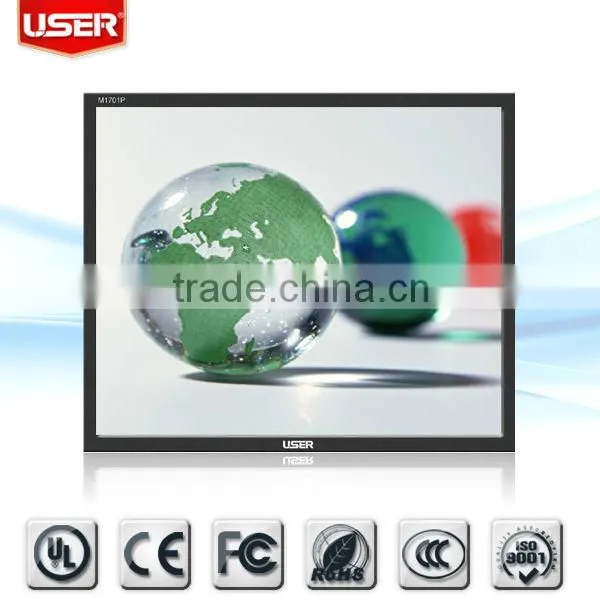

CE,RoHS,FCC,UL Certificated 19 Inch Bnc Cctv Monitor

Specifications

19 inch bnc cctv monitor
Special design for CCTV monitoring
Good quality and moderate price
OEM/ODM available
CE,RoHS,FCC,UL

19 inch bnc cctv monitor



Product NO                   US-M1901P
Screen                          19" TFT LCD

Display area                 379(W) x 304(H) (mm)
Resolution                   1280 x 1024
Aspect Ratio                 4:3
Contrast Ratio              1000:1
Number of Colors         16.7M
Brightness                    450cd/m2
Viewing Angle              170°/170°
Pixel Pitch                      0.294(H) x 0.294(V) (mm)
Response Time (GTG)          5 ms (Typical)
Horizontal frequency              31-68KHZ
Vertical frequency                   56-75KHZ
Surface Treatment                Anti-Glare
Color system                         PAL/NTSC/SECAM
Composite video input         2(BNC×2)
Y Pb Pr/Y Cb Cr input            3 (BNC×3)
S-video                                  1(optional)
D-15 pin RGB input               1
HDMI /DVI                              1 (optional)
Composite video output          1(BNCx1)
Working temperature           0°C~50°C
 Storage temperature       -10°C~60°C
 Working humidity                20%~80%
 Storage humidity                 5%~95%

Language                            Chinese, English
Color                                    black (customized)
Dimension                        398.8L×326.8W×66D (mm)
Installation                            wall-mounted,desktop

Life                                      no less than 60,000 hours
Voltage                                AC100V ~ 240V, 50/60Hz
On Mode (Average)                 45W (Max)
Standby Mode                     <3W (Max)
