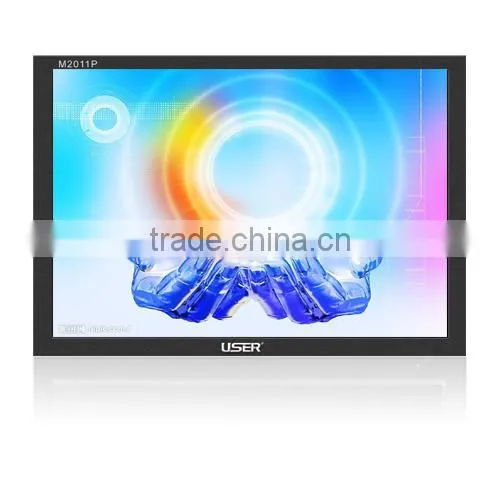

Home > Consumer Electronics > Display & Accessories > LCD Display > 20'' CCTV LCD Monitor(professional)
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, CCTV MONITOR
Screen Size:
Other, 20"
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Products Status
Stock
Application
Other, CCTV MONITOR
Screen Size
Other, 20"
Response Time
8ms
Specifications
Lastest anti-glare designSlim and lightweight design
High-contrast, high brightness
With automatic elimination of blur funct
Product feature:
Lastest anti-glare design
Slim and lightweight design
High-contrast, high brightness
With automatic elimination of blur function
16.7M colors, the screen is more natural, delicate.
8ms response time, screen non-tailing.
Multi-level menu display function
Built-in anti-glare glass screen
Adopt 3D digitial processing circuit
Rich docking feature (AV1/AV2-Video/YPbPr/VGA/HDMI)
Using metal case, no radiation
| Specification model | US-M2001P | |||||||||
| Panel size | 20″TFT-LCD | |||||||||
| Display area(mm)/mode | 411.0(W)×309(H) 4:3 | |||||||||
| Maximum resolution | 1600x1200 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.258(H)×0.258(V) | |||||||||
| Brightness (nits) | 500cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 170°/170° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 2 (BNC×2) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC×3) | |||||||||
| S-video | 1 | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| DVI/HDMI | 1 (option) | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( multiple language option required) | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=50W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0~50 celsious | |||||||||
| Storage temperature | -20~60 celsious | |||||||||
| Working humidity | 60% | |||||||||
| Storage humidity | 60% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 435.0×341.0×71 | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | steel | |||||||||
| Installation | Embedded, wall-mounted, rack-mounted, desktop | |||||||||
