3 Roll CNC Plate rolling machine, Hydraulic rolling machine,Roll bending machine W11S-12x2000
- 100 Set / Sets per Month
- SHANGHAI
- T/T PayPal
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SC |
Model Number: | SW11SNC-60X2500 | Machine Type: | Roller-Bending Machine | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Carbon Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | End Forming | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

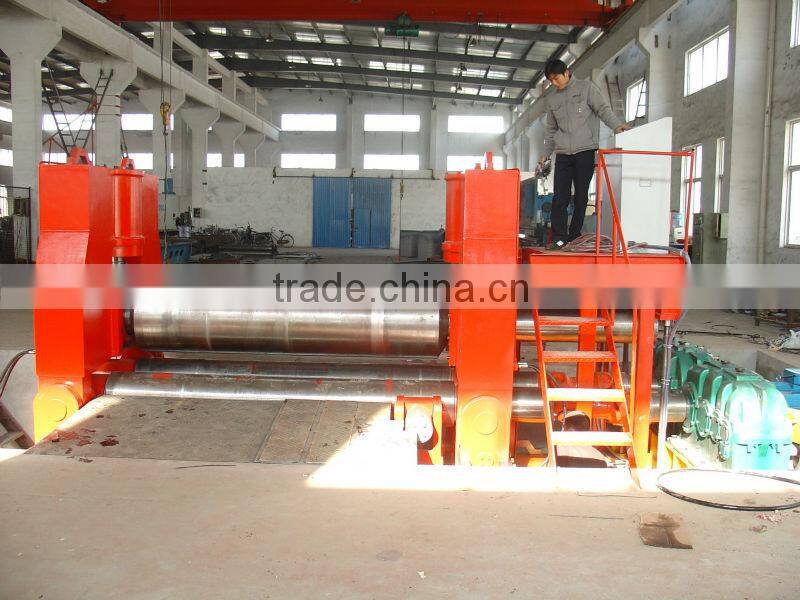

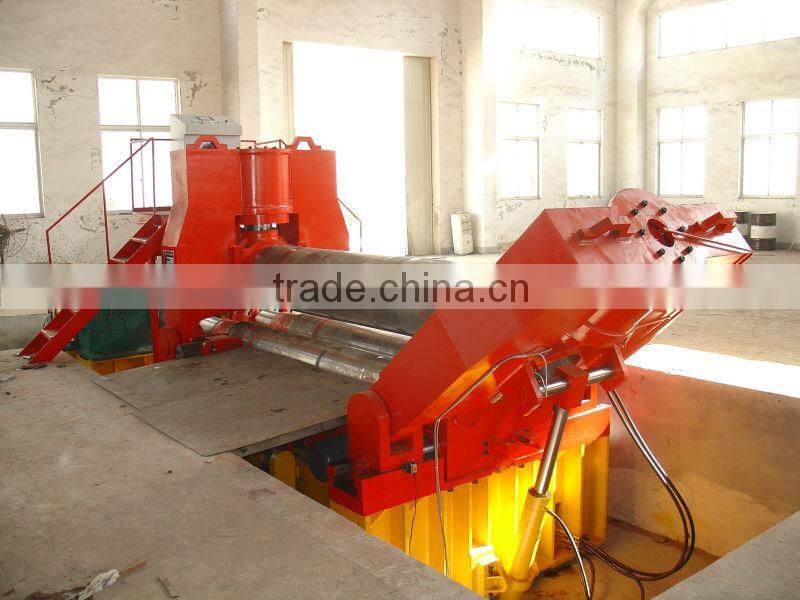

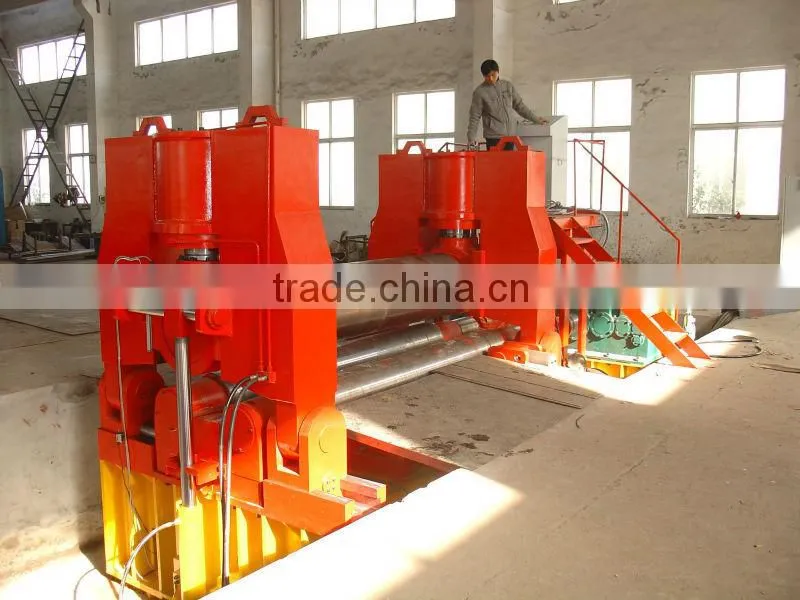

3 Roll CNC Plate rolling machine, Hydraulic rolling machine,Roll bending machine W11S-12x2000
Mechanical level down 3 roller rolling machine Struct function
The top roller can move horizontally and lift, the top roller lift for changing curvature of plate, horizontal move for symmetry of top roller and two bottom rollers axes line vertical surface, realize technics requirement of plate end bend and other bend, there is no need of pressure machine in manufacture. The machine can finish two end of plate pre-bend and shape and straighten at the same time without return. IT is the NC machine.
Feature and advantage:
High precision end pre-bending
Setting length of vertical side freely,add press on upper roller for pre-bending,finishing high precision pre-bending.
High precision work piece
Upper roller is drum type,bottom rollers balance for cooperating adjustment,continual bend,which is used for sheet and thick plate.
Various bend shape
It can roll O,U,R type work piece and stated taper through assistant taper device.O type bend:back bend method;U type bend:front bend method;R bend:Combinations bend method
Technical parameter:
Specification | SW11SNC-60X2500 | |
Max plate Thickness (mm) | 60 | |
Max Pre-Bending thickness (mm) | 50 | |
Max plate Width (mm) | 2500 | |
Upper roller pressure (ton) | 610 | |
Min diameter of Max plate Thickness (mm) | 2000 | |
Upper Roller Diameter (mm) | 650 | |
Bottom roller diameter (mm) | 380 | |
Two Bottom rollers center space (mm) | 700 | |
Motor power (KW) | Roller rotate | 75 |
Hydraulic system | 30 | |
Bottom roller move | 15 | |
Weight (ton) |
| |
Dimension L*W*H (mm) | 7200x2900x3800 |

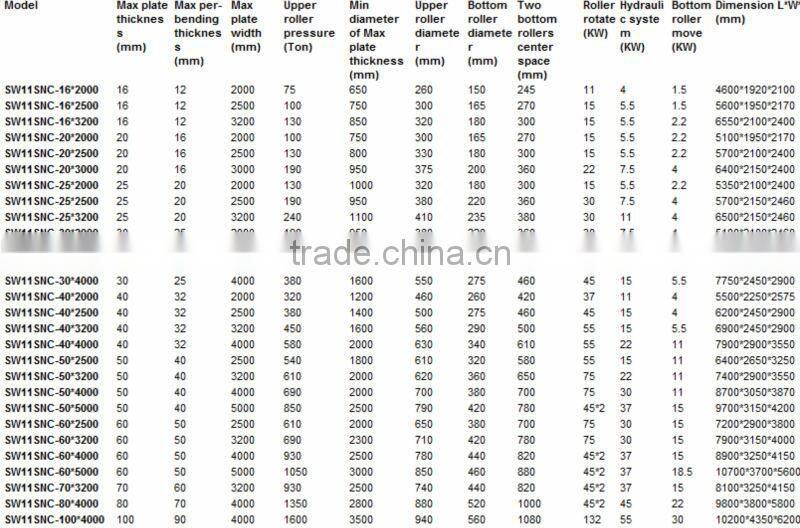

Hydraulic Rolling Machine SW11SNC series Technical parameter
