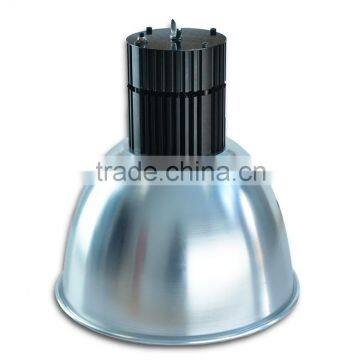

Help Center150W LED High Bay _O
Related Products
Industry Plant, Warehouse, Gym, Railway/Bus/Toll Station, Freight Yard, Super Market, Mall, Dock, Exhibition Hall
Heat Sink
CAS' State 863 Program Fruit--Microgrooves Combined Phase-change Cooling Tech:
- Strong heat extraction capacity, heat flux density up to 400W/cm2, LED P-N junction temperature rise<40℃
- Excellent temperature uniformity, temperature difference of the surface <±2°C
- Less weight, 50% lighter than conventional heat sink
- Eco-friendly phase-change working medium, lifespan > 10 years
Power Supply
- CAS' Integrated Asymmetric Heat Dissipation Structure, good heat dissipation
- Inner: Low temperature, promoting thermal stability of the item;
- High efficiency >90% ; PF >0.9
- Multi-protection recovery function
Light Source
- High-power COB package, high heat conduction, low light decaying, long lifespan;
- Good optical properties: Close to point lite, easy for second light distribution;
- No-glare design: No shadow blur phenomenon.
Optical Design
- CAS' Integrated Lens Reflection Cup Non-imaging Optical Design Tech: Reduce glare and increase releasing light efficiency, providing a comfortable lighting environment;
- Precision optional beam angle: 30°, 45°, 60°, 120°, meeting various application requirements in different sites, and available with customized light pattern
Advantages
- Based on aerodynamic principles, compact, heat sink and power driver are isolated convective heat channel superposition structure, not only distract their own heat quantity, but also ensure air flow max, promote greatly heat dissipation ability, decrease the temperature of light source and power driver, ensure low light failure of light source, increase power driver more reliable, extend the lamp’s lifespan.
- High luminous efficiency light source with COB package, high luminous light distribution and power driver with high conversion rate, 100% higher luminous efficiency than metal halide lamps’ and 20% higher than normal led high bay lights’
- Surface electrostatic sprayed, dust proof, corrosion proof, easy for installation and disassembling
LED High Bay | |||||||||||
Model |
Watts(W) |
LED |
Input Voltage(V) |
Luminous Flux(lm) |
Color Temperature(K) |
CRI |
PF(AC 220V) |
Dimension(mm) |
Weight (kg) |
Material |
Lifespan(h) |
CD-HL240-200 |
200 |
COB |
AC 220~240 |
>20000 |
2700-6500 |
>70 |
>0.95 |
Φ422*490 |
5.9 |
Aluminum+Glass Lens |
>35000 |
Remark: All the above tested data deviation:±10%. | |||||||||||
Power Consumption Contrasts | ||
Item |
Cedar LED High Bay Light |
Conventional Metal Halide Lamp |
Watts(W) |
200 |
400 |
Lifespan(h) |
50000 |
20000 |
Power Consumption/Year(KWH) |
1752 |
3504 |
Remark: The above data was calculated by lamps lit 7*24. | ||
| Basic Info | Items | High Bay | High Bay | High Bay |
| Model | CD-HL160-100 | CD-HL240-150 | CD-HL240-200 | |
| Aspect | Material | Aluminum+Lens | Aluminum+Lens | Aluminum+Lens |
| Body Color | Silver Black | Silver Black | Silver Black | |
| Dimension | D422*H500 | D422*H480 | D422*H490 | |
| Electrical | Watts(W) | 100 | 150 | 200 |
| Input Voltage(V) | AC 220~240 | AC 220~240 | AC 220~240 | |
| Frequency | 50~60Hz | 50~60Hz | 50~60Hz | |
| Power Mode | Internal | Internal | Internal | |
| Power Factor | >0.95 | >0.95 | >0.95 | |
| Power Efficiency | >88% | >88% | >90% | |
| Optical | LED Brand | Hongli | Hongli | Citizen |
| LED Type | COB | COB | COB | |
| LED Qty.(pcs) | 1 | 1 | 1 | |
| Luminous Flux(lm) | 10000 | 15000 | 20000 | |
| CCT(K) | 2700~6500 | 2700~6500 | 2700~6500 | |
| Light Color | Cold,Natural,Warm | Cold,Natural,Warm | Cold,Natural,Warm | |
| CRI(Ra) | >70 | >70 | >70 | |
| Beam Angle(°) | 65° | 65° | 65° | |
| Dimmable | Unavailable | Unavailable | Unavailable | |
| Application | Mounting Size(mm) | / | / | / |
| Socket | / | / | / | |
| Install Mode | Suspended | Suspended | Suspended | |
| Operation Temperature(℃) | -20℃~40℃ | -20℃~40℃ | -20℃~40℃ | |
| Operation Hummidity(RH) | 20%RH-90%RH | 20%RH-90%RH | 20%RH-90%RH | |
| Storage Temperatures(℃) | -40°~80° | -40°~80° | -40°~80° | |
| Lifetime(hrs) | >35000 | >35000 | >35000 | |
| Protection | Ingress Proctection | IP40 | IP40 | IP40 |
| Waterproof | / | / | / | |
| Energy Saving | 50% | 50% | 50% | |
| Constrasted to | 250W MH | 400W MH | 400W MH |
